Scroll oil less air compressor low nose scroll air compressor good working scroll air compressor
Scroll oil less air compressor low nose scroll air compressor good working scroll air compressor
Scroll oil less air compressor low nose scroll air compressor good working scroll air compressor
Scroll oil less air compressor low nose scroll air compressor good working scroll air compressor
Scroll oil less air compressor low nose scroll air compressor good working scroll air compressor
Scroll oil less air compressor low nose scroll air compressor good working scroll air compressor
Scroll oil less air compressor low nose scroll air compressor good working scroll air compressor
Scroll oil less air compressor low nose scroll air compressor good working scroll air compressor
Scroll oil less air compressor low nose scroll air compressor good working scroll air compressor
Scroll oil less air compressor low nose scroll air compressor good working scroll air compressor
Scroll oil less air compressor low nose scroll air compressor good working scroll air compressor
Scroll oil less air compressor low nose scroll air compressor good working scroll air compressor
Specifications
Brand Name :
Royal
Certification :
CE
Place of Origin :
Shanghai
MOQ :
1
Price :
usd1800/unit
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000units per month
Delivery Time :
15 days
Packaging Details :
plywood case
name :
scroll oil free air compressor
type :
scroll
lubrication :
oil free
Description

Scroll oil free air compressors

  • 3.7kw scroll airend, 5.5kw scroll airend
  • 8bar 10bar
  • LCD controller screen display

3.7kw oil free scroll air compressor paramters:

  • M-3.7/08-A1
  • Air capacity:0.4m³/min
  • Outlet pressure:0.8Mpa
  • Voltage:380v/50hz
  • Power:3.7kw
  • Noise:55±2dB
  • Speed:3200rpm
  • Weight:200kg
  • Dimension:810*690*880mm
  • Outlet connect:3/4”
  • Scroll oil less air compressor low nose scroll air compressor good working scroll air compressor

3.7kw oil free scroll air compressor with tank

  • MT-3.7/08-A1
  • Air capacity:0.4m³/min
  • Outlet pressure:0.8Mpa
  • Voltage:380v/50hz
  • Power:3.7kw
  • Noise:55±2dB
  • Speed:3200rpm
  • Weight:250kg
  • Dimension:1530*690*1450mm
  • Outlet connect:3/4”
  • Scroll oil less air compressor low nose scroll air compressor good working scroll air compressor

3.7kw oil free scroll air compressor with tank and dryer:

  • MT-3.7/08-A1
  • Airend Qty:1
  • Air capacity:0.4m³/min
  • Outlet pressure:0.8Mpa
  • Voltage:380v/50hz
  • Power:3.7kw
  • Noise level: 55±2dB
  • Speed:3200rpm
  • Weight:250kg
  • Dimension:1530*690*1450mm
  • Outlet connect:3/4”
  • Scroll oil less air compressor low nose scroll air compressor good working scroll air compressor

7.5kw oil free scroll air compressor parameters:

  • M-7.5/08-A2
  • Airend Qty: 2
  • Air capacity:0.8m³/min
  • Outlet pressure:0.8Mpa
  • Voltage:380v/50hz
  • Power:7.5kw
  • Noise level: 60±2dB
  • Speed:3200rpm
  • Weight:400kg
  • Dimension: 1130*960*1140mm
  • Outlet connect:3/4”
  • Scroll oil less air compressor low nose scroll air compressor good working scroll air compressor

5.5kw oil free scroll air compressor paramters

  • M-5.5/08-S1
  • Airend Qty:1
  • Air capacity:0.6m³/min
  • Outlet pressure:0.8Mpa
  • Voltage:380v/50hz
  • Power:5.5kw
  • Noise level: 55±2dB
  • Speed:3200rpm
  • Weight:220kg
  • Dimension: 810*690*880mm
  • Outlet connect:3/4”
  • Scroll oil less air compressor low nose scroll air compressor good working scroll air compressor

11kw oil free scroll air compressor parameters

  • M-11/08-S2
  • Airend Qty: 5.5kw*2
  • Air capacity: 1.2m³/min
  • Outlet pressure:0.8Mpa
  • Voltage:380v/50hz
  • Power:11kw
  • Noise level: 60±2dB
  • Speed:3200rpm
  • Weight:440kg
  • Dimension:1130*960*1140mm
  • Outlet connect:3/4”
  • Scroll oil less air compressor low nose scroll air compressor good working scroll air compressor

22kw scroll oil free air compressor parameters:

  • M-22/08-S4
  • Airend Qty: 5.5kw*4
  • Air capacity: 2.4m³/min
  • Outlet pressure:0.8Mpa
  • Voltage:380v/50hz
  • Power:22kw
  • Noise level: 65±2dB
  • Speed:3200rpm
  • Weight:820kg
  • Dimension:1600*1250*1240mm
  • Outlet connect: 1”
  • Scroll oil less air compressor low nose scroll air compressor good working scroll air compressor

Explosion view photo of oil free scroll airend:

Scroll oil less air compressor low nose scroll air compressor good working scroll air compressor

  • The suited working environm ent for oil-free scroll com pressor
  • Medical and dental environment.
  • Required high quality air, no oil, no impurity.
  • Low noise, after-treatment equipment is unnecessary.
  • Scroll oil less air compressor low nose scroll air compressor good working scroll air compressor

Scroll Compression Principle
  • Oil-Free Drain
  • High-precision processing technology is required to produce the components that make up a Scroll Compressor.
  • We have developed new Scroll Air-Ends thanks to the experience and know-how we have accumulated over the past 15 years.
  • As the orbiting scroll goes from No.1 to No.4 position, the size of the symmetrical crescent-shaped compression chambers is gradually reduced, compressing the air contained within . This is then discharged through the central exhaust port.
  • Scroll oil less air compressor low nose scroll air compressor good working scroll air compressor

General paramters of our scroll oil free air compressor

Model No. Air flow Power Pressure Airend qty. Voltage Phase Remark
m3/min kw Mpa unit v/hz /
MS-3/08-A1 0.3/0.2 3 0.8/1.0 1*3 220/50 single /
M-3.7/08-A1 0.4/0.3 3.7 0.8/1.0 1*3.7 380/50 3-pahse /
MT-3.7/08-A1 0.4/0.3 3.7 0.8/1.0 1*3.7 380/50 3-pahse Tank mounted 200L
M-7.5/08-A2 0.8/0.6 7.5 0.8/1.0 2*3.7 380/50 3-pahse /
M-5.5/08-S1 0.6/0.4 5.5 0.8/1.0 1*5.5 380/50 3-pahse /
MTI-5.5/08-S1 0.6/0.4 5.5 0.8/1.0 1*5.5 380/50 3-pahse Tank inside 100L
MT-5.5/08-S1 0.6/0.4 5.5 0.8/1.0 1*5.5 380/50 3-pahse Tank mounted 200L
M-11/08-S2 1.2/0.8 11 0.8/1.0 2*5.5 380/50 3-pahse /
MTI-11/08-S2 1.2/0.8 11 0.8/1.0 2*5.5 380/50 3-pahse Tank inside 200L
M-16/08-S3 1.8/1.2 16 0.8/1.0 3*5.5 380/50 3-pahse /
M-22/08-S4 2.4/1.6 22 0.8/1.0 4*5.5 380/50 3-pahse /
M-27/08-S5 3.0/2.0 27 0.8/1.0 5*5.5 380/50 3-pahse Tank inside 20L
M-33/08-S6 3.6/2.4 33 0.8/1.0 6*5.5 380/50 3-pahse /
M-38/0.8-S7 4.2/2.8 38 0.8/1.0 7*5.5 380/50 3-pahse Tank inside 20L
M-44/08-S8 4.8/3.2 44 0.8/1.0 8*5.5 380/50 3-pahse /
M-49/08-S9 5.4/3.6 49 0.8/1.0 9*5.5 380/50 3-pahse Tank inside 20L

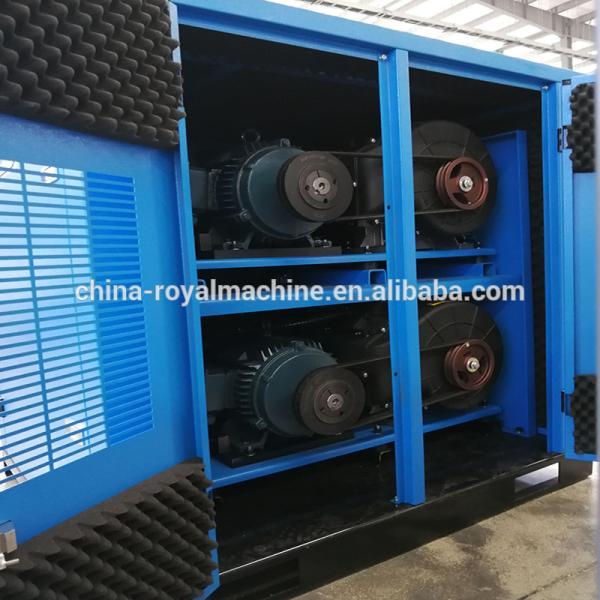

Photos:

Scroll oil less air compressor low nose scroll air compressor good working scroll air compressor
