inlet 7bar outlet 30bar booster air compressor inlet 2m3/min outlet 1.7m3/min booster air compressor for PET blower
inlet 7bar outlet 30bar booster air compressor inlet 2m3/min outlet 1.7m3/min booster air compressor for PET blower
inlet 7bar outlet 30bar booster air compressor inlet 2m3/min outlet 1.7m3/min booster air compressor for PET blower
inlet 7bar outlet 30bar booster air compressor inlet 2m3/min outlet 1.7m3/min booster air compressor for PET blower
inlet 7bar outlet 30bar booster air compressor inlet 2m3/min outlet 1.7m3/min booster air compressor for PET blower
inlet 7bar outlet 30bar booster air compressor inlet 2m3/min outlet 1.7m3/min booster air compressor for PET blower
inlet 7bar outlet 30bar booster air compressor inlet 2m3/min outlet 1.7m3/min booster air compressor for PET blower
inlet 7bar outlet 30bar booster air compressor inlet 2m3/min outlet 1.7m3/min booster air compressor for PET blower
inlet 7bar outlet 30bar booster air compressor inlet 2m3/min outlet 1.7m3/min booster air compressor for PET blower
inlet 7bar outlet 30bar booster air compressor inlet 2m3/min outlet 1.7m3/min booster air compressor for PET blower
inlet 7bar outlet 30bar booster air compressor inlet 2m3/min outlet 1.7m3/min booster air compressor for PET blower
inlet 7bar outlet 30bar booster air compressor inlet 2m3/min outlet 1.7m3/min booster air compressor for PET blower
inlet 7bar outlet 30bar booster air compressor inlet 2m3/min outlet 1.7m3/min booster air compressor for PET blower
inlet 7bar outlet 30bar booster air compressor inlet 2m3/min outlet 1.7m3/min booster air compressor for PET blower
inlet 7bar outlet 30bar booster air compressor inlet 2m3/min outlet 1.7m3/min booster air compressor for PET blower
inlet 7bar outlet 30bar booster air compressor inlet 2m3/min outlet 1.7m3/min booster air compressor for PET blower
Specifications
Brand Name :
ROYAL MACHINERY
Model Number :
RM07/30
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 unit
Price :
usd1290/unit
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 units per month
Delivery Time :
5-15days
Packaging Details :
Plywood case
Product name :
Booster air compressor
inlet pressure :
7bar
outlet pressure :
30bar 35bar
Description

35bar 3.5Mpa booster air compressor for PET blowing

  • inlet pressure 7bar
  • outlet pressure 35bar
  • inlet air flow: 0.85m3/min
  • outlet air flow: 0.72m3/min
  • motor power: 5.5kw
  • speed: 670rpm

inlet 7bar outlet 30bar booster air compressor inlet 2m3/min outlet 1.7m3/min booster air compressor for PET blower

  • inlet pressure 10bar
  • outlet pressure 30bar
  • inlet air flow: 2m3/min
  • outlet air flow: 1.65m3/min
  • motor power: 7.5kw
  • speed: 670rpm
Product Description

Screw air compressor and booster air compressor work flow chart:

inlet 7bar outlet 30bar booster air compressor inlet 2m3/min outlet 1.7m3/min booster air compressor for PET blower

Detail parameter list:

Model No. Air end No. Inlet Pressure
Mpa		 Outlet Pressure
Mpa		 Inlet Air Flow
m3/min		 Outlet Air Flow
m3/min		 Motor Power
KW		 Speed r.p.m
BC108 BC1221 0.7 3.5 0.85 0.72 5.5 670
BC180 BC1621 0.7 3.0 1.4 1.2 5.5 670
BC180 1.0 3.0 2.0 1.65 7.5 670
BC260 0.7 3.0 2.0 1.7 7.5 950
BC260 1.0 3.5 2.8 2.4 9.0 950
BC260 1.3 4.0 3.5 3.1 9.0 950
BC330 BC2021 0.7 3.0 2.6 2.1 9.0 800
BC330 1.0 3.5 3.6 3.1 11 800
BC330 1.3 4.0 4.5 4.0 15 800
BC430 BC1631 0.7 3.0 3.4 2.8 11 1050
BC430 1.0 3.5 4.6 4.0 15 1050
BC430 1.3 4.0 5.9 5.2 15 1050
BC560 BC2031 0.7 3.0 4.4 3.6 18.5 900
BC560 1.0 3.5 6.0 5.2 18.5 900
BC560 1.3 4.0 7.6 6.7 22 900
BC650 0.7 3.0 5.1 4.2 18.5 1050
BC650 BC2031 1.0 3.5 7.0 6.0 22 1050
BC650 1.3 4.0 8.9 7.8 22 1050
BC870 BC2631 0.7 3.0 6.9 5.6 22 820
BC870 1.0 3.0 9.4 8.1 25 820
BC1000 0.7 3.0 7.9 6.5 25 950
BC1000 1.0 3.0 10.9 9.4 30 950
BC-9.0/40-10 BC2241 1.0 4.0 10.5 9.0 30 620
BC-10/35-10 BC3031A 1.0 3.5 12.5 10.0 37 720

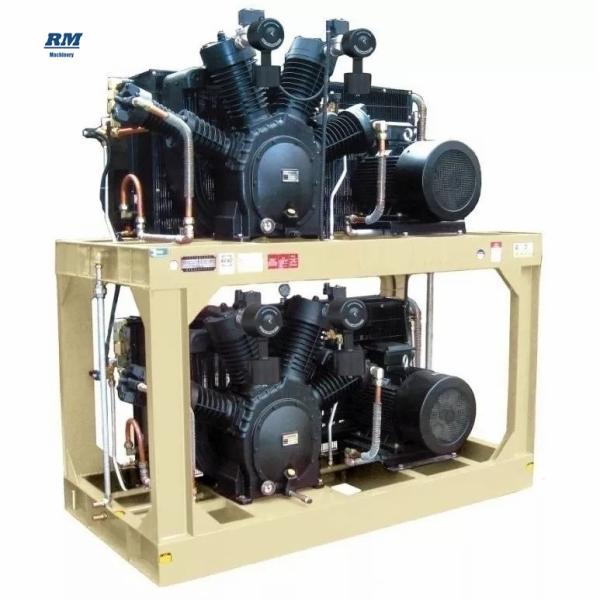

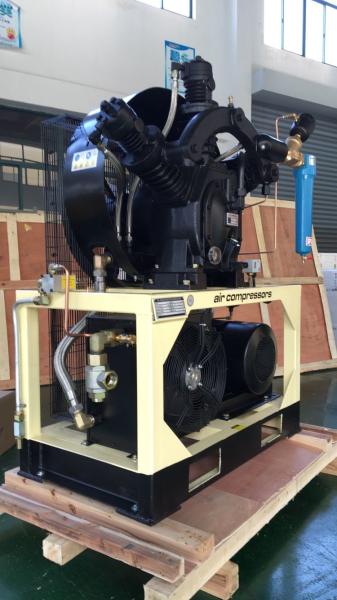

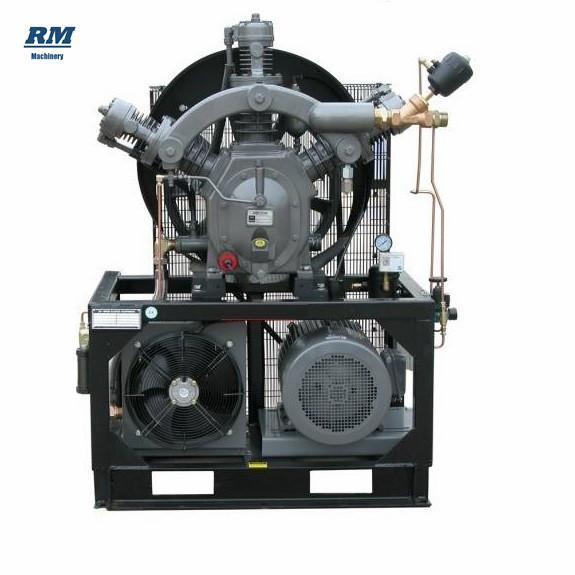

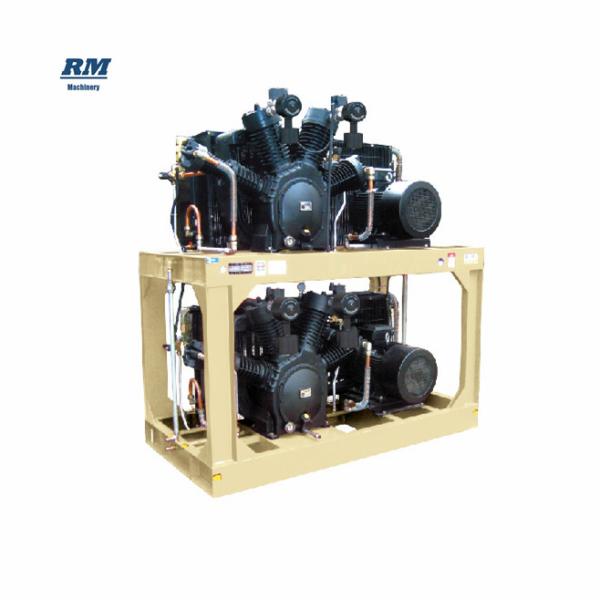

Boosyrt air compressor photos:

inlet 7bar outlet 30bar booster air compressor inlet 2m3/min outlet 1.7m3/min booster air compressor for PET blowerinlet 7bar outlet 30bar booster air compressor inlet 2m3/min outlet 1.7m3/min booster air compressor for PET blowerinlet 7bar outlet 30bar booster air compressor inlet 2m3/min outlet 1.7m3/min booster air compressor for PET blowerinlet 7bar outlet 30bar booster air compressor inlet 2m3/min outlet 1.7m3/min booster air compressor for PET blowerinlet 7bar outlet 30bar booster air compressor inlet 2m3/min outlet 1.7m3/min booster air compressor for PET blowerinlet 7bar outlet 30bar booster air compressor inlet 2m3/min outlet 1.7m3/min booster air compressor for PET blower

Welcome to contact us for more details, technical specifications.

Thank you!

Packaging & Shipping

All of our screw air compressors are packed by export standard plywood case:

Because of screw air compressor package volume and weight, most of our screw air compressors are shipped by sea.

Wecome to contact us for more details, we will offer compressor details, oil free screw air compressor use manual, oil free screw air compressor configuration list, oil free screw air compressor instruction drawings, spare parts list, installation drawings, technical support and maintenance training.

Our Services

Long interval maintenance periods:

Nearly ideal isothermal compression, direct driven method, smart configuration and precision component design and machining, long bearing service life, all of the above essentially extends interval between regular periodical maintenance.

Company Information

Shanghai Royal Machinery Co.,Ltd is a high-tech enterprise which specialized in sales and service of compressed air system equipment, and after-treatment equipment, booster compressor, diesel generator and drying equipment, etc.

We have an experienced team. It not only provide high-quality and high-efficiency compressors for users but also provide the best solution for air system equipment during before-sale, selling and after-sale.

Welcome to contact us for inquires and quotation.
