Specifications
Brand Name :
RCTuning
Model Number :
TK20646
Place of Origin :
P.R.China
MOQ :
20 Pairs
Payment Terms :
L/C, T/T, PayPal
Packaging Details :
1 Pair + 10 Extended Bolts Per Package
Material :
Forged Aero Aliuminum
Machining :
CNC
Finish :
Anodized Black
Applications :
BMW E & F Chassis
Thickness :
20mm
Extended Bolts :
Available for all regular thicknesses with proper shank length
Description

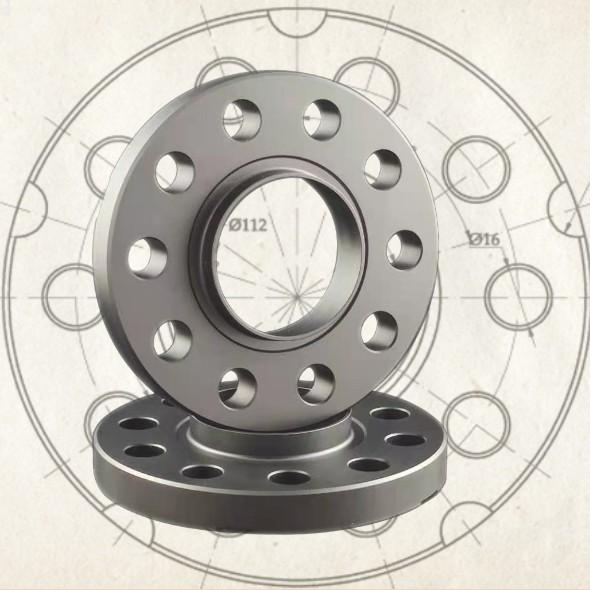

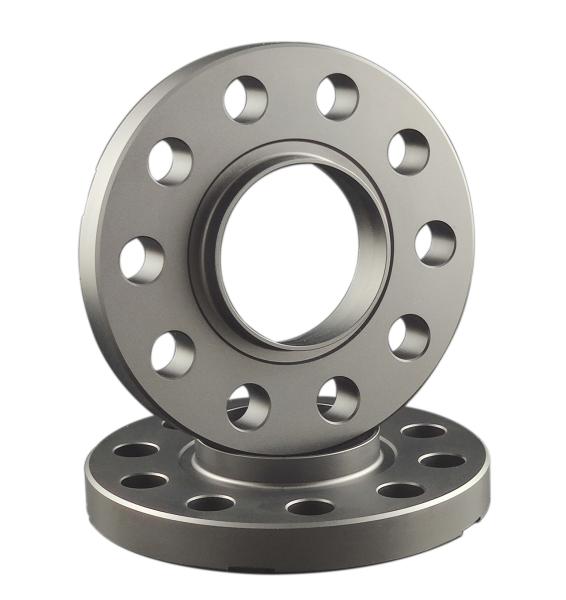

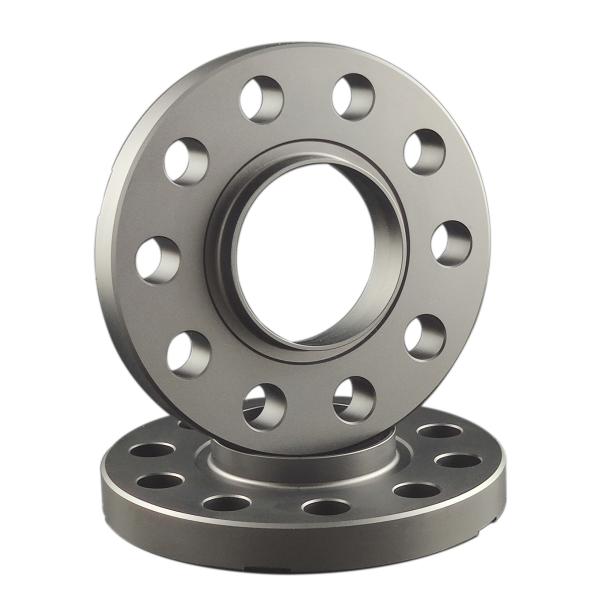

20mm Forged Billet Aluminum Hub-Centric Wheel Spacer for BMW E & F Chassis

RCTuning’s BMW wheel spacers are made of forged billet aluminum alloy and designed to provide perfect mounting by proper extended wheel bolts, simple and easy bolt-on handling. With wheel spacers mounted, not only handling and lateral stability improved, but enhancing the look of your car, aggressive and muscular.

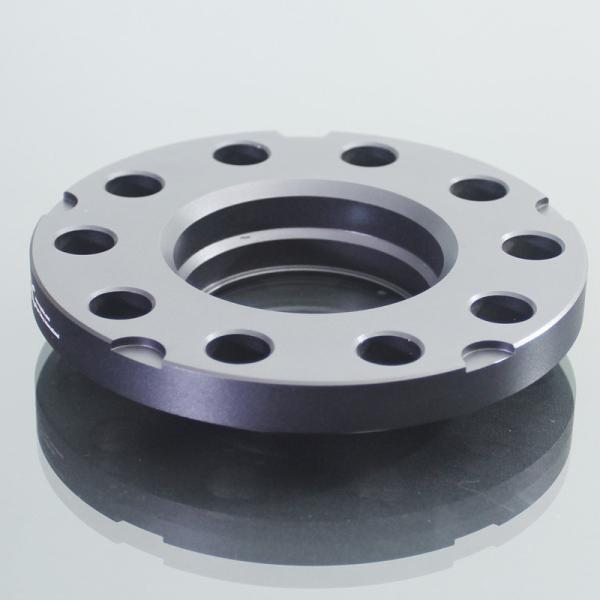

All RCTuning’s wheel spacers are cleverly designed to match factory hub and wheel center bore perfectly for vibration-free mounting. Pry tabs are possible on RCTuning’s wheel spacers for aiding later removal.

Regular widths: 10mm, 12mm, 15mm, 18mm, 20mm

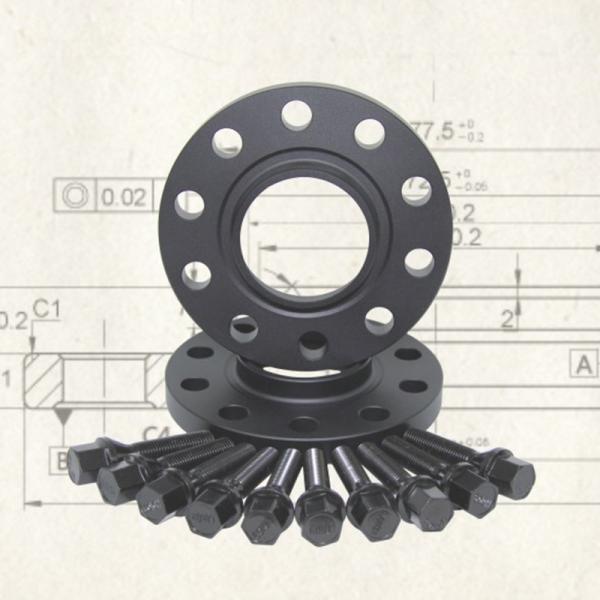

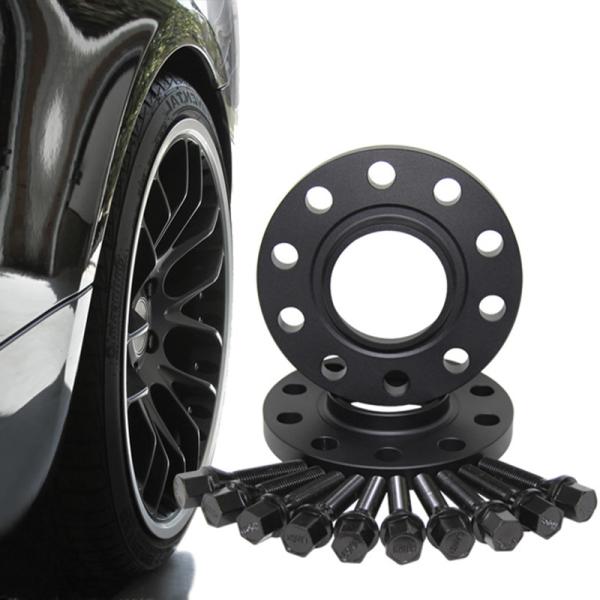

Package: 1 pair (2PCs) with 10 extended wheel bolts per package, each spacer width has a specific bolt with proper shank length for perfect mounting.

Customized sizes & anodized color are welcome.

Custom LOGO: laser engraved LOGO available.

BMW E Chassis Wheel Spacer Applications

BMW E Chassis Wheel Spacer Applications
Series Chassis Code Year Car Models
1 Series E82, E88 2008 ~ 13 128i, 135i, M1, 1M Coupe
3 Series E30 ~ 1992 M3
E36 ~ 1999 318i, 318is, 318ti, 325i, 325is, 328i, 328is, M3
E46 1999 ~ 05 323ci, 323i, 325ci, 325i, 325xi, 328ci, 328i, 330ci, 330i, 330xi, M3
E90, E91, E92, E93 2006 ~ 13 325i, 325xi, 328i, 328xi, 330i, 330xi, 335d, 335i, 335is, 335xi, M3
5 Series E28, E34 ~ 1995 525i, 528e, 530i, 535i, 535is, 540i, M5
E60, E61 2004 ~ 10 525i, 525xi, 528i, 530i, 530xi, 535i, 535xi, 545i, 550i, M5
6 Series E24, E63, E64 2005 ~ 11 633i, 635i, 645ci, 650i, M6
7 Series E23, E32, E38 ~ 2001 730i, 730il, 733i, 735i, 735il, 740i, 740il, 750i, 750il
8 Series E31 ~ 1997 840ci, 840i, 850ci, 850i
X1 E84 2016 ~ 019 All
M-Coupe 　 1998 ~ 02 Typ MRC
M-Roadster 　 1998 ~ 02 Typ MRC
Z3 　 1996~ 02 including M-Coupe and Roadster
Z4 E85, E89, M85 2003 ~ 16 including M-Coupe and Roadster
Z8 E52 2000 ~ 03 　

However, some exceptions exist.

Exceptions
Series Chassis Code Year Car Models Take Spacer Code Take Bolt
3 Series E30 ~ 1990 318, 325, 　 　
5 Series E39 1999 ~ 03 525, 528, 530, 540, M5 TK20649 WBB Series
7 Series E65 2002 ~ 08 745, 750,760 TK30646 WBE Series
X3 E83 2004 ~ 10 　
X5 E53 2000 ~ 006 　
E70 2007 ~ 13 　 TK20649 WBA Series

BWM F Chassis Wheel Spacer Applications

BMW F Chassis Wheel Spacer Applications
Series Chassis Code Year Car Models
2 Series F22 F23 2014 ~ Coupe, Convertible & M235, M240
F87 2016 ~ M2
3 Series F30 F31 F34 2012 ~ 17 All
F80 F82 2015 ~ 19 M3 CS Coupe / Sedan
4 Series F32 F33 F36 2014 ~ 20 All
F82 F83 2014 ~ 19 M4 Cabrio / Coupe / CS / GTS
5 Series F07 F10 2010 ~ 16 528i, 535d, 535i, 550i Gran Turismo & xDrive Gran Turismo
6 Series F06 F12 F13 2012 ~ 19 640/650 Coupe & Convertible & M6
7 Series F01 F02 2008 ~ 15 740, 750, 760
X3 F25 2011 ~ 17 All
X4 F26 2016 ~ 18 X4 xDrive28i / xDrive35i / M40i
X5 M7X 2010 ~ 13 X5 M Some exceptional models take spacer # TK20649
X6 X70 M7X 2007 ~ 14 X6, X6 M

Exceptions:

Series Chassis Code Year Car Models Take Spacer #
X1 F48 2016 ~ 19 X1 sDrive28i / xDrive28i TK20434
X2 F39 2018 ~ 20 X2 xDrive28i TK20434
X5 F15 F85 2014 ~ 18 X5 M, X5 xDrive TK20649
X6 F16 F86 2014 ~ 19 X6 M, X6 xDrive TK20649
M5 F90 2018~19 All TK20434

20mm 5x120 Hub Centric Wheel Spacers For BMW E & F Chassis

20mm 5x120 Hub Centric Wheel Spacers For BMW E & F Chassis20mm 5x120 Hub Centric Wheel Spacers For BMW E & F Chassis20mm 5x120 Hub Centric Wheel Spacers For BMW E & F Chassis20mm 5x120 Hub Centric Wheel Spacers For BMW E & F Chassis20mm 5x120 Hub Centric Wheel Spacers For BMW E & F Chassis20mm 5x120 Hub Centric Wheel Spacers For BMW E & F Chassis20mm 5x120 Hub Centric Wheel Spacers For BMW E & F Chassis20mm 5x120 Hub Centric Wheel Spacers For BMW E & F Chassis20mm 5x120 Hub Centric Wheel Spacers For BMW E & F Chassis

BMW E & F Chassis Wheel Spacer Specifications
Center Bore: 72.6 mm F & R
Bolt Pattern: 5x120

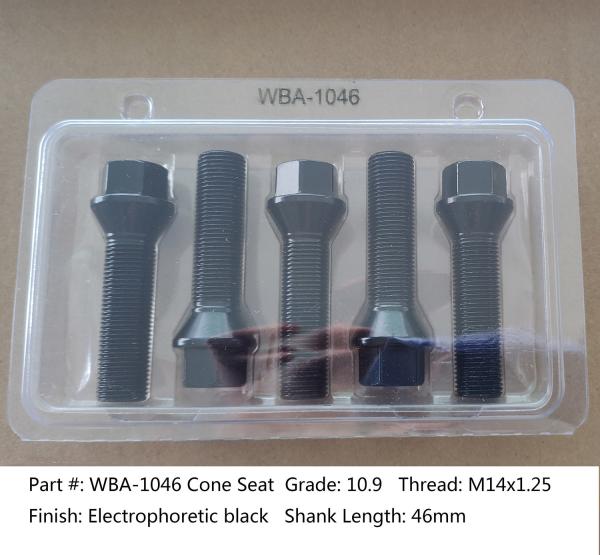

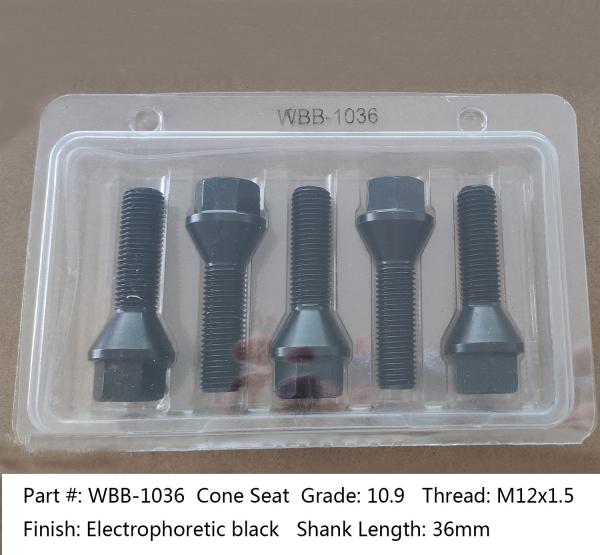

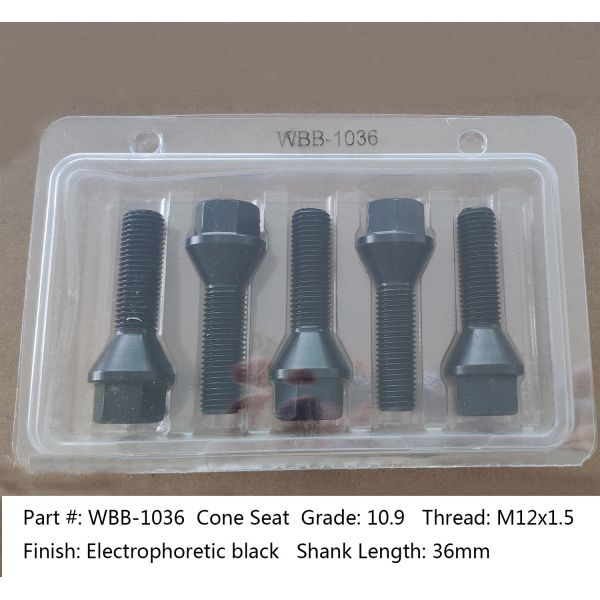

Wheel Bolt: Cone seat 10.9 grade electrophoresis black M12x1.5 or M14x1.25
Spacer Material: Forged Billet Aluminum
