SUS304 Spring Surface Mount Pogo Pins C3604 Plunger Tube Halogen Free
SUS304 Spring Surface Mount Pogo Pins C3604 Plunger Tube Halogen Free
Specifications
Brand Name :
Rtench
Model Number :
PGC-RA-2PIN
Certification :
ISO9001 SGS-ROHS2.0
Place of Origin :
China
MOQ :
10000PCS
Payment Terms :
T/T
Supply Ability :
20000000PCS/day
Delivery Time :
10-15 work days
Packaging Details :
SMT Tape Packaging 750PCS/disc
Price :
Negotiable
Product Name :
Pogopin connector
Length :
Customizable
Application :
PCB
Plating :
Gold plating
Description

Application

1. Smart wear (ssart bracelet, snart vatch, pet tracker, bluetooth headset, snort clothing, etc.)
2. Connect the Shared charging cabinet, alnl charging cabinet, data line, charging line and line segaent of magnetic suction board.
3. Medical equipnent, beauty instruaent, wireless equlpaent, telecommunication equipnent, autoaation and industrial equipment, etc.
4. Aviation, aerospace Billtary coonmication and Bilitary electronics, etc.
5. Autoaobile, on-board navigation, testing and testing equipement, etc.
6. Consuer electronics (printers, e-cigarettes, mobile phones* tablet computers, caoeras, audio visual equipment, PDA, children's intelligent building blocks, educational equipaent.

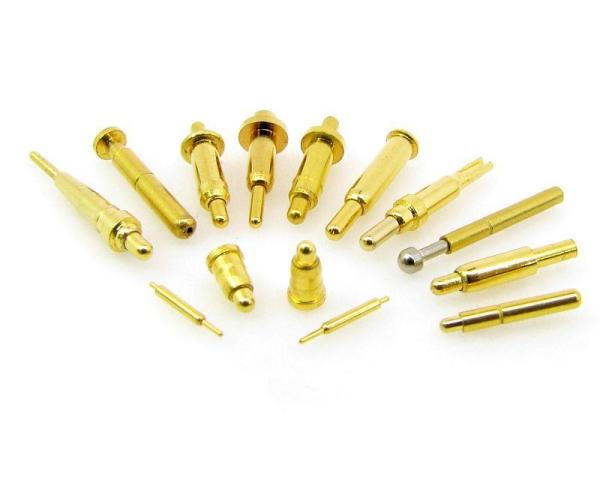

What is Pogo pin?

Pogo Pin is spring loaded probe which is made by precision instruments with riveting workmanship. It usually consists of plunger, tube and spring.

Pogo pin is generally applied in the precision connection inside the electronics products such as mobile phones, communication devices, automotive, medical devices, aerospace devices and so on. Since pogo pin is very fine probe, it can make the finished connector light in weight, small in size and exquisite in look when it’s applied in a precision connector.

  • Pogo Pin is to realise the connection between Board to Board

  • Pogo pin usually has vertical connection and right angle connection

  • Pogo pin is also to realise the connection between cable and device

Pogo pin Materials

Parts Materials Surface treatment Hazardous substances Remarks
Plunger C3604 Ni 1.4u~3.75u

Au 0.4u

 Lead is less than 4%, RoHS compliants Forming Process C3604 for Lathe Tuming Maching
Tube C3604 Ni 1.4i~3.5u

Au 0.1u

 Lead is less than 4%, RoHS compliants
Spring SUS304 N/A
Housing PA46

LCP

HPPA

 N/A Halogen free material fire-protection rating UL94V-0
Cap PA46

HPPA

 N/A Halogen free material fire-protection rating UL94V-0

SUS304 Spring Surface Mount Pogo Pins C3604 Plunger Tube Halogen Free
SUS304 Spring Surface Mount Pogo Pins C3604 Plunger Tube Halogen Free
