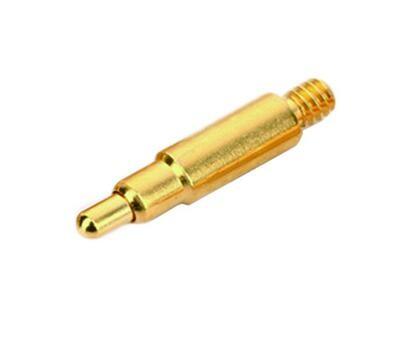

SMT DIP Type Probe Pin Connector Gold Plating For Communications Equipment
SMT DIP Type Probe Pin Connector Gold Plating For Communications Equipment
Specifications
Brand Name :
Rtench
Model Number :
PGC-PL-2.54mm-2PIN-5mm
Certification :
ISO9001 SGS-ROHS2.0
Place of Origin :
China
MOQ :
10000PCS
Payment Terms :
T/T
Supply Ability :
20000000PCS/day
Delivery Time :
10-15 work days
Packaging Details :
SMT Tape Packaging 750PCS/disc
Price :
Negotiable
Height :
5mm
surface treatment :
Electroplate
Type :
PCB-FPC
Material :
copper
Description

Spring Loaded Pogo Pin, test pin, contact probe and receptacle are developed especially for testing electrical requirements in a veriety of applications. They provide a reliable means to test in bare or loaded printed circuit boards and other circuitries where a number of contact points must be accessed.

  • Head Style: Concave, Convex, Flat, Spear Point, Serrated, Star, Spherical Radius
  • Diameter of Barrel: 0.68mm, 1.01mm, 1.37mm, 2.02mm, 2.36mm
  • Spring Pressure: 80g, 100g, 150g, 200g, 250g
  • Reference: Pogo Pin connector, Test Probe, Contact Probe, pin connector, cnc machining pogo pin and probe

What is Pogo pin?

Pogo Pin is spring loaded probe which is made by precision instruments with riveting workmanship. It usually consists of plunger, tube and spring.

Pogo pin is generally applied in the precision connection inside the electronics products such as mobile phones, communication devices, automotive, medical devices, aerospace devices and so on. Since pogo pin is very fine probe, it can make the finished connector light in weight, small in size and exquisite in look when it’s applied in a precision connector.

  • Pogo Pin is to realise the connection between Board to Board
  • Pogo pin usually has vertical connection and right angle connection
  • Pogo pin is also to realise the connection between cable and device

Pogo pin Materials

Parts Materials Surface treatment Hazardous substances Remarks
Plunger C3604 Ni 1.4u~3.75u

Au 0.4u

 Lead is less than 4%, RoHS compliants Forming Process C3604 for Lathe Tuming Maching
Tube C3604 Ni 1.4i~3.5u

Au 0.1u

 Lead is less than 4%, RoHS compliants
Spring SUS304 N/A
Housing PA46

LCP

HPPA

 N/A Halogen free material

fire-protection rating UL94V-0
Cap PA46

HPPA

 N/A Halogen free material fire-protection rating UL94V-0
