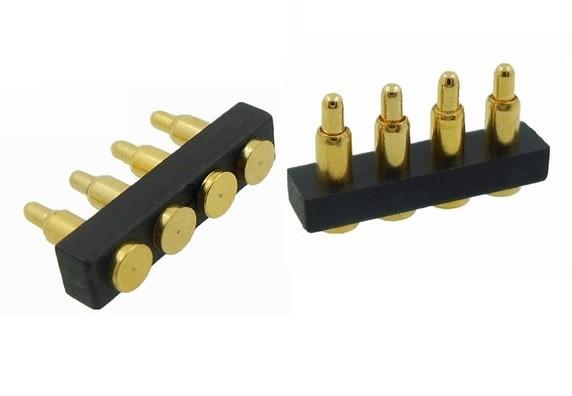

Dynamic Pogo Pin Connector , Miniature Pogo Pins Tight Secured Spring Force
Dynamic Pogo Pin Connector , Miniature Pogo Pins Tight Secured Spring Force
Specifications
Brand Name :
Rtench
Model Number :
PGC-RA-2PIN
Certification :
ISO9001 SGS-ROHS2.0
Place of Origin :
China
MOQ :
10000PCS
Payment Terms :
T/T
Supply Ability :
20000000PCS/day
Delivery Time :
10-15 work days
Packaging Details :
SMT Tape Packaging 750PCS/disc
Price :
Negotiable
Description

Structural Features of SMT POGO PIN

With ball structure: The ball inside allows more buffer, so result in a even more reliable connection.

Bias structure: The biased tail of the plunger creates a lateral force, so further improves the contact.

Back drill structure: The back drilled plunger increases the space for the spring, so allows a shorter pogo pin for tight space.

  1. Pogo Pin is to realise the connection between Board to Board
  2. Pogo pin usually has vertical connection and right angle connection
  3. Pogo pin is also to realise the connection between cable and device

What is Pogo pin?

Pogo Pin is spring loaded probe which is made by precision instruments with riveting workmanship. It usually consists of plunger, tube and spring.

Pogo pin is generally applied in the precision connection inside the electronics products such as mobile phones, communication devices, automotive, medical devices, aerospace devices and so on. Since pogo pin is very fine probe, it can make the finished connector light in weight, small in size and exquisite in look when it’s applied in a precision connector.

Pogo pin Materials

Parts Materials Surface treatment Hazardous substances Remarks
Plunger C3604 Ni 1.4u~3.75u

Au 0.4u

 Lead is less than 4%, RoHS compliants Forming Process C3604 for Lathe Tuming Maching
Tube C3604 Ni 1.4i~3.5u

Au 0.1u

 Lead is less than 4%, RoHS compliants
Spring SUS304 N/A
Housing PA46

LCP

HPPA

 N/A Halogen free material

fire-protection rating UL94V-0
Cap PA46

HPPA

 N/A Halogen free material fire-protection rating UL94V-0
Dynamic Pogo Pin Connector , Miniature Pogo Pins Tight Secured Spring Force
Dynamic Pogo Pin Connector , Miniature Pogo Pins Tight Secured Spring Force
