Product Name :

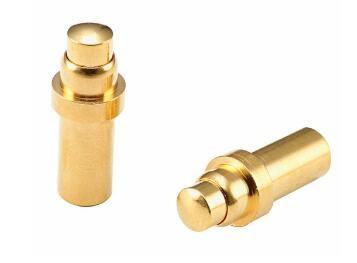

SMT Pogo Pins
Working Height :
2.5mm ~ 8.3mm
Description

SMT POGO PIN

Rtench is a full name of Shenzhen Rongtenghui Technology Co., Ltd., which was established in 2013. It is a high-tech enterprise specializing in the research, development, production and sales of precision electronic connectors. The connector products currently designed and manufactured include POGO PIN spring connectors, test spring probes, FPC/FFC connectors, battery connectors and hardware antenna shrapnel. Wait. Products are widely used in military, medical, communications, mobile phones, security, smart watches, household appliances, walkie-talkies and railway systems, etc., the company has advanced Japanese imported CNC lathes, high-speed punching machines and Japanese Sumitomo motor injection molding machines and other production equipment and from international connections R & D and production team of the company, R & D production team average connector work experience for more than 10 years, Rong Tenghui has obtained a number of Chinese utility model technology patents and invention patents. After several years of hard work, Rong Tenghui has received support from customers such as Haier, Hisense, Panasonic, Samsung, and Tongfang.

Brief Introduction of SMT POGO Pin :

Pogo Pin is spring loaded probe which is made by precision instruments with riveting workmanship. It usually consists of plunger, tube and spring. Pogo pin is generally applied in the precision connection inside the electronics products such as mobile phones, communication devices, automotive, medical devices, aerospace devices and so on. Since pogo pin is very fine probe, it can make the finished connector light in weight, small in size and exquisite in look when it’s applied in a precision connector.

Features of SMT POGO PIN:
- Ball strucutre to protect spring from high current.
- Thru-hole tail for secure soldering.
- Solder-cup tail for wire attachment. (Recommended AWG19 or greater)

- Available 2A per pin

- Working Height: 2.5mm ~ 8.3mm

- Spring Force: 0.9N or 1.08N

- Tube Bottom Diameter: 1.8mm ~ 2.5mm

Structural Features of SMT POGO PIN

With ball structure: The ball inside allows more buffer, so result in a even more reliable connection.

Bias structure: The biased tail of the plunger creates a lateral force, so further improves the contact.

Back drill structure: The back drilled plunger increases the space for the spring, so allows a shorter pogo pin for tight space.

  • Pogo Pin is to realise the connection between Board to Board
  • Pogo pin usually has vertical connection and right angle connection
  • Pogo pin is also to realise the connection between cable and device

Pogo pin Materials

Parts Materials Surface treatment Hazardous substances Remarks
Plunger C3604

Ni1.4u~3.75u

Au 0.4u

 Lead is less than 4%, RoHS compliants Forming Process C3604 for Lathe Tuming Maching
Tube C3604

Ni 1.4i~3.5u

Au 0.1u

 Lead is less than 4%, RoHS compliants
Spring SUS304 N/A
Housing

PA46

LCP

HPPA

 N/A Halogen free material fire-protection rating UL94V-0
Cap

PA46

HPPA

 N/A Halogen free material fire-protection rating UL94V-0

Comparison of different structure of SMT POGO Pin

Structure Contact Impedance Space saving Amperage carrying Reliability
A, With ball structure ★★★★★ ★★★☆☆ ★★★★★ ★★★★★
B, Bias structure ★★★★★ ★★★★★ ★★★★★ ★★★★☆
C, Back drill structure ★★☆☆☆ ★★★★★ ★★☆☆☆ ★★☆☆☆

Basic Specifications of SMT POGO Pin:

ITEM PERFORMANCE NOTE
Rated voltage Less than 36 Volte Dc
Rated current 2.0 Amperes continuous per pin
Working temperature -40 °C to 85 °C
Storage temperature -40 °C to 85 °C
Woring environment humidity 10% R.H. to 90% R.H.
Durability static testing 500,000 cycles,
dynamic testing 10,000 cycles		 life cycle
Contact impedance 30m ohm Max. the contac impeance should be lower than 30m ohm during the whole working stroke,so it's dynamic contact impedance, not contact impedance in a certain point
PIN interval impedance 500M ohm Min. pogo pin connector

ITEM Performance Note
Rated Current 2A -
Rated Voltage AC/DC 12V -
Contact Resistance 50mΩmax (stillness)
(At factory shipment)		 100mΩ after 100 times operation
(After Durability test at
Yokowo Regulation)
Insulation Resistance 100MΩ (Min) DC500V
Withstand Voltage AC500V 1Min Leak Current 3mA
Ambient Temp. -40℃~+85℃ -
Pin Force 9.8N on a Pin from any direction -
Pin Holding Strength 4.9N on a Pin from axis direction -
Cycle Durability 20,000 times Working Height
Temp./Humidity Cycle Test Fig. 1 JIS C60068-2-38
Mechanical Shock Durability 490m/s² JIS C60068-2-27
Soldering Temp. 350℃ 3sec Soldering Iron
Reflow Temp. Fig.2 -

Professional High Current Pogo Pins Gold Color 50m Ohm Max Contact Resistance

Basic Dimensions of SMT POGO Pin:

∅ A B C D E FORCE(GF) PART NUMBER
1.20 0.60 1.45 1.95 1.60 35gf Min 20101011233
2.00 0.40 2.20 3.00 2.40 90 Min 101245-1
1.80 0.50 2.30 3.00 2.50 90 Min 10101011363
1.65 0.40 2.20 3.00 2.50 90 Min 101089-1
1.65 0.40 2.20 3.00 2.50 90 Min 101603-1
1.65 0.60 2.40 3.20 2.70 90 Min 101022-1
1.80 0.40 2.50 3.30 2.80 90±20 101080-1
2.00 0.40 2.50 3.30 2.80 90±20 101121-1
2.00 0.40 2.50 3.50 2.80 100±35 101281-1
2.00 0.40 2.50 3.50 2.90 100±30 101009-1

SMT POGO Pin

Type Working
Height		 Spring
Force		 Rated
Current		 A B C D E F
2307 2.5 0.9N 2A 2.3 0.7 2.5 0.5 1.8 2.4
2509 2.8 0.9N 2A 2.5 0.9 2.8 0.6 1.8 2.4
2809 3.1 1.08N 2A 2.8 0.9 3.1 0.6 1.8 2.4
2910 3.2 1.08N 2A 2.9 1.0 3.2 0.7 1.8 2.4
3111 3.4 1.08N 2A 3.1 1.1 3.4 0.8 1.8 2.4
3212 3.5 1.08N 2A 3.2 1.2 3.5 0.9 1.8 2.4
3413 3.8 1.08N 2A 3.4 1.3 3.8 0.9 2.0 2.6
3614 4.0 1.08N 2A 3.6 1.4 4.0 1.0 2.0 2.6
3915 4.4 1.08N 2A 3.9 1.5 4.4 1.0 2.0 2.6
4215 4.7 1.08N 2A 4.2 1.5 4.7 1.0 2.5 3.1
4617 5.2 1.08N 2A 4.6 1.7 5.2 1.1 2.5 3.1
5117 5.7 1.08N 2A 5.1 1.7 5.7 1.1 2.5 3.1
5517 6.1 1.08N 2A 5.5 1.7 6.1 1.1 2.5 3.1
5920 6.6 1.08N 2A 5.9 2.0 6.6 1.3 2.5 3.1
6220 6.9 1.08N 2A 6.2 2.0 6.9 1.3 2.5 3.1
6520 7.2 1.08N 2A 6.5 2.0 7.2 1.3 2.5 3.1
7025 7.8 1.08N 2A 7.0 2.5 7.8 1.7 2.5 3.1
7525 8.3 1.08N 2A 7.5 2.5 8.3 1.7 2.5 3.1
