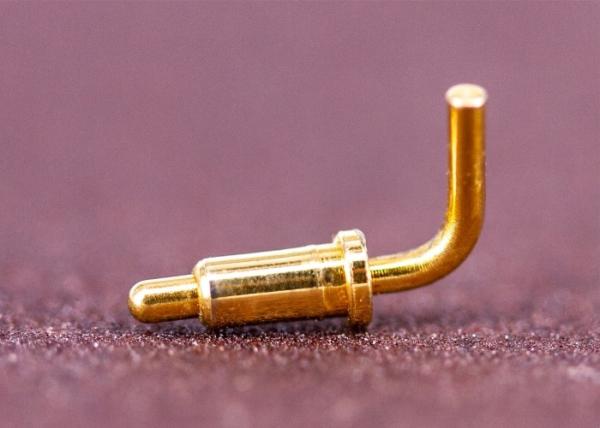

Charger Right Angle Pogo Pin CE ROHS Approved For Smart Wearable
Charger Right Angle Pogo Pin CE ROHS Approved For Smart Wearable
Specifications
Brand Name :
Rtench
Model Number :
PG-10
Certification :
ISO9001
Place of Origin :
China
MOQ :
10000PCS
Payment Terms :
T/T
Supply Ability :
20000000PCS/day
Delivery Time :
10-15 work days
Packaging Details :
SMT Tape Packaging 750PCS/disc
Price :
Negotiable
Product Name :
Spring Loaded Pogo Pins
Model Name :
PG-10
Spring Force :
0.5N or 0.6N
Description
  1. Contact Copper Alloy
  2. Plating(Contact) Plating Gold on Nickel over all
  3. Plating(Leg) Plating Tin on Nickel over all
  4. Current Rating 1.0A AC/DC
  5. Voltage Rating 12V AC/DC
  6. Ambient Temperature Range -55℃~+85℃
  7. Storage Temperature Range -10℃~+50℃
  8. Ambient Humidity Range 95%RH max
  9. Insulation Resistance 100MΩ /250V DC min
  10. Contact Resistance 50mΩ max
  11. Contact Retention Force 0.5kgf min
  12. FPC/FFC Retention Force 10000

Feature

  • - Available 0.5A per pin
  • - Working Height: 2.05mm ~ 2.55mm
  • - Spring Force: 0.5N or 0.6N
  • - Tube Bottom Diameter: 2.1mm

Basic Specifications

ITEM Performance Note
Rated Current 0.5A -
Rated Voltage AC/DC 12V -
Contact Resistance 250mΩmax (stillness)(At factory shipment) 500mΩ after 100 times operation (After Durability test at Yokowo Regulation)
Insulation Resistance 100MΩ (Min) DC500V
Withstand Voltage AC500V 1Min Leak Current 3mA
Ambient Temp. -40℃~+85℃ -
Pin Force 9.8N on a Pin from any direction -
Pin Holding Strength 4.9N on a Pin from axis direction -
Cycle Durability 1000 times Working Height
Temp./Humidity Cycle Test Fig. 1 JIS C60068-2-38
Mechanical Shock Durability 490m/s² JIS C60068-2-27
Soldering Temp. 350℃ 3sec Soldering Iron
Reflow Temp. Fig.2 -

ITEM PERFORMANCE NOTE
Rated voltage Less than 36 Volte Dc
Rated current 2.0 Amperes continuous per pin
Working temperature -40 °C to 85 °C
Storage temperature -40 °C to 85 °C
Woring environment humidity 10% R.H. to 90% R.H.
Durability static testing 500,000 cycles,
dynamic testing 10,000 cycles		 life cycle
Contact impedance 30m ohm Max. the contac impeance should be lower than 30m ohm during the whole working stroke,so it's dynamic contact impedance, not contact impedance in a certain point
PIN interval impedance 500M ohm Min. pogo pin connector

Advantage
– Ball strucutre to protect spring from high current.
– Thru-hole tail for secure soldering.
– Solder-cup tail for wire attachment. (Recommended AWG19 or greater)

What is Pogo pin?

Pogo Pin is spring loaded probe which is made by precision instruments with riveting workmanship. It usually consists of plunger, tube and spring.

Pogo pin is generally applied in the precision connection inside the electronics products such as mobile phones, communication devices, automotive, medical devices, aerospace devices and so on. Since pogo pin is very fine probe, it can make the finished connector light in weight, small in size and exquisite in look when it’s applied in a precision connector.

  • Pogo Pin is to realise the connection between Board to Board
  • Pogo pin usually has vertical connection and right angle connection
  • Pogo pin is also to realise the connection between cable and device

Pogo Pin Materials

Parts Materials Surface treatment Hazardous substances Remarks
Plunger C3604

Ni 1.4u~3.75u

Au 0.4u

 Lead is less than 4%, RoHS compliants Forming Process C3604 for Lathe Tuming Maching
Tube C3604

Ni 1.4i~3.5u

Au 0.1u

 Lead is less than 4%, RoHS compliants
Spring SUS304 N/A
Housing

PA46

LCP

HPPA

 N/A Halogen free material fire-protection rating UL94V-0
Cap

PA46

HPPA

 N/A Halogen free material fire-protection rating UL94V-0
