Fabric Reinforced Rolling Diaphragm Tear / Acid And Alkali Resistant
Fabric Reinforced Rolling Diaphragm Tear / Acid And Alkali Resistant
Fabric Reinforced Rolling Diaphragm Tear / Acid And Alkali Resistant
Fabric Reinforced Rolling Diaphragm Tear / Acid And Alkali Resistant
Fabric Reinforced Rolling Diaphragm Tear / Acid And Alkali Resistant
Fabric Reinforced Rolling Diaphragm Tear / Acid And Alkali Resistant
Fabric Reinforced Rolling Diaphragm Tear / Acid And Alkali Resistant
Fabric Reinforced Rolling Diaphragm Tear / Acid And Alkali Resistant
Specifications
Brand Name :
Hongum
Model Number :
GMA-14
Certification :
3A、CE、SGS approval
Place of Origin :
China
MOQ :
50 PCS
Price :
USD 5-150/PCS
Payment Terms :
Wire Transfers, letters of credit, Western Union, Paypal, T/T, L/C
Supply Ability :
5000PCS/Month
Delivery Time :
7~15 working days
Packaging Details :
PE+carton box
Name :
Rolling Diaphragm, Fabric Reinforced Diaphragm
Material :
NBR, NR, EPDM, FKM, CR, etc.
Color :
Black or customized
Working Temperature :
- 20℃~80℃
Technics :
Fabrication
Using scenes :
Pressure regulator, Pneumatic Pressure-regulated Valve, Solenoid Regulator Valve, etc.
Description

Fabric Reinforced Rolling Diaphragm Tear Resistance Acid and Alkali Resistance Heat Resistance

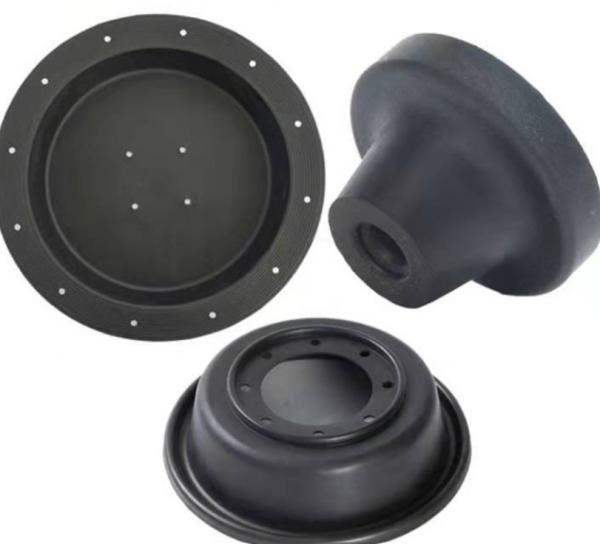

Fabric Reinforced Rolling Diaphragm​ ​Product Overviews:

The rolling diaphragm is shaped like a top hat in the free state. It is made of rubber with silk cloth. The middle hole on the top is used for installing the valve stem. In order to fit, fix and seal, the top and bottom can be equipped with 0 type edge changer, or the bottom surrounding with mounting hole.

Fabric Reinforced Rolling Diaphragm​ Advantages:

• Fabrication technics of textile makes the product tear resistance stronger

• High quality raw materials ensure the excellent performance of the material itself

Fabric Reinforced Rolling Diaphragm​ Material details:

(1) For the present, common materials for rolling diaphragm are: natural rubber (NR), nitrile butadiene rubber (NBR), the performance of the two materials can meet the needs of most industrial environments. In special industrial environments (high temperature resistance, acid and alkali resistance) could use EPDM, fluorine rubber (FKM), neoprene rubber (CR) for production, but the cost is relatively high.

(2) Diaphragm material: nitrile rubber can be selected for natural gas and LPG, and chlorohydrin rubber can be used for gas.
(3) There is an elastic polyester cloth interlayer inside the diaphragm. Carefully observe the inner and outer surfaces of the diaphragm. One side can vaguely see the texture of the mesh cloth, and the other side is smooth. The smooth side is required to be the pressure surface of the gas. Therefore, For the diaphragm installed in the forward direction, the smooth surface is on the inner surface of the diaphragm, and the smooth surface of the diaphragm installed in the reverse direction is on the outer surface, which can avoid leakage and improve the compressive strength of the diaphragm.

Fabric Reinforced Rolling Diaphragm​ Specifications:

Rolling Diaphragm Model

Outer diameter(mm)

Inside diameter(mm)

 Base diameter(mm) Height(mm) Thickness(mm) Pressure
GMA-20 38 22 17 21 0.6 0.1-1MPa
GMA-201 45 40 33 28 0.7 0.1-1MPa
GMA-202 49 37 26 22 0.7 0.1-1MPa
GMA-21S 61 50 39 29 0.7 0.1-1MPa
GMA-21 63 53 43 33 0.7 0.1-1MPa
GMA-22 65 50 45 51 0.7 0.1-1MPa
GMA-23 80 72 55 35 0.7 0.1-1MPa
GMA-24 94 74 64 45 0.7 0.1-1MPa
GMA-31 96 90 79 90 0.8 0.1-1MPa
GMA-301 98 80 70 34 1.5 0.1-1MPa
GMA-311 120 102 94 60 0.8 0.1-1MPa
GMA-32 140 93.2 83.2 56 1 0.1-1MPa
GMA-33 184 167 155 80 1 0.1-1MPa
GMA-34 216 170 142 40 1.1 0.1-1MPa
GMA-SMI 118 108 100 72 0.9 0.1-1MPa
GMA-SM2 95 87 80 90 0.9 0.1-1MPa
GMA-ST 155 137 110 128 0.8 0.1-1MPa

Our service:

1. Packaging is neutral packing or customized packing.

2. We will reply you within 24 hours.

3. We will also provide you with good after-sales service.

4. OEM or ODM orders are welcomed.

5. Trial orders are acceptable.

6. High quality and factory price.

7. 100% ensured the quality.
