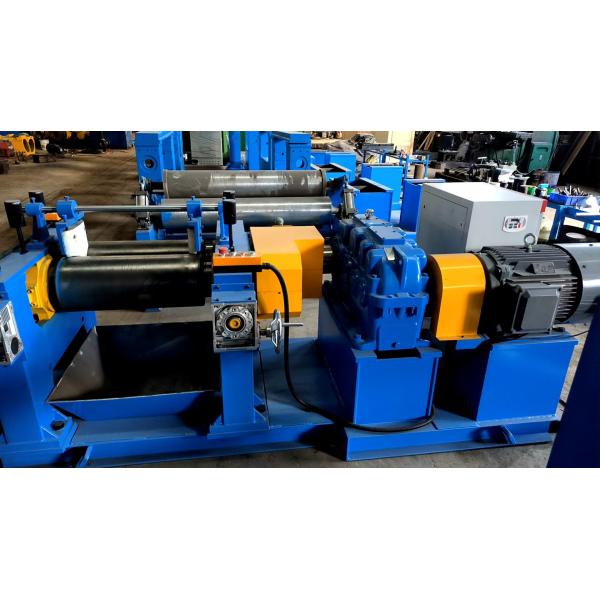

10 Inch Rubber Open Mill With Electric Pitch Adjustment For Small Scale Production
10 Inch Rubber Open Mill With Electric Pitch Adjustment For Small Scale Production
10 Inch Rubber Open Mill With Electric Pitch Adjustment For Small Scale Production
10 Inch Rubber Open Mill With Electric Pitch Adjustment For Small Scale Production
10 Inch Rubber Open Mill With Electric Pitch Adjustment For Small Scale Production
10 Inch Rubber Open Mill With Electric Pitch Adjustment For Small Scale Production
Specifications
Brand Name :
BeiShun
Model Number :
XK-250
Certification :
CE/ISO
Place of Origin :
Qingdao City
MOQ :
1 set
Price :
$10000-20000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50 sets per month
Delivery Time :
360day
Packaging Details :
Wooden box /Container
Spacing Adjustment Method :
Manual or electric
Model :
XK-250
Roller Diameter :
250mm
Cooling Mode :
water cooling
Rollersurface :
Smooth
Gap Adjustment :
Manual Or Automatic Or Hydraulic
Use :
Compounding Rubber And Plastics
Material :
steel casting
Driving Motor Power :
18.5KW
Rollerstructure :
Cast Iron
Front Roll Speed :
14.1 m/min
Port :
Qingdao
Machine Type :
Rubber mixing mill machine
Motor :
AC Motor
Description

The 10-Inch Rubber Open Mill With Electric Pitch Adjustment Is Suitable For Small-Scale Production

Product introduction:

A 10 - inch rubber mixing mill is a crucial piece of equipment in the rubber - processing industry.
1. General Description
It typically consists of two rollers. The rollers are usually 10 inches in diameter, which is a significant feature that determines the scale and capacity of the mixing process. These rollers are made of high - quality materials such as alloy steel or chilled cast iron. The surface of the rollers is designed to have high hardness and excellent wear - resistance to ensure a long - service life and maintain the precision of the mixing operation.
2. Working Mechanism
  • Shearing Force: As the two rollers rotate in opposite directions, the rubber material placed between them is subjected to a powerful shearing force. This shearing action breaks the polymer chains of the rubber, allowing for better dispersion of additives like fillers and chemicals. For example, when carbon black is added to the rubber, the shearing force helps to distribute it evenly throughout the rubber matrix, which is essential for improving the physical properties of the final rubber product such as tensile strength and abrasion resistance.
  • Compression and Kneading: The rollers also apply pressure on the rubber, squeezing out air bubbles and any trapped moisture. The kneading effect is achieved as the rubber is continuously drawn into the nip between the rollers, folded, and turned over. This repeated process helps to blend different rubber components and additives thoroughly. For instance, in the production of rubber compounds for seals, the kneading action ensures that the plasticizers and antioxidants are well - incorporated into the rubber to enhance its flexibility and durability.
3. Key Components and Their Functions
  • Roller Adjustment System: The distance between the two rollers can be adjusted according to the specific requirements of the rubber - mixing process. This adjustment allows for different thicknesses of the rubber sheet to be produced and also accommodates the varying viscosities of different rubber formulations. For example, for a softer rubber compound, a slightly wider roller gap might be used compared to a harder compound.
  • Drive System: Comprising an electric motor, a reducer, and couplings, the drive system provides the necessary rotational power to the rollers. The speed and torque of the rollers can be precisely controlled to ensure the optimal mixing conditions. The rotational speed of the rollers can range from a few revolutions per minute to higher speeds depending on the type of rubber and the mixing intensity required.
  • Temperature - control System (if available): Some advanced 10 - inch rubber mixing mills are equipped with a temperature - control mechanism. This system uses heating or cooling media to maintain the rollers at a specific temperature. The control of the roller temperature is vital because the viscosity of the rubber is highly temperature - dependent. For example, in the case of thermosensitive rubber materials, maintaining a consistent temperature during mixing can prevent premature cross - linking or hardening of the rubber.
4. Applications
  • Automotive Industry: It is widely used in the production of various automotive rubber parts such as tires, hoses, and seals. In tire manufacturing, the mixing mill is used to blend natural rubber and synthetic rubber with other components like vulcanizing agents and reinforcing fillers to create the rubber compound that forms the tire tread and sidewalls.
  • Industrial Rubber Goods: For the production of industrial rubber products such as conveyor belts, gaskets, and vibration - damping mounts. The mixing mill ensures that the rubber compounds have the right consistency and homogeneity to meet the specific performance requirements of these products. For example, in the production of conveyor belts, the rubber compound needs to have good tensile strength and wear - resistance, which are achieved through the proper mixing of rubber and additives in the mixing mill.
