Specifications
Brand Name :
JINGNING
Model Number :
CC2F
Certification :
CE
Place of Origin :
China
MOQ :
1
Size :
DN80----DN3000
Material :
Ductile Iron，Stainless Steel,Carbon Steel
Warranty Time :
18 months
Technicals :
Cast
Working Temperature :
-30~400 ℃
Samples :
Free
In stock quantity :
2000
Product Name :
Pipe fittings
Description

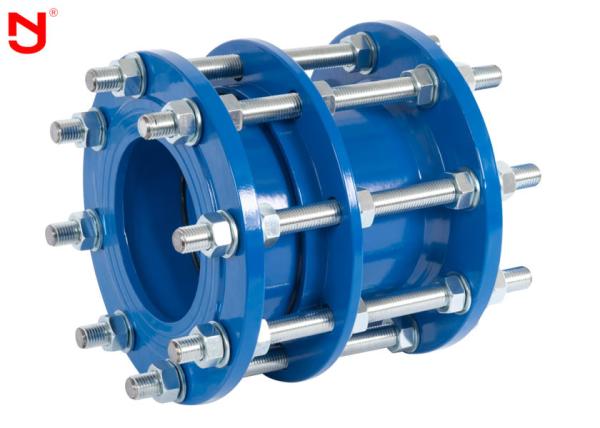

Big Size Range Valve Dismantling Joint

Dismantling joint is composed of main body, sealing ring, follower, expansion pipe, it is the new product to connect pump and valve with pipelines. Dismantling joint applies to one side connect to flange, the other side weld to pipeline. When installation, adjust length of product at both ends with pipes or flanges, then screw down gland bolts and make them into a whole, and leave certain displacement amount, to convenient for install and maintain, also available for adjustment according to actual size. It can transmit axial thrust to whole pipeline, not only improved working efficiency, but also protected pump and valves.

Large Size Pipe Dismantling Joint , Dismantling Joint Flange Adaptor Valve -30-400 ℃


cast iron expansion flanged universal dismantling joint expanion joint

C2F dismantling joint

CC2F double flanged power delivery joint

BF Single flange limited expansion joint

AF loose flange flexible joint

telescopic joint

Dismantling joint size DN50-DN2000
Dismantling Joint Pressure Grade PN10,PN16,PN25
Bolts, Nuts and Washers Material: Carbon Steel Grade 4.8 with Zinc Coating, Epoxy Coating or Dacromet Coating; Or Stainless Steel upon customers request.
Tie rod material Carbon Steel Grade 4.8 with Zinc Coating, Epoxy Coating or Dacromet Coating; Or Stainless Steel upon customers request.
Gasket material For water or Gas : NBR Grade A
For drinking water : EPDM rubber to BS2494:1990 type W
For drinking water and sewage: SBR Grade F
Dismantling coating Fusion Bonded Epoxy Coating inside and outside, or bitumen painting upon customers request.
Application Construction, water supply and drainage, and heavy industry, refrigeration, sanitation, plumbing, etc

Large Size Pipe Dismantling Joint , Dismantling Joint Flange Adaptor Valve -30-400 ℃

DN

Pipe Dia.

Flange joint size

Installation dimension

Expansion δ

Weight (kg)

Flange outer dia.

Dia. of bolt hole

Bolt

Max

Min

No.

Thickness

65

76

185

145

4

18

220

180

40

13.1

80

89

200

160

8

20

220

180

40

15.0

150

168

285

240

8

22

220

180

40

33.8

200

219

340

295

8

24

220

180

40

41.0

250

273

395

350

12

24

220

180

40

55.1

300

325

445

400

12

24

245

195

50

68.3

400

426

565

515

16

26

245

195

50

101.3

Our tenet: your trust is our honor and we will manufacture high- quality products for you.

we can design and make the products according to your drawings and techincal requirements.The quality is better and the price is lower than the similar products another company make.
