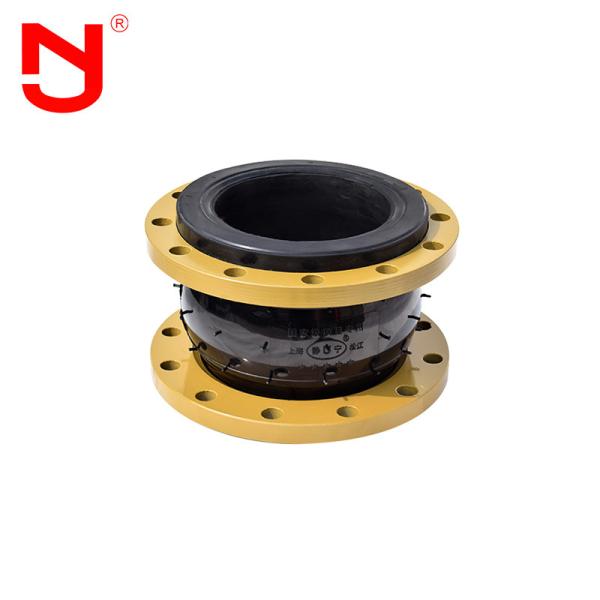

Flanged Connector PN16 EPDM Expansion Joint Flexible Rubber Compensator
Flanged Connector PN16 EPDM Expansion Joint Flexible Rubber Compensator
Flanged Connector PN16 EPDM Expansion Joint Flexible Rubber Compensator
Flanged Connector PN16 EPDM Expansion Joint Flexible Rubber Compensator
Flanged Connector PN16 EPDM Expansion Joint Flexible Rubber Compensator
Flanged Connector PN16 EPDM Expansion Joint Flexible Rubber Compensator
Flanged Connector PN16 EPDM Expansion Joint Flexible Rubber Compensator
Flanged Connector PN16 EPDM Expansion Joint Flexible Rubber Compensator
Specifications
Brand Name :
JINGNING
Model Number :
RLJS
Certification :
CE，ISO
Place of Origin :
China
MOQ :
1
Payment Terms :
Western Union, T/T, L/C, D/A, D/P, MoneyGram
Supply Ability :
10000 sets per week
Delivery Time :
5--15 working days
Packaging Details :
carton or wooden
OEM :
17Years' experience
Product name :
Flanged Connector PN16 EPDM Expansion Joint Flexible Rubber Compensator
Working pressure :
-0.2~4.5Mpa
Keyword :
EPDM Expansion Joint
Working Temperature :
-30~130℃
Material :
EPDM,NBR,SBR,NR，PTFE,FKM,IIR,CR
Burst Pressure :
6.0Mpa
Technical :
Vulcanized,Casting
Description

Flanged Connector PN16 EPDM Expansion Joint Flexible Rubber Compensator

EPDM expansion joint can also be called: expansion joint rubber, rubber flexible joint, soft joint, flexible rubber joint, rubber expansion joint, shock absorption throat, shock absorber, etc. EPDM expansion joint is a pipe connector with high elasticity, high air tightness, medium resistance and weather resistance, The EPDM expansion joint is usually made of inner rubber layer, which can reduce the vibration and noise of the pipeline and compensate the thermal expansion and cold contraction caused by the temperature change.

Performance characteristics of EPDM expansion joint

1. The EPDM expansion joint has the advantages of small volume, light weight, good elasticity and convenient installation and maintenance.

2. After installation, the EPDM expansion joint can absorb the lateral, axial and angular displacement caused by the vibration of the pipeline, and is not limited by the non concentric pipeline and non parallel flange.

3. After the EPDM expansion joint is installed, the noise caused by the vibration of the pipeline water pump can be reduced, and the vibration absorption ability is strong.

4. The inner seamless high pressure EPDM expansion joint can effectively prevent the corrosive medium from eroding the inner wall of the rubber joint in the high temperature resistant, acid alkali resistant and oil resistant pipeline, and improve the service life.

Technical data of EPDM expansion joint

Main data of EPDM expansion joint
Nominal diameter(DN) Length Axial displacement(mm) Horizontal displacement Deflexion angle
mm inch mm Extension Compression mm (a1+a2)°
32 1 1/4 95 6 9 9 15°
40 1 1/2 95 6 10 9 15°
50 2 105 7 10 10 15°
65 2 1/2 115 7 13 11 15°
80 3 135 8 15 12 15°
100 4 150 10 19 13 15°
125 5 165 12 19 13 15°
150 6 180 12 20 14 15°
200 8 210 16 25 22 15°
250 10 230 16 25 22 15°
300 12 245 16 25 22 15°
350 14 255 16 25 22 15°
400 16 255 16 25 22 15°
450 18 255 16 25 22 15°
500 20 255 16 25 22 15°
600 24 260 16 25 22 15°

Note: 1. The special requirements of EPDM expansion joint can be customized according to user's drawing. Flange standard is GB / t9115.1-2000. Various flange standards (GB, JB, Hg, CB, ANSI, DIN, BSEN, NF, en, JIS, ISO, etc.) can be selected for production. The rubber ball of EPDM expansion joint can be used as natural rubber, EPDM, chloroprene rubber, butyl rubber, butadiene rubber, fluororubber, etc. when the EPDM expansion joint above DN200 is used for suspension water supply, the pipeline must have fixed support or fixed support, otherwise the EPDM expansion joint shall be installed with anti falling device.

EPDM expansion joint details show

EPDM expansion joint production Flow

Do you know how is a EPDM expansion joint made?Let's see with JINGNING.

Flanged Connector PN16 EPDM Expansion Joint Flexible Rubber Compensator

It is very important to know the compatibility between the medium of EPDM expansion joint and the selected EPDM expansion joint material, the range of full temperature, full pressure and full vacuum, the required movement of EPDM expansion joint, and the size between pipe flanges when selecting the appropriate EPDM expansion joint. With this information, Jingning application engineers can help determine the ideal EPDM expansion joint for any application.

EPDM expansion joint advantage

1. Factory price of EPDM expansion joint.

2. 16 years of manufacturing experience, 5 years of export experience.

3. Strict quality inspection, the quality far exceeds the industry standard.

4. EPDM expansion joint mold has a variety of specifications, support customization, OEM.

5. Provide free samples of EPDM expansion joint.

6. EPDM expansion joint are in large stock.

EPDM expansion joint application

EPDM expansion joint is widely used in chemical engineering, construction, water supply, drainage, petroleum, light and heavy industry, refrigeration, sanitation, water heating, fire protection, electric power and other basic projects because of its good comprehensive performance. According to the different rubber materials of EPDM expansion joint, EPDM expansion joint can be made into various varieties, such as acid resistance, alkali resistance, corrosion resistance, oil resistance, high temperature resistance, radiation resistance, wear resistance, aging resistance, etc. the EPDM expansion joint can adapt to a variety of media and environment.

FAQ

Q1What`s the rubber material of EPDM expansion joint?

A1: EPDM,CR,NBR,etc .It depends on the working enviroment and media.

Q2: Is the flange galvaized of EPDM expansion joint?

A2: Yes,we have electronic galvanized and hot dip galvanized flanges.We also have painted flanges.

Q3: Can I get a sample?

A3: Of cause. We could delivery by Express,by air or by sea.

Q4: What is the MOQ of EPDM expansion joint?

A4: 1 Piece, You can also get it as a sample to test our product quality ,then you can purchase order to us .
