DN25-DN1200 stainless steel bellows flexible metal expansion joint bellows compensator

Product Introduction

Bellow expansion joint is a compensation element, effective use of bellows telescopic body deformation, dimensional change in absorption pipeline, pipe, thermal expansion and contraction caused by pipeline transverse and angular displacement. It is mainly used for noise reduction and vibration reduction. It is widely used in modern industry.

Product structure composition

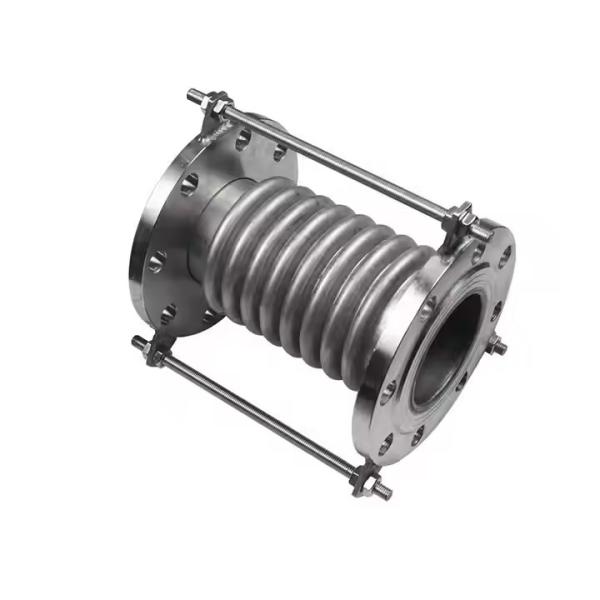

1. Bellows: The bellows is the main body of the corrugated compensator, which is an elastic element responsible for absorbing the displacement of the pipeline through its expansion and contraction.
2. End pipe: The end pipe is a part of the corrugated compensator and is used to connect the two ends of the pipe.
3. Bracket: The bracket is used to support and fix the bellows to ensure its stability and safety in working condition.
4. Flange: The flange is the interface connecting the corrugated compensator and other pipeline components, which is bolted to ensure the tightness and tightness of the connection.
5. Conduit: The conduit is the part of the corrugated compensator used to guide the flow of the medium, usually connected with the bellows and the end pipe.

Product parameters

How to use the product

1. Before installation, the corrugated compensator should check its model, specification and pipeline configuration to meet the design requirements.
2. Attention should be paid to the corrugated compensator with an inner sleeve to make the direction of the inner sleeve consistent with the direction of medium flow, and the hinge rotation plane of the hinge corrugated compensator should be consistent with the displacement rotation plane.
3. The corrugated compensator that needs to be "cold tightened", and the auxiliary components used for pre-deformation should be removed after the pipeline is installed.
4. It is strictly forbidden to adjust the installation deviation of the pipeline by the method of deformation of the corrugated compensator, so as not to affect the normal function of the compensator, reduce the service life and increase the load of the piping, equipment and supporting components.
5. During the installation process, welding slag is not allowed to splash on the surface of the corrugated shell, and the corrugated shell is not allowed to be damaged by other machinery.
6. After the installation of the pipe system is completed, the color-assisted positioning components and fasteners used for installation and transportation on the corrugated compensator should be removed as soon as possible, and the limiting device should be adjusted to the specified position according to the design requirements, so that the pipe system has sufficient compensation ability under environmental conditions.
7. All the moving elements of the compensator shall not be stuck by external components or limit their range of activity, and the normal operation of each moving part shall be carried out.

Inventory display

FAQ

Q: What are your payment terms?

A: T/T (30% as deposit, the rest 70% will be paid before delivery), L/C at sight.

Q: Can I visit your factory before the order?

A: Yes, welcome to our factory to check the quality.

Q: Where is your nearest loading port?

A: Shanghai, Qingdao or Tianjin in China.

Q: What are the materials of corrugation?

A: Stainless steel 304, 316, 316L and so on.

Q: Is it possible to make products with different calibers and sizes?

A: Yes, the above are regular sizes, we can make them according to customer requirements.

Q: What are the media suitable for corrugated compensators?

A: Weak acid, weak alkali, hot water, oil and other media.
