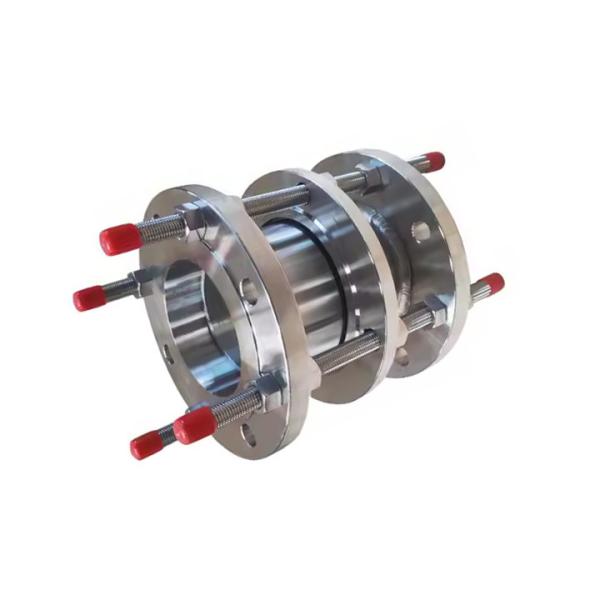

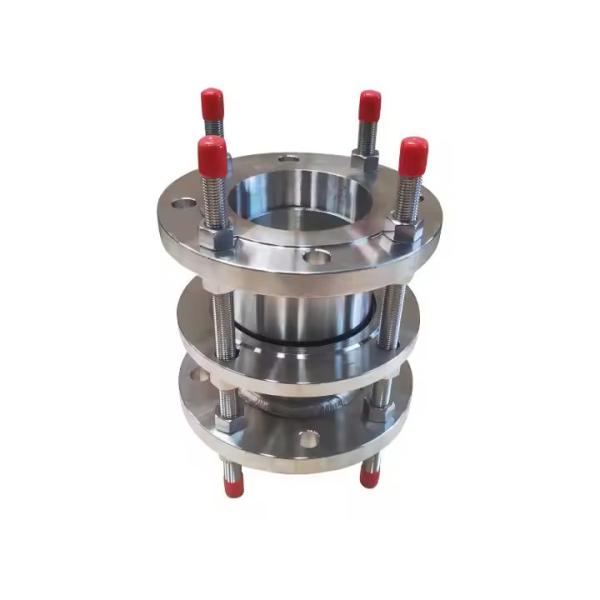

304 stainless steel C2F type detachable double flange loose sleeve force transmission expansion joint

Product structure features

The main components of the double flange force transfer joint include:
1. Body: The main part of the joint.
2. Sealing ring: Play a sealing role.
3. Gland: Used to fix the sealing ring.
4. Stretch and shorten the pipe: Allow the pipe to expand and contract within a certain range.
5. Force transmission screw: Transmit the pressure thrust of the connected parts and compensate for the pipeline error.

Product Features

1. Compensation ability: It can compensate for the installation error of the pipeline and improve the installation accuracy of the pipeline system.
2. Various materials: According to different uses, Q235 carbon steel, 304 stainless steel, ductile iron and other materials can be selected.
3. Easy installation and maintenance: It can be adjusted according to the size of the site, which is convenient for installation and maintenance.

Product parameters

304 stainless steel C2F type detachable double flange loose sleeve force transmission expansion joint

NO NAME QUANTITY MATERIAL
1 Body 1 Stainless steel SS304/316
2 Rubber sealing ring 1 EPDM,NBR,etc.
3 Gland 1 Stainless steel SS304/316
4 Limit stub 1 Stainless steel SS304/316
5 Bolt n Q235B,20#
6 Nut Tn Q235B,20#

DN

Tube outer

diameter

 Dimensions Flange connection size
0.6Mpa 1.0Mpa
L ΔL D D1 n-Th b D D1 n-Th b
65 76 200 40 160 130 4-M12 16 185 145 4-M16 20
180 89 190 150 4-M16 18 200 160 8-M16 22
100 114 210 170 220 180 24
125 140 240 200 8-M16 20 250 210 26
150 168 265 225 285 240 8-M20
200 219 320 280 22 340 295 28
250 273 375 335 12-M16 24 395 350 12-M20
300 325 220 50 440 395 12-M20 24 445 400 12-M20 28
350 377 490 445 26 505 460 16-M20 30
400 426 540 495 16-M20 28 565 515 16-M24 32
450 480 595 550 28 615 565 20-M24 32
530 530 645 600 20-M20 30 670 620 34
600 630 240 755 705 20-M24 30 780 725 20-M27 36
700 720 860 810 24-M24 32 895 840 24-M27 40

Tips:The above data is only part of the data, if you need a special size, please contact us.

Product application field

304 stainless steel C2F type detachable double flange loose sleeve force transmission expansion joint

Double flange power transmission joints are widely used in oil and natural gas and other fluid transmission pipelines, as well as pipeline connections in thermal power generation, nuclear power, hydropower and other fields. In addition, this joint is also often used in the pipeline connection of urban water supply pipe networks, sewage treatment plants, water plants and other places. It can not only ensure the safe operation of the pipeline system, but also extend the service life of the pipeline and reduce maintenance costs.
