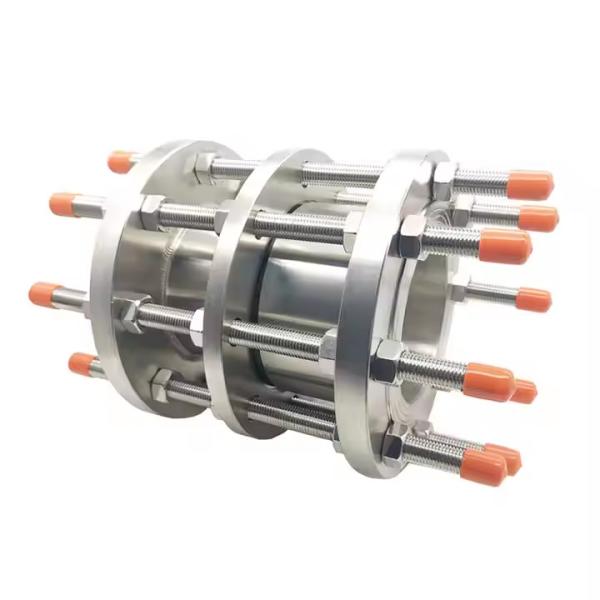

BS Standard PN10 PN16 SS316 Stainless Steel Double Flange Telescopic Dismantling Joint

Specifications

Brand Name :

Liang He

Model Number :

C2F

Certification :

ISO 9001

Place of Origin :

Henan,China

MOQ :

1 piece

Price :

＄24.3-34.6 per set

Payment Terms :

T/T, D/A, D/P, Western Union, MoneyGram, L/C

Supply Ability :

10000 piece per month

Delivery Time :

1-7 day

Packaging Details :

cartons,wooden cases

material of flange :

carbon steel,cast steel,cast iron,SS304.ss316

sample :

free sample

Size :

Customized Size

Product name :

dismantling joint

Customized support :

OEM, ODM

Usage :

Joining Pipe Lines

Type :

Concentric

Body material :

Q235A

Application :

Water Pipe System

Description

BS Standard PN10 PN16 SS316 Stainless Steel Double Flange Telescopic Dismantling Joint

Product structure composition

1. Flange body: The detachable joint is usually composed of a long flange body and a short flange body, which are used to connect pipes or equipment.
2. Sealing ring: The sealing ring is located between the flange bodies, which plays a sealing role to prevent liquid or gas leakage.
3. Stud: The stud is used to connect the flange body to ensure the tight connection of the joint.
4. Washer: The washer is placed between the stud and the nut to further enhance the tightness of the connection.
5. Nut: The nut is used to tighten the stud and ensure the stable connection of the joint.

Product Advantages
1. Flexible operation, fast and light opening and closing. Low fluid resistance.
2. Simple structure, relatively small size, light weight, easy to maintain.
3. The sealing performance is good, not limited by the installation direction, and the flow direction of the medium can be arbitrary.
4. No vibration, low noise.

Product parameters

Name	BS Standard PN10 PN16 SS316 Stainless Steel Double Flange Telescopic Dismantling Joint
Size	DN50-DN3200mm
Pressure	0.6-4.0MPa
Temperature	-10℃-70℃
Gasket Material	EPDM.
Flange Material	SS304,SS316,Q235
Flange Standard	ANSI,DIN,JIS,BS,etc.
Medium	Flowing water,neutral liquids and sewage

DN	PN10						PN16
	D	K	Bolt holes		L	H	D	K	Bolt holes		L	H
	D	K	Bolt	N-φd2	L	H	D	K	Bolt	N-φd2	L	H
40	150	110	M16	4-19	180	330	150	110	M16	4-19	180	330
50	165	125	M16	4-19	180	330	165	125	M16	4-19	180	330
65	185	145	M16	4-19	180	330	185	145	M16	4-19	180	330
80	200	160	M16	8-19	200	350	200	160	M16	8-19	200	350
100	220	180	M16	8-19	200	350	220	180	M16	8-19	200	350
125	250	210	M16	8-19	200	350	250	210	M16	8-19	200	350
150	285	240	M20	8-23	200	350	285	240	M20	8-23	200	350
200	340	295	M20	8-23	220	380	340	295	M20	12-23	220	380
250	400	350	M20	12-23	220	380	400	355	M24	12-28	230	400
300	455	400	M20	12-23	220	380	455	410	M24	12-28	250	420
350	505	460	M20	16-23	230	400	520	470	M24	16-28	260	440
400	565	515	M24	16-28	230	400	580	525	M27	16-31	270	460
450	615	565	M24	20-28	250	420	640	585	M27	20-31	270	460
500	670	620	M24	20-28	260	450	715	650	M30	20-34	280	490
600	780	725	M27	20-31	260	460	840	770	M33	20-37	300	520

Tips:The above data is only part of the data, if you need a special size, please contact us.

Product installation precautions

Before installation, the model, specification and pipe configuration of the joint should be checked to ensure that the design requirements are met. At the same time, prepare the necessary tools such as wrenches, screwdrivers, measuring tools, etc., and check the specifications and types of dismantling joints to ensure that they match the size of the pipe.
