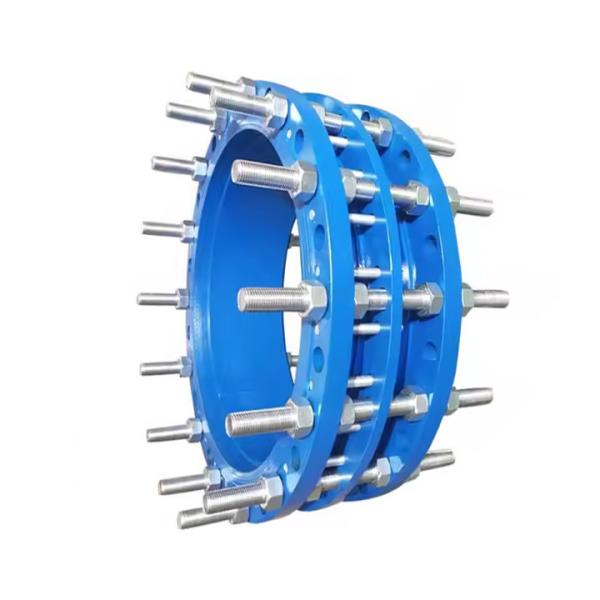

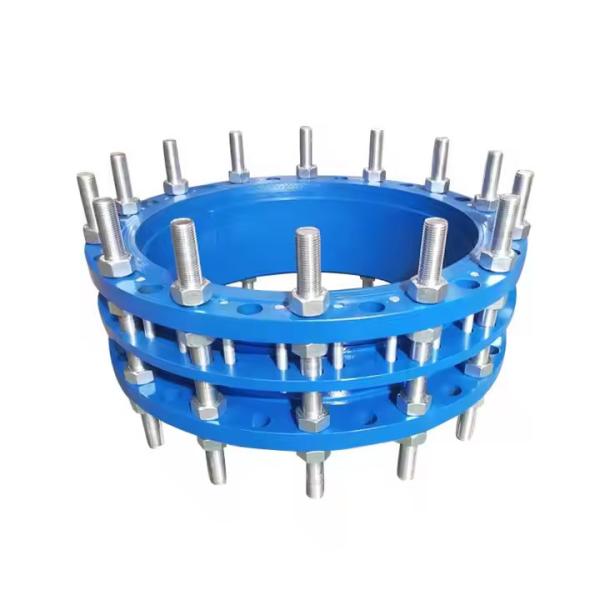

EN 1092-2 Ductile Iron Double Flange Loose Sleeve Force Transmission Joints
EN 1092-2 Ductile Iron Double Flange Loose Sleeve Force Transmission Joints
EN 1092-2 Ductile Iron Double Flange Loose Sleeve Force Transmission Joints
EN 1092-2 Ductile Iron Double Flange Loose Sleeve Force Transmission Joints
EN 1092-2 Ductile Iron Double Flange Loose Sleeve Force Transmission Joints
EN 1092-2 Ductile Iron Double Flange Loose Sleeve Force Transmission Joints
Specifications
Brand Name :
Liang He
Model Number :
C2F
Certification :
ISO 9001
Place of Origin :
Henan,China
MOQ :
1 piece
Price :
＄58-168 per set
Payment Terms :
T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability :
6000 piece per month
Delivery Time :
3-7day
Packaging Details :
cartons,wooden cases
Surface treatment :
Hot Dipped Galvanized
Body material :
Ductile Cast Iron
Warranty :
1 year
OEM :
Support
Application :
Pipe Lines Connect
Size :
Customized Size
Technics :
Casting
Shape :
Equal
Head Code :
Round
Description

EN 1092-2 Ductile Iron Double Flange Loose Sleeve Force Transmission Joints

Product Introduction

The detachable double flange force transmission joint is suitable for the pipeline with flange connection on both sides, and is used as a fitting to connect the pipeline in the pipeline system, which can reduce the pressure of the pipeline in the work, and is safe, reliable and stable. The detachable double flange power transmission joint has the characteristics of simple structure, easy to use, strong tightness and wide range of use.

Product Role

The double flange power transmission joint is mainly used for the loose sleeve joint press of pumps, valves and other accessories. The double-flange loose sleeve power transmission joint is composed of loose sleeve expansion joint, short pipe flange, force transmission screw and other components. It transmits the pressure thrust (blind force) of the connected parts and compensates for the piping error, and cannot absorb the axial displacement. It is mainly used for loose sleeve connection of pumps, valves, pipelines and other accessories.

Product parameters

EN 1092-2 Ductile Iron Double Flange Loose Sleeve Force Transmission Joints EN 1092-2 Ductile Iron Double Flange Loose Sleeve Force Transmission Joints

NO NAME QUANTITY MATERIAL
1 Body 1 QT450-10,Q235B
2 Rubber sealing ring 1 EPDM,NBR,etc.
3 Gland 1 QT450-10,Q235B
4 Limit stub 1 Q235B
5 Bolt n Q235B,20#
6 Nut Tn Q235B,20#

DN

Tube outer

diameter

 Dimensions Flange connection size
0.6Mpa 1.0Mpa
L ΔL D D1 n-Th b D D1 n-Th b
65 76 200 40 160 130 4-M12 16 185 145 4-M16 20
180 89 190 150 4-M16 18 200 160 8-M16 22
100 114 210 170 220 180 24
125 140 240 200 8-M16 20 250 210 26
150 168 265 225 285 240 8-M20
200 219 320 280 22 340 295 28
250 273 375 335 12-M16 24 395 350 12-M20
300 325 220 50 440 395 12-M20 24 445 400 12-M20 28
350 377 490 445 26 505 460 16-M20 30
400 426 540 495 16-M20 28 565 515 16-M24 32
450 480 595 550 28 615 565 20-M24 32
530 530 645 600 20-M20 30 670 620 34
600 630 240 755 705 20-M24 30 780 725 20-M27 36
700 720 860 810 24-M24 32 895 840 24-M27 40
800 820 350 60 975 920 24-M27 34 1015 950 24-M30 44
900 920 1075 1020 24-M27 36 1115 1050 28-M30 46
1000 1020 1175 1120 28-M27 36 1230 1160 28-M33 50
1200 1220 370 1405 1340 32-M30 40 1455 1380 32-M36 56
1400 1420 1630 1560 36-M33 44 1675 1590 36-M39 62
1600 1620 380 1830 1760 40-M33 48 1915 1820 40-M45 68
1800 1820 2045 1970 44-M36 50 2115 2020 44-M45 70
2000 2020 400 2265 2180 48-M39 54 2325 2230 48-M45 74
2400 2420 2475 2390 52-M39 60 2550 2440 52-M52 80
2200 2220 2685 2600 56-M39 62 2760 2650 56-M52 82
2600 2620 450 80 2905 2810 60-M45 64 2960 2850 60-M52 88
2800 2820 3115 3020 64-M45 68 3180 3070 64-M52 94
3000 3020 3315 3220 68-M45 70 3405 3290 68-M56 100
3200 3220 3525 3430 72-M45 76 / / / /

Product Installation
The product is suitable for pipes connected with flanges on both sides, adjust the installation length of both ends of the product and the flange during installation, tighten the gland bolts diagonally, use them to become a whole, and have a certain amount of displacement, which is convenient for installation and maintenance, and adjusts according to the size of the site when it is on site. The counteraxial thrust can be transmitted to the entire pipe during operation.

Different types of products are displayed

EN 1092-2 Ductile Iron Double Flange Loose Sleeve Force Transmission Joints EN 1092-2 Ductile Iron Double Flange Loose Sleeve Force Transmission Joints EN 1092-2 Ductile Iron Double Flange Loose Sleeve Force Transmission Joints EN 1092-2 Ductile Iron Double Flange Loose Sleeve Force Transmission Joints

Single flange limit Double flange force Dismantling joint Double flange limit

expansion joint transmission joint expansion joint

Inventory display

EN 1092-2 Ductile Iron Double Flange Loose Sleeve Force Transmission Joints

Workshop display

EN 1092-2 Ductile Iron Double Flange Loose Sleeve Force Transmission Joints
