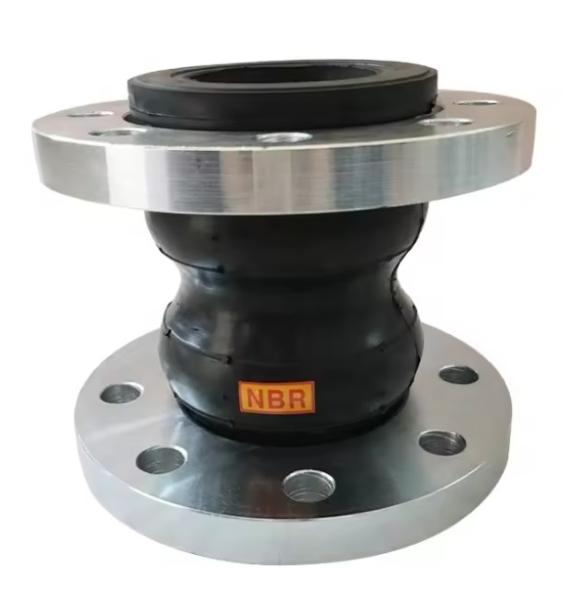

Asme Corrosion Resistant Design Double Sphere Rubber Expansion Joint Dn32 Pressure Ring Plumbing Material
Asme Corrosion Resistant Design Double Sphere Rubber Expansion Joint Dn32 Pressure Ring Plumbing Material
Asme Corrosion Resistant Design Double Sphere Rubber Expansion Joint Dn32 Pressure Ring Plumbing Material
Asme Corrosion Resistant Design Double Sphere Rubber Expansion Joint Dn32 Pressure Ring Plumbing Material
Specifications
Brand Name :
Lianghe
Model Number :
KST
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1 set
Price :
$12-58.6 per set
Payment Terms :
T/T, Western Union, D/A, D/P, MoneyGram, L/C
Supply Ability :
6000 sets per month
Delivery Time :
5-12 work days
Packaging Details :
wooden case
Size :
DN25-DN3000
Flange Material :
Carbon Steel,Ductile Iron
Connection Type :
Flange
Keyword :
Double Flexible Rubber Expansion Joint
Installation Method :
Horizontal or vertical installation
Surface Treatment :
Painting/Epoxy Coating
Warranty :
18 months
Description

Asme Corrosion Resistant Design Dn32 Pressure Ring Plumbing Material double Flexible Rubber Expansion Joint

Double ball rubber joint can be divided into single ball, double ball, different diameter body, curved ball and wind pressure coil.

The product can reduce vibration and noise, and can compensate thermal expansion and contraction caused by temperature change. It is widely used in various pipeline systems.

Double sphere rubber bellows coupling is generally consist of the inner and the outer rubber layer and fabric reinforced layer (the enhancement layer has a multilayer spreading cord fabric), vulcanization molded in high temperature and high pressure , then assembly together with rubber tube and metal flange or parallel joint sleeve.

Characteristics of double sphere rubber expansion joint

1. Small size, light weight, good elasticity, easy installation and maintenance.
2. Horizontal, vertical and angular displacements can be generated during installation, which is not limited by eccentric and non-parallel flanges of user pipes.
3. Vibration and noise reduction function
4. Strong corrosion resistance and long service life.

Product Parameters

Name of product Double Flexible Rubber Expansion Joint
Structure of product Inner and outer rubber,nylon cord fabric,steel wire and flange
Material of rubber EPDM, NR, NBR,PTFE, FKM,etc
Material of flange SS304,SS316,carbon steel, ductile iron,etc
Standard of flange DIN, BS, ANSI, JIS,etc.
Product classification Single sphere , Double sphere, Union type,etc

Double Flexible Rubber Expansion Joint Connection Data Sheet

Nominal diameter Length(mm) Axial displacement(mm) Lateral displacement Angular displacement
mm inch Elongation Compression
40 1 1/2 165 30 50 45 35°
50 2 165 30 50 45 35°
65 2 1/2 175 30 50 45 35°
80 3 175 35 50 45 35°
100 4 225 35 50 40 35°
125 5 230 35 50 40 35°
150 6 325 35 50 40 35°
200 8 325 35 50 40 35°
250 10 325 35 60 35 30°
300 12 325 35 60 35 30°
350 14 350 35 60 35 30°
400 16 350 35 60 35 30°
450 18 350 35 60 35 30°
500 20 350 35 60 35 30°
600 24 400 35 60 35 30°

Double ball types with different rubber materials

Asme Corrosion Resistant Design Double Sphere Rubber Expansion Joint Dn32 Pressure Ring Plumbing Material

Packaging & Shipping
1. plastic film wrapped products

2. packing in cartons (according to product size and caliber)

3. loading wooden cases (1.1m*1.1m*1.1m)

4.Transportation: by sea or by air.

Asme Corrosion Resistant Design Double Sphere Rubber Expansion Joint Dn32 Pressure Ring Plumbing Material

FAQ

Q: Can you provide drawings and technical data?
A: Yes, our professional technical department will design and provide drawings and technical data.

Q: What are the flange standards?
A: Flange standards include ANSI 150Lb, DIN PN16, BS4504, JIS 10K, etc.Of course, we can also customize according to the flange data you provide.

Q: How can you guarantee the quality or any warranty?
A: If any quality problems during use, all the products can be returned or according to consumer's requests.

Q: Can the length of the sphere be customized?
A: We can customize it according to your requirements, but it depends on the quantity of your products. The more quantity, the more advantageous the price.
