DN50 Ss304 pn16 Flange Chemical Industry Flexible PTFE Lining Rubber Expansion Joint
DN50 Ss304 pn16 Flange Chemical Industry Flexible PTFE Lining Rubber Expansion Joint
DN50 Ss304 pn16 Flange Chemical Industry Flexible PTFE Lining Rubber Expansion Joint
DN50 Ss304 pn16 Flange Chemical Industry Flexible PTFE Lining Rubber Expansion Joint
Specifications
Brand Name :
Lianghe
Model Number :
KXT
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1 set
Price :
$16.5-35.8per set
Payment Terms :
T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability :
6000 set per month
Delivery Time :
5-8 work days
Packaging Details :
Inside:Plastic film packaging and carton box. Outside:Export wooden cases.
Product name :
PTFE Lining Rubber Expansion Joint
Size :
DN15-DN4000
Body material :
EPDM, NR, NBR,PTFE, FPM,etc
Flange material :
SS304,SS316,carbon steel, ductile iron,etc
Applicable Media :
Corrosive liquids（strong acid and alkali）
Working pressure :
6~40bars(PN6~PN40)
Working temperature :
-15~80℃(-30~150℃)
Description

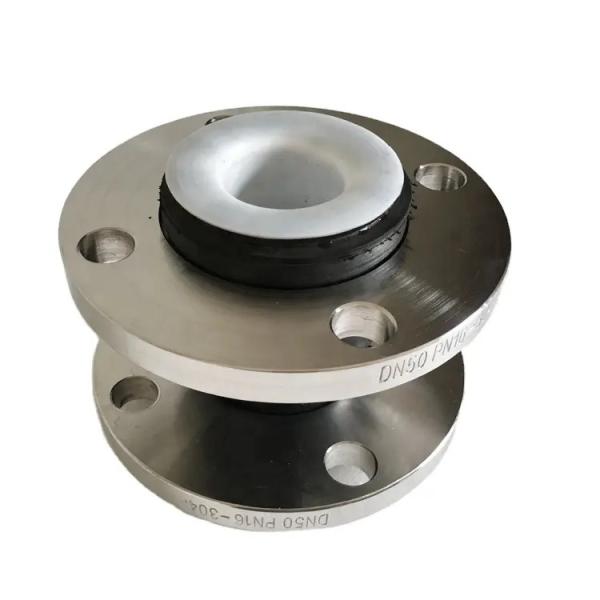

DN50 Ss304 pn16 Flange Chemical Industry Flexible PTFE Lining Rubber Expansion Joint

The PTFE lined rubber joint is based on the original conventional rubber joint, with a PTFE coating lining added inside, which can effectively protect the rubber joint from corrosion and medium erosion.

For example, strong acid, strong alkali or high temperature oil, the PTFE coating can effectively adhere to the inner wall of the pipeline, preventing medium erosion or separation caused by pipeline stretching and contraction, so that the original mechanical and physical properties of the flexible rubber joint are not affected, and it can still compensate for pipeline vibration, absorb pipeline displacement, and reduce pipeline noise.

Application of PTFE Lined Rubber Expansion Joints:

It is more common in chemical pipelines, mainly used in pipeline equipment with strong acid and alkali, strong high temperature, and strong corrosion, especially in corrosive media.
Including: conveying pipelines, exhaust pipes, steam pipelines of corrosive gases, rolling mill high-pressure oil pipes, heat exchangers, tower tank linings, valves and other chemical equipment.

Main connection dimension
Length
(mm)		 Axial displacement(mm) Horizontal movement Deflection angle Special length
mm Inch Compression Extension
32 1 1/4 95 9 6 9 15° 130/150/200
40 1 1/2 95 10 6 9 15° 130/150/200
50 2 105 10 7 10 15° 130/150/200
65 2 1/2 115 13 7 11 15° 130/150/200
80 3 135 15 8 12 15° 130/150/200
100 4 150 19 10 13 15° 130/200
125 5 165 19 12 13 15° 130/150/200
150 6 180 20 12 14 15° 130/150/200
200 8 210 25 16 22 15° 130/150/200
250 10 230 25 16 22 15° 130/150/200
300 12 245 25 16 22 15° 130/150/200
350 14 255 25 16 22 15° 130/150/200
400 16 255 25 16 22 15° 130/150/200
450 18 255 25 16 22 15° 200
500 20 255 25 16 22 15° 200
600 24 260 25 16 22 15° 300
700 28 260 25 16 22 15° 300
800 32 260 25 16 22 15° 300
900 36 260 25 16 22 15° 300
1000 40 260 26 18 24 15° 300
1200 48 260 26 18 24 15° 300

Structure of PTFE Lined Rubber Joint


DN50 Ss304 pn16 Flange Chemical Industry Flexible PTFE Lining Rubber Expansion Joint

NO Name Material
1 Flange Q235,SS304,SS316
2 Inner and outer rubber layer NR,EPDM,NBR,Neoprene
3 Lined PTFE
4 Pressurized ring steel wire strand
5 Frame Nylon cord fabric
