Industrial Turbine Double Flange Cast Steel Butterfly Valve With PTFE Liner
Industrial Turbine Double Flange Cast Steel Butterfly Valve With PTFE Liner
Industrial Turbine Double Flange Cast Steel Butterfly Valve With PTFE Liner
Industrial Turbine Double Flange Cast Steel Butterfly Valve With PTFE Liner
Specifications
Brand Name :
Liang He
Model Number :
SD343H
Certification :
ISO 9001
Place of Origin :
Henan,China
MOQ :
1 piece
Price :
＄105.00 set
Payment Terms :
T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability :
10000 piece per month
Delivery Time :
3-7 day
Packaging Details :
cartons,wooden cases
Body material :
Ductile Iron
Media :
gas, water, oil
Weight :
depens on differenct size
Seal material :
PTFE, stainless steel
Connection type :
Flange
Standard or Nonstandard :
Standard
Paint :
Painting or Spray
Port Size :
DN50-DN2000
Power :
Manual
Description

Industrial turbine double flange cast steel butterfly valve with PTFE liner

Hard-sealed turbine flange telescopic butterfly valve components

Hard-seated turbine flange telescopic butterfly valve is mainly composed of the following components:
1. Valve body: The valve body is the main part of the butterfly valve, which is usually made of carbon steel, stainless steel or chromium-molybdenum-vanadium steel.
2. Valve seat: Installed in the valve body, used to support and seal the valve disc, usually made of high-temperature, corrosion-resistant metal materials.
3. Butterfly plate: The key component of the butterfly valve, which is used to adjust the flow rate of the medium, and is made of metal materials.
4. Drive device: Including manual, electric, pneumatic and worm gear rod transmission, etc., used to control the opening and closing of the valve disc.
5. Metal seal: The hard seal butterfly valve adopts a metal-to-metal seal or an interchangeable metal seal, which is usually made of high-temperature and corrosion-resistant materials such as austenitic stainless steel.
6. Elastic compensation mechanism: Used to ensure the sealing effect, usually composed of spring and pressure plate, able to adapt to a certain temperature and pressure change.

Product Advantages

First, the structure is compact
The turbine flange telescopic butterfly valve adopts advanced structural design, the overall structure is compact, and the space occupied is small. At the same time, the valve has good telescopic performance and can adapt to different pipeline layout needs.
Second, the sealing performance is good
The turbine flange telescopic butterfly valve has superior sealing performance and can effectively prevent media leakage. The use of high-quality sealing materials makes the valve maintain excellent sealing effect in different working environments.

Third, easy to install
The valve is easy and quick to install, which can greatly shorten the engineering installation time. The flange connection method can achieve fast docking, which reduces the difficulty and cost of on-site installation.
Fourth, the scope of application is wide
Turbine flange telescopic butterfly valve is suitable for a variety of media working environment, such as steam, water, oil, etc. In addition, it can withstand high temperature and pressure, and is widely used in petroleum, chemical, electric power and other fields.

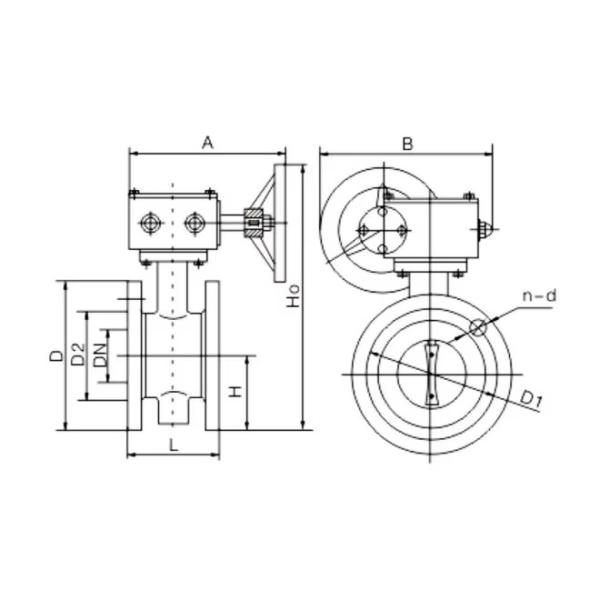

Product parameters

Industrial Turbine Double Flange Cast Steel Butterfly Valve With PTFE Liner

DN

(mm)

Structure

length

 Dimensions 0.6MPa 1.0MPa 1.6MPa

Weight

(kg)
H H0 A B D D1 D2 n-d D D1 D2 n-d D D1 D2 n-d
50 108 63 306 180 200 140 110 88 4-14 165 125 99 4-18 165 125 99 4-18 13
65 112 70 321 180 200 160 130 108 4-14 185 145 118 4-18 185 145 118 4-18 14
80 114 83 346 180 200 190 150 124 4-18 200 160 132 8-18 200 160 132 8-18 15.5
100 127 105 387 180 200 210 170 144 4-18 220 180 156 8-18 220 180 156 8-18 19.5
125 140 115 411 180 200 240 200 174 8-18 250 210 184 8-18 250 210 184 8-18 25.5
150 140 137 447 270 280 265 225 199 8-18 285 240 211 8-22 285 240 211 8-22 28.5
200 152 164 572 270 280 320 280 254 8-18 340 295 266 8-22 340 295 266 12-22 48
250 165 206 646 270 280 375 335 309 12-18 395 350 319 12-22 405 355 319 12-26 69
300 178 230 738 380 420 440 395 363 12-22 445 400 370 12-22 460 410 370 12-26 91
350 190 248 761 380 420 490 445 413 12-22 505 460 429 16-22 520 470 429 16-26 110
400 216 289 877 450 470 540 495 463 16-22 565 515 480 16-26 580 525 480 16-30 140
450 222 320 938 480 490 595 550 518 16-22 615 565 530 20-26 640 585 548 20-30 180
500 229 343 993 480 490 645 600 568 20-22 670 620 582 20-26 715 650 609 20-33 215
600 267 413 1131 480 490 755 705 667 20-26 780 725 682 20-30 840 770 720 20-36 290
700 292 478 1476 640 660 860 810 772 24-26 895 840 794 24-30 910 840 794 24-36 560
800 318 525 1533 640 660 975 920 878 24-30 1015 950 901 24-33 1025 950 901 24-39 910
900 330 585 1655 750 860 1075 1020 978 24-30 1115 1050 1001 28-33 1125 1050 1001 28-39 1500
1000 410 640 1765 850 900 1175 1120 1078 28-30 1230 1160 1112 28-36 1255 1170 1112 28-42 1750
1200 470 755 1995 850 900 1405 1340 1295 32-33 1455 1380 1328 32-39 1485 1390 1328 32-48 2180
1400 530 910 2310 1000 925 1630 1560 1510 36-36 1675 1590 1530 36-42 1685 1590 1530 36-48 2400
1600 600 1030 2595 1000 925 1830 1760 1710 40-36 1915 1820 1750 40-48 1930 1820 1750 40-56 2870
1800 670 1140 2810 1100 980 2045 1970 1918 44-39 2115 2020 1950 44-48 2130 2020 1950 44-56 3380
2000 760 1250 3100 1100 980 2265 2180 2125 48-42 2325 2230 2150 48-48 2345 2230 2150 48-62 4010

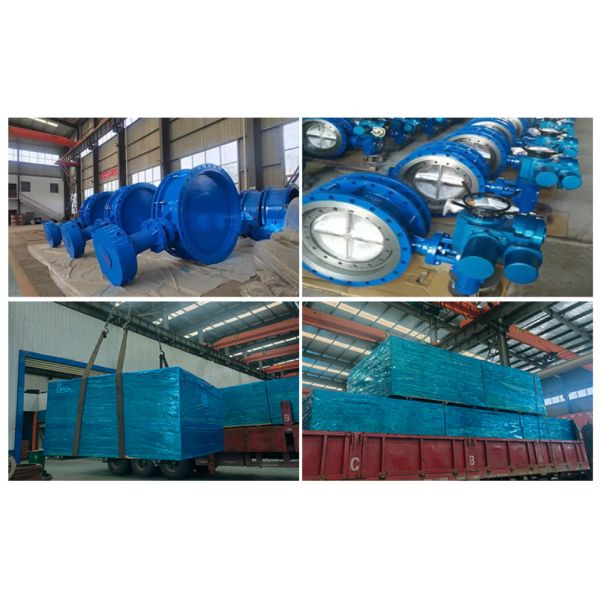

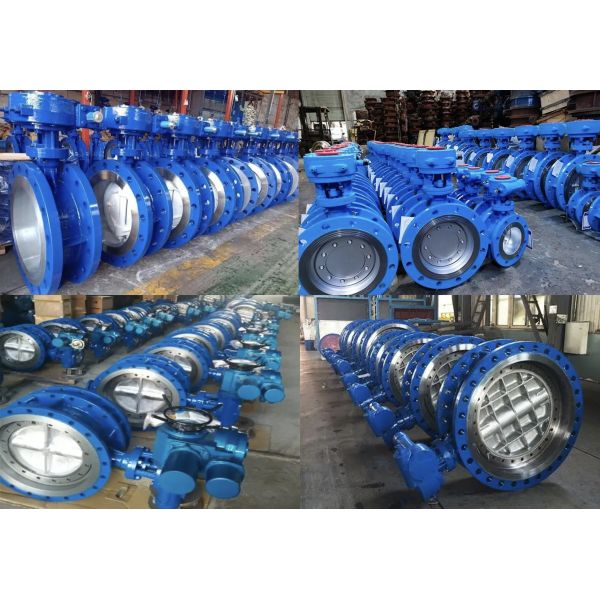

Lots of inventory

Industrial Turbine Double Flange Cast Steel Butterfly Valve With PTFE Liner

Product packaging

Industrial Turbine Double Flange Cast Steel Butterfly Valve With PTFE Liner

FAQ

Q: What are the body materials of hard seal turbine flange telescopic butterfly valves?

A: Ductile iron, cast steel, stainless steel, etc.

Q: Can I choose a different flange material?

A: Of course, we can make it according to customer requirements.

Q: Can I visit your factory before ordering?

A: Yes, welcome to visit our factory and check the quality.

Q: What is the pressure of a hard seal turbine flange telescopic butterfly valve?
A: PN6/PN10/PN16.

Q: Can you provide drawings and technical information?

A: Yes, our professional technical department will design and provide drawings and technical data.
