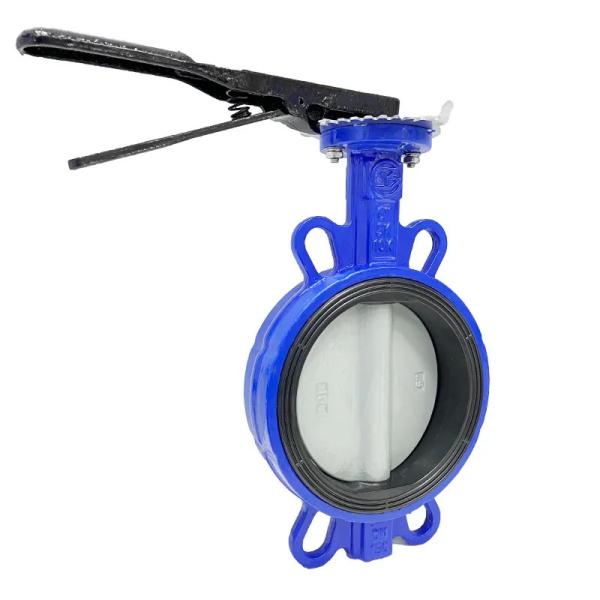

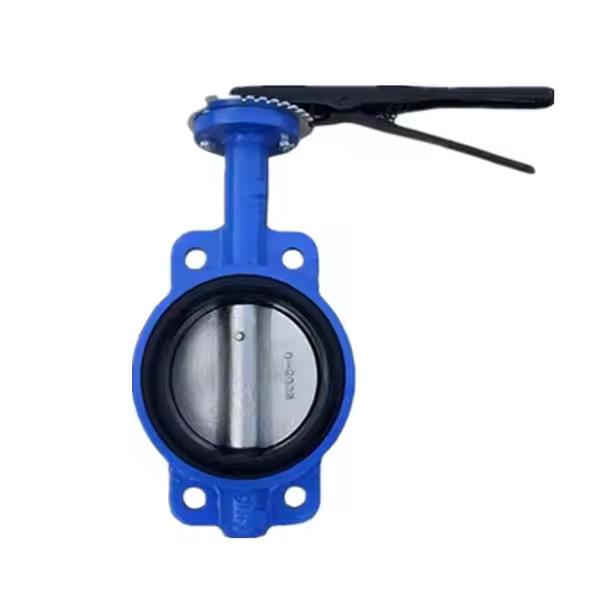

2 Inch Butterfly Valve Handle Wafer Type Cast Iron Manual Butterfly Valve
2 Inch Butterfly Valve Handle Wafer Type Cast Iron Manual Butterfly Valve
2 Inch Butterfly Valve Handle Wafer Type Cast Iron Manual Butterfly Valve
2 Inch Butterfly Valve Handle Wafer Type Cast Iron Manual Butterfly Valve
Specifications
Brand Name :
Liang He
Model Number :
D71X
Certification :
ISO 9001
Place of Origin :
Henan,China
MOQ :
1 piece
Price :
＄13.6-61.9 per set
Payment Terms :
T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability :
6000 piece per month
Delivery Time :
3-7day
Packaging Details :
cartons,wooden cases
Application field :
Municipal construction, water treatment, electricity
Temperature of Media :
High Temperature, Low Temperature, Medium Temperature, Normal Temperature
Advantage :
Wear resistance and high performance
Colour :
Blue
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Pressure :
PN10/PN16
Material :
Ductile Iron
Type :
Butterfly Valves
Description

2 Inch Handle Wafer Type Cast Iron Manual Butterfly Valve

How the product works

A handle butterfly valve is a flow control device that uses a disc as a shut-off and is typically used to control the flow of gases, liquids, and particles. The handle butterfly valve works by turning the handle so that the bearing attached to the disc rotates, so that the disc rotates along the axis of the pipe. When the disc is at a certain angle to the pipe, it can truncate, control or adjust the flow rate of the medium, so as to achieve the purpose of controlling the flow rate.

The medium for which the product is suitable

1. Water: Suitable for all kinds of water quality, including clean water and sewage.
2. Air: Used for ventilation and gas delivery system.
3. Steam: Used in industrial steam systems and heating systems.
4. Gas: Used in gas pipelines and gas systems.
5. Oil products: Suitable for oil transportation in petroleum and chemical industry.
6. Other media: Including brine, nitric acid, sodium chloride and other corrosive media.

The field of work in which the product is applicable

1. Water supply and drainage: Used for fluid control of urban water supply system and drainage system.
2. Chemical industry, petroleum: Used for the control of liquids and gases in oil extraction and chemical production.
3. Natural gas: Used for the control of natural gas transmission pipelines.
4. Food processing: Used to control water and gas and other media in the food processing industry.
5. Electric power, light textile, papermaking: Applied to the flow control of industrial systems such as electric power, light textile and papermaking.

Product parameters

2 Inch Butterfly Valve Handle Wafer Type Cast Iron Manual Butterfly Valve

NO Name Material
1 Body CI
2 Bushing PTFE
3 Seat NBR
4 Stem SS410
5 Disc CF8/DI
6 Pin SS416
7 Bushing PTFE
8 "O"ring NBR
9 Nut SS201
10 Bolt SS201
11 Handle Malleable Cast iron

Size H1 H2 H3 L L1 φD φD1 φd
50 70 145 27 43 220 65 50 8
65 76 153 27 46 220 65 50 8
80 99 161 27 46 220 65 50 8
100 108 170 27 52 255 90 70 10
125 126 190 27 56 255 90 70 10
150 137 205 27 56 255 90 70 10
200 174 237 40 60 358 125 102 12

Product Details

2 Inch Butterfly Valve Handle Wafer Type Cast Iron Manual Butterfly Valve

Inventory display

2 Inch Butterfly Valve Handle Wafer Type Cast Iron Manual Butterfly Valve

Why choose us?

1. All our staff have rich experience to ensure smooth export, so that you can feel sincere service before, during and after purchase.
2. Our factory can be customized according to your requirements and report the production progress to you at any time.
3. The output is high, and you can get the earliest goods.
4. Factory direct sales, eliminate middlemen, earn the price difference, so that you can get the best price.
5. We have professional after-sales service to solve quality problems in a timely manner.
