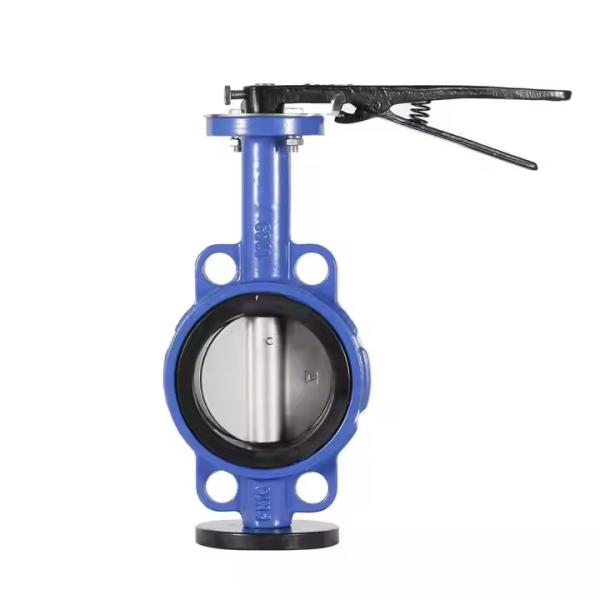

Dn100 Pn16 Epdm Seat Handle Operated Centerline Concentric Wafer Type Butterfly Valve

Handle clamp soft seal butterfly valve features

1. Compact structure and flexible operation: The handle clamp soft seal butterfly valve adopts a double eccentric structure, and the switch operation can be realized by 90° rotation, which is compact and flexible and labor-saving.
2. Excellent sealing performance: The valve adopts a soft sealing structure, and the sealing ring is usually made of rubber or PTFE and other materials, which can effectively prevent medium leakage and ensure good sealing performance.
3. Wide range of application: Handle clamp soft seal butterfly valve is widely used in water plants, power plants, steel mills, papermaking, chemical industry, catering and other systems for water supply and drainage regulation and cut-off use, especially suitable for the control of liquid and gaseous media.
4. Various materials and strong applicability: The seat materials include nitrile rubber, ethylene propylene rubber,neoprene,etc.with a variety of choices and suitable for different working conditions.
5. Two-way sealing function: This valve has a two-way sealing function, which is not controlled by the flow direction of the medium during installation, nor is it affected by the spatial position, and can be installed in any direction.

Handle clamp soft seal butterfly valve installation

1. Place the valve between the two pre-installed flanges, and pay attention to the neat alignment of the bolt holes.
2. Insert the bolt nut and tighten it gently to correct the flatness of the flange surface.
3. Use spot welding to fix the flange on the pipe, and install the valve after the weld is cooled.
4. Correct the valve position and tighten the bolts to ensure that the valve plate can be opened and closed freely.

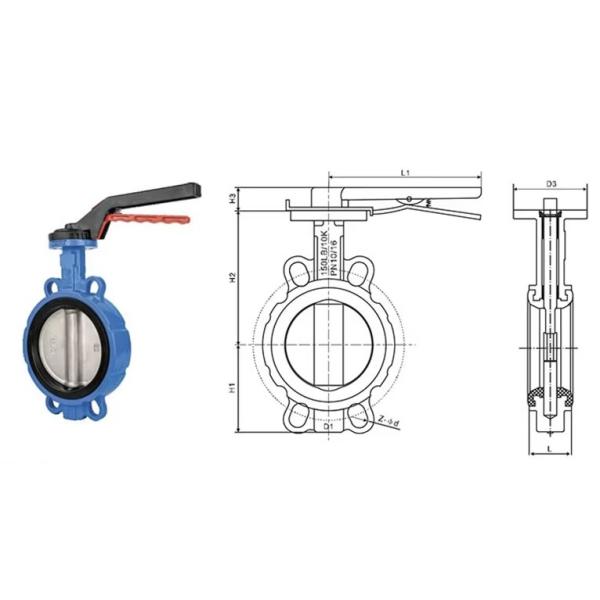

Main dimensions

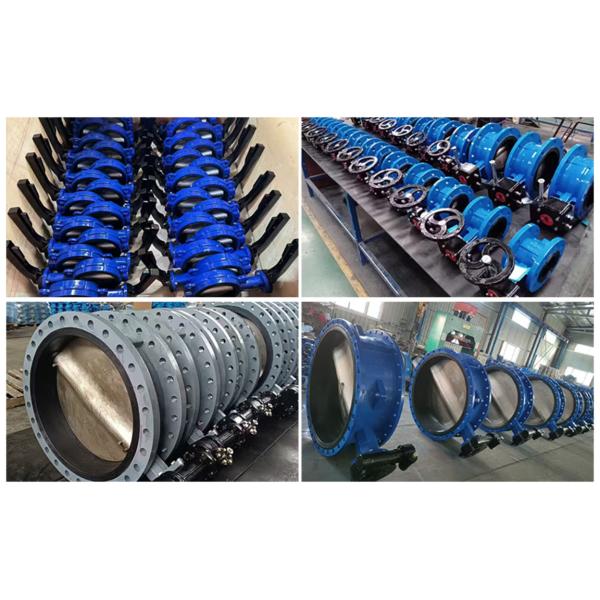

Lots of inventory

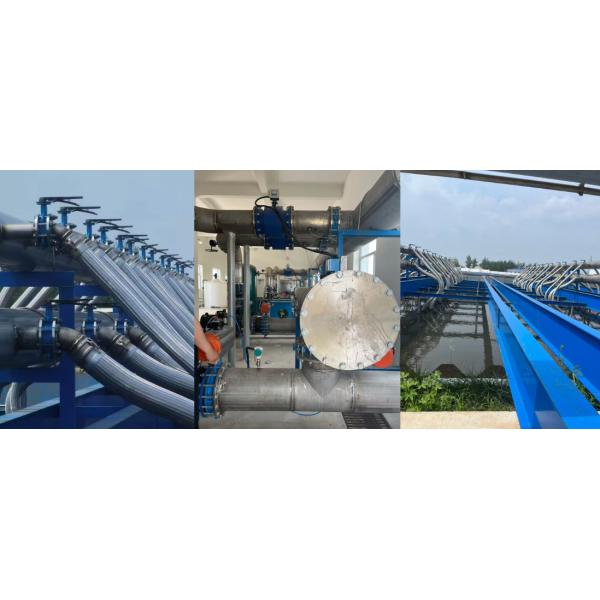

Product Applications

FAQ

Q: Is it a finished product or can be customized?

A: We customize the butterfly valve you need according to your technical requirements, drawings, parameters, etc.

Q: Are you a trader or manufacturer?
A: We are a direct factory who can give competitive price and control the quality.

Q: Can I get the catalogue and dimension drawing?
A: Contact our sales person and all technical files will be given promptly.

Q: Can I choose different materials of rubber?

A: Of course, we have NR, NBR, EPDM, etc., which can be customized according to customer requirements.

Q: What are the characteristics of the handle pair clamp soft seal butterfly valve?

A: The main features of the handle clamp soft seal butterfly valve include novel and reasonable design, unique structure, light weight, and rapid opening and closing.
