SS316 Stainless Steel Oil Grinder HDPE Pipe Repair Clamp Customized For Large Diameter Pipe
SS316 Stainless Steel Oil Grinder HDPE Pipe Repair Clamp Customized For Large Diameter Pipe
SS316 Stainless Steel Oil Grinder HDPE Pipe Repair Clamp Customized For Large Diameter Pipe
SS316 Stainless Steel Oil Grinder HDPE Pipe Repair Clamp Customized For Large Diameter Pipe
Specifications
Brand Name :
Liang He
Model Number :
FCTR
Certification :
ISO 9001
Place of Origin :
Henan,China
MOQ :
10 piece
Price :
＄11.3-18.6 per set
Payment Terms :
T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability :
8000 piece per month
Delivery Time :
3-7day
Packaging Details :
cartons,wooden cases
Seal ring material :
NR, EPDM, NBR, Neoprene,etc
Application :
Water, gas, oil, etc.
Usage :
Pipe quick easy pipe repair clamp
Product drawing :
Offer
Warranty :
12 months
Technics :
Stamping
Connection :
Bolted connect
Shape :
Equal
Head Code :
Round
Description

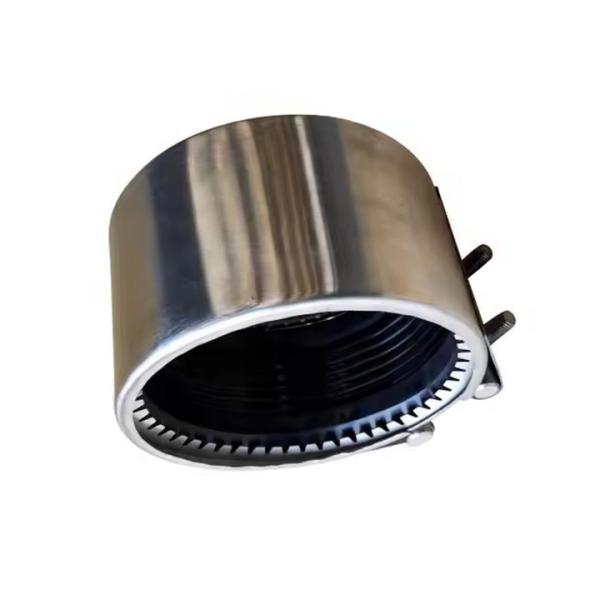

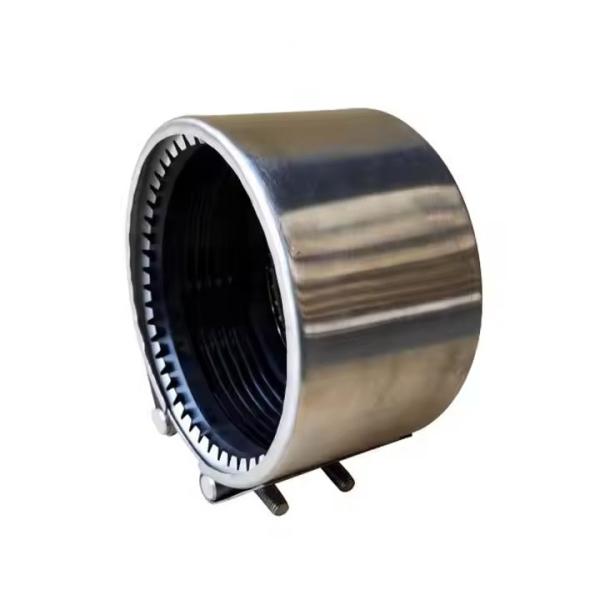

Customized large diameter pipe SS316 stainless steel oil grinder HDPE repair clamps

Product Introduction

FCTR connector is a toothed ring type pipe connector with strong sealing performance and pull-off resistance, used to connect PE and other non-metallic pipes, its toothed ring design can play a good role in the pipe connection of shock, impact resistance, noise reduction effect.

Product Advantages

1. Sealing performance and anti-pull-out ability: FCTR toothed ring connector has excellent sealing performance and anti-pull-out ability, ensuring the stability and reliability of pipe connection.
2. Seismic and impact resistance: Its design can play a good role in the pipeline connection with good seismic and impact resistance, and reduce noise.
3. Wide range of application: According to the different media in the pipeline, different rubber rings can be selected to bear, and the scope of application is wide.
4. Simple operation: No need for professional installation, simple operation and easy installation.
5. Compensation for axial displacement: During installation, it plays a good role in compensating for axial displacement.
6. Reuse: It has good repetition and practicability, and can be repeatedly disassembled and used for temporary pipes.
7. Flexible installation: There is no need to do special treatment on the pipe end during installation, and the connection can be completed if there is a gap between the two pipes.

Product Parameters

SS316 Stainless Steel Oil Grinder HDPE Pipe Repair Clamp Customized For Large Diameter Pipe

NO NAME MATERIAL QUANTITIES
1 Toothed rings SS304 2
2 Guard board SS304 1
3 Nut tie rod SS304 1
4 Screw hole pull rod SS304 1
5 Rubber sleeve EPDM 1
6 Shell steel plate SS304 1
7 Bolt SS304 N

SS316 Stainless Steel Oil Grinder HDPE Pipe Repair Clamp Customized For Large Diameter Pipe

Pipe OD

(mm)

Pipe Diameter

Range(mm)

 PN Dimensions Bolt Bolt torque
L1 D
21.7 21-23 16 57 35 6 15
25 24.5-25.5 16 57 50 6 15
27.2 26-28 16 57 50 6 15
32 31.5-32.5 16 57 55 6 15
34 33-35 16 57 55 6 15
40 39.5-41.5 16 57 55 6 15
42 42-44 16 57 65 6 15
44.5 44-45.1 16 57 65 6 15
48.6 47-49 16 57 70 6 15
54 53.3-54.6 16 57 70 8 30
57 56.3-57.7 16 57 80 8 30
60.3 59-62 16 80 85 8 30
63 62.2-63.9 16 80 85 8 30
76.1 75-78 16 80 100 8 30
79.9 78.8-80.8 16 80 100 8 30
88.9 88-92 16 107 110 10 50
108 106-110 16 107 130 10 50
110 108.9-111.2 16 107 130 10 50
114.3 112-116 16 107 135 10 50
118 116.6-119.2 16 107 140 10 50
125 123.6-126.5 16 107 150 10 50
133 131.5-134.4 16 107 160 10 50

Tips:The above data is only part of the data, if you need a special size, please contact us.

Product Applications

1. New pipeline project: FCTR toothed ring connector can greatly shorten the construction period, reduce labor costs, and simple operation and easy installation in new pipeline projects.
2. Temporary pipeline: This connector has good repetition and practicability, is suitable for temporary pipeline, and can be disassembled and used repeatedly.
3. Narrow environment: Even in a narrow environment, FCTR toothed ring connectors can be quickly installed, and the installation environment requirements are low.
