Rubber Waterproof Single Belt Joint Pipe Leakage Clamp SS304 Stainless Steel
Rubber Waterproof Single Belt Joint Pipe Leakage Clamp SS304 Stainless Steel
Rubber Waterproof Single Belt Joint Pipe Leakage Clamp SS304 Stainless Steel
Rubber Waterproof Single Belt Joint Pipe Leakage Clamp SS304 Stainless Steel
Rubber Waterproof Single Belt Joint Pipe Leakage Clamp SS304 Stainless Steel
Rubber Waterproof Single Belt Joint Pipe Leakage Clamp SS304 Stainless Steel
Specifications
Brand Name :
Liang He
Model Number :
FCTR
Certification :
ISO 9001
Place of Origin :
Henan,China
MOQ :
10 piece
Price :
＄5.99-8.55 per set
Payment Terms :
T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability :
8000 piece per month
Delivery Time :
3-7day
Packaging Details :
cartons,wooden cases
Customized support :
OEM, ODM
Product name :
rubber sealing water single band coupling leak pipe repair clamp
Working Pressure :
PN10/16
Material of rubber :
EPDM, NBR
Application :
Oil,water,gas
Body material :
stainless steel 304,316
Feature :
Easy to install and corrosion resistant
Form of company :
manufacturers
Product drawings :
Offer
Description

SS304 stainless steel rubber waterproof single belt joint leakage repair clamp

Product Introduction

The FCTR type patcher is a toothed ring anti-pull-out pipe connector with strong sealing performance and pull-out resistance. Its toothed annular design can not only play a good role in earthquake resistance and impact resistance in pipeline connection, but also effectively reduce noise. Suitable for PEQ and other non-metallic pipe connections, the patch can be installed quickly, reducing labor costs and time.

Product Advantages

1. Easy to install
2. Wide range of application
3. Good seismic and impact resistance
4. Strong environmental adaptability
5. Reusable
6. Compensate for it
7. No special handling is required

Product application field

1. Urban tap water, drainage, heating, fire protection and other pipelines.
2. The parts of heat insulation or shock absorption in the connection of power equipment pipelines in industrial and mining, workshops, hotels and restaurants.
3. Oilfield oil production plants, oil refineries, chemical plants, pipeline repairers, oil transportation, gas transmission and cooling water circulation pipeline systems.
4. Water supply and drainage and circulating pipeline systems of nuclear energy, thermal power, hydroelectric power and other power stations (plants).
5. Subway, basement, wet ground and buried pipeline system.
6. Pipeline system of cold storage and refrigeration equipment.
7. Pipe network system configuration engineering in ship manufacturing.

Product parameters

Model Diameter

Pipe OD

(mm)

 Length(mm) Tube pitch(mm)
Ordinary type Extended type Ordinary type Extebded type
DN25 34 33-35 60 100 5 5
DN32 42 42-44 60 100 5 10
DN40 48.6 47-49 60 100 5 10
DN50 60 59-62 80 140 8 15
DN65 76 75-78 80 140 10 25
DN80 89 88-92 100 205 10 25
DN100 114 108-116 100 205 10 25
DN125 140 137-142 110 205 10 30
DN150 159 157-162 110 205 10 30
DN160 168 165-170 140 205 10 30
DN200 219 217-221 140 255 10 30
DN250 273 271-275 140 255 10 30
DN300 325 323-327 140 255 10 30
DN350 377 375-379 155 255 10 30
DN400 426 424-428 155 255 10 30
DN450 480 475-482 155 255 10 30
DN500 530 526-533 155 255 10 30

Tips:The above data is only part of the data, if you need a special size, please contact us.

Installation method and operation steps
The installation process of FCTR patcher is relatively simple, no need for professional operation, easy operation and easy installation. It can choose different rubber rings to carry according to the different media in the pipeline, and has a wide range of applications. In addition, FCTR-style patchers have low requirements for the installation environment, and can be installed quickly even in confined environments.

Hot selling products

Rubber Waterproof Single Belt Joint Pipe Leakage Clamp SS304 Stainless Steel Rubber Waterproof Single Belt Joint Pipe Leakage Clamp SS304 Stainless Steel Rubber Waterproof Single Belt Joint Pipe Leakage Clamp SS304 Stainless Steel

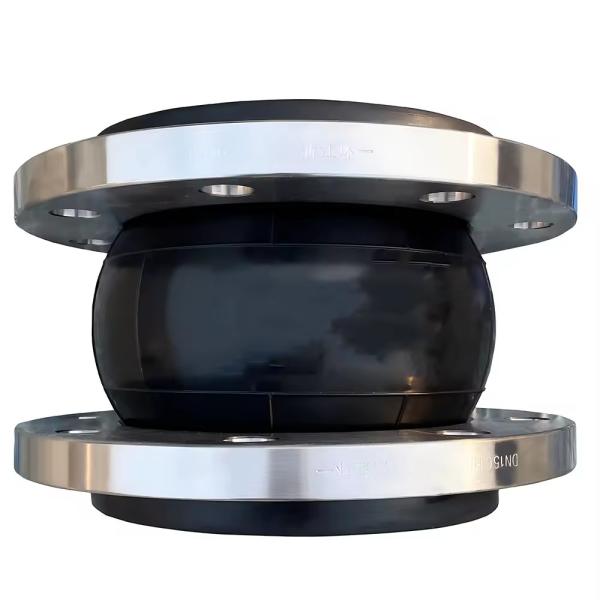

Single Sphere Rubber Joint Double Sphere Rubber Joint End Face Fully Sealed

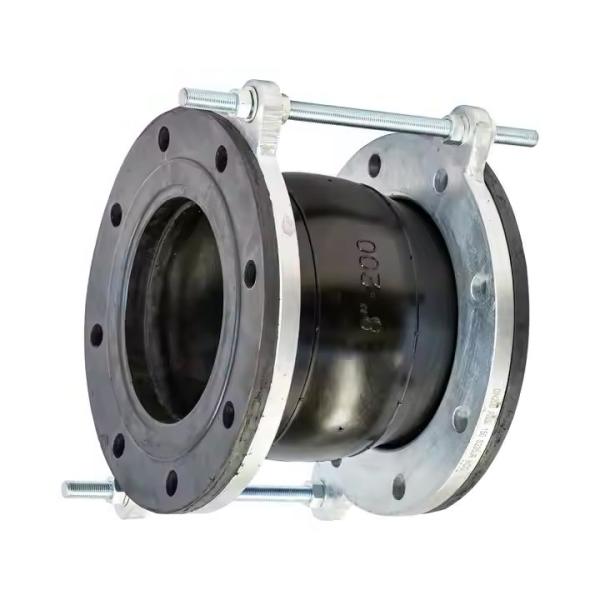

Rubber Expansion Joint
