Hydraulic Rubber Tile Vulcanizing Machine 100T
Hydraulic Rubber Tile Vulcanizing Machine 100T
Specifications
Brand Name :
HHS
Model Number :
XLB-550X550X4
Certification :
CE/ISO
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD:8000-20000 /SET
Payment Terms :
D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
80 sets/month
Packaging Details :
wood package/20-40 gp
Heating Platen Size :
1000*1000
Mold Closing ForceF :
100T
Working Layers :
1
Motor Power :
5.5KW
Overall Dimension :
2200X900X2200mm
Weight :
9000KG
Type :
Vulcanizer,tile Machine
Color :
Customizable
Power source :
Hydraulic
Usage :
rubber tile from waste tyre granule, glue, colour
Keyword :
tile vulcanizing press
Description

100T Rubber Tile Molding Machine/gym rubber tile machines/rubber floor tiles machine

Manual push-pull mold + High output and efficiency + Easy and safe operating

rubber flooring tiles product line is one type of environmental type rubber machine , used to process the waste tire rubber granules to be different types of rubber flooring tiles by vulcanizing and solidifying . Meanwhile , it can process PU granules , EPDM granules and nature rubber to be tiles .

Detailed Parameter

Model XLB-D1080*1080*1
Unit Pressure 10.3kg/cm²
Plate size (mm) 1080*1080
Daylight (mm) 200
Plunger stroke (mm) 200
Motor power (kw) 5.5
Cylinder Diameter φ400mm
Cylinder Oil φ200mm,4pcs
Pillar Quanity 4pcs
Weight (KG) 9000

PLC control of temperature, pressure and process time
- The cylinder and plunger are made up of high –quality materials.Simple and convenient structure , flexible operation, commodious space.
- Memory accessible for process time,pressure and temperature.
- Rubust designed safety door(Automatic sensing interlock, automatic pressure interlock)The control method can be changed as client's requirements.
- Our hot plate is made of Q-235 steel , can resist high temperature heating Without oil spilling or off pressure.Well done insulation.
- Using best Advanced PLC control panel , vulcanization time be setted in advanced.Mold speed can be adjusted according to customers need.

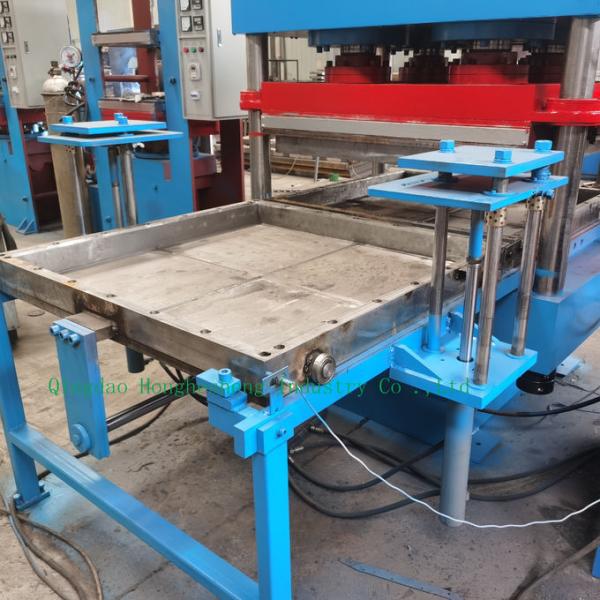

Detailed Pictures

Hydraulic Rubber Tile Vulcanizing Machine 100THydraulic Rubber Tile Vulcanizing Machine 100THydraulic Rubber Tile Vulcanizing Machine 100THydraulic Rubber Tile Vulcanizing Machine 100THydraulic Rubber Tile Vulcanizing Machine 100THydraulic Rubber Tile Vulcanizing Machine 100THydraulic Rubber Tile Vulcanizing Machine 100THydraulic Rubber Tile Vulcanizing Machine 100T

Hydraulic Rubber Tile Vulcanizing Machine 100T

Rubber Tile or Other Rubber Products Making Procedure
Up mold and down mold consist a pair mold. When use the machine make the production.
1. Put rubber raw material into every cavityof the down mold.
2. Press the mold close button on the machine.
3. The machine will close the mold, gives pressure and temperature.
4. When the set work time get out, the machine will open the mold automatically.
5. Workers get the finished rubber products out.
6. Do the next working cycle.

Hydraulic Rubber Tile Vulcanizing Machine 100T

Hydraulic Rubber Tile Vulcanizing Machine 100T

Hydraulic Rubber Tile Vulcanizing Machine 100T

Hydraulic Rubber Tile Vulcanizing Machine 100T

Hydraulic Rubber Tile Vulcanizing Machine 100T

Hydraulic Rubber Tile Vulcanizing Machine 100T

Hydraulic Rubber Tile Vulcanizing Machine 100T

XLB-550*550*4/50t
