XK 400 Rubber Mixing Mill Machine 18kg 35KG Capacity For Plastic
XK 400 Rubber Mixing Mill Machine 18kg 35KG Capacity For Plastic
XK 400 Rubber Mixing Mill Machine 18kg 35KG Capacity For Plastic
XK 400 Rubber Mixing Mill Machine 18kg 35KG Capacity For Plastic
XK 400 Rubber Mixing Mill Machine 18kg 35KG Capacity For Plastic
XK 400 Rubber Mixing Mill Machine 18kg 35KG Capacity For Plastic
Specifications
Brand Name :
honghesheng
Model Number :
XK400
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
17200USD/SET
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100SETS/MONTH
Delivery Time :
30 working days
Packaging Details :
wood package /20/40GP/HC
Roll Diameter :
400mm
Roll Working Length :
1000mm
Compound feeding capacity :
18-35KG
Max Rolld Space :
10mm
After-sales service provided :
Engineers available to service machinery overseas,Field installation,commissioning and training,Video technical support
Type :
Open Mixing Mill
Roller hardness :
50~60HRC
Bush :
nylon bush,bearing bush,ball bearing b
Voltage :
220V/380V, Customer's Request
Power(w) :
45KW
Weight :
8000KG
Dimension(l*w*h) :
1100*700*1200mm,1226x830x1295mm,1*1.1*1.4(M),1100*650*1500,1160*920 *1370mm
Warranty :
3 Year
Condition :
New
Description

Product Application

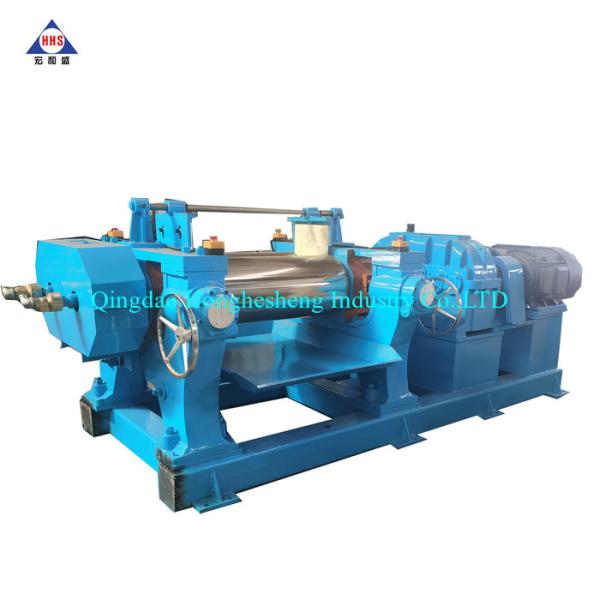

XK-400 Rubber Mixing Mill Machine /Mixing Mill In Rubber And Plastic

This machine mainly consists of rollers , ZQbull gearbox (except XK-160), electrical cabinet ,nylon bush transmission device , main motor , etc . It is widely used for mixing , warming and sheeting rubber , etc .

Main Features

1.The roller is made of alloy chilled cast iron .Their surfance are hard and wear resistance . Its hardness of surface is HRC68-75

2.The end of rollers are supported by the roller ball bearing bush .It has the advantages of running smoothy ,energy saving , low noise and long life

3.The roll gap adjustment is manual control type . It is simple for operation

4.The machine is equipped with overloading protection device , in order to protect the main parts from being damanged

5.The machine adopts the single drive type transmission structure . It adopts the nylon pin coupling to prevent main parts from being damanged due to the overload of transmission part

6.The base is integral type , the transmission mode is of closed transmission . so it is safe and easy for use

7.The machine is installed with the emergency button and pulling rope as the safety device

8.This machine are installed with four sets lubrication device and suitable for grease lubrication

9.The machine adopts the PLC control cabinet , the machine will be suitable for your local industrial voltage and frequency

Technical parameters:

Model
XK-160
XK-250
XK-360
XK-400
roller diameter
160
250
360
400
roller length
320
620
900mm
1000
front roll linear speed
9
15.1
16.25
18.65
friction ratio
1:1.35
1:1.1
1:1.25
1:1.27
batch capacity
1-2
10-15
20-25
18-35
driving motor
5.5
18.5
30
37
machine size
1380*860*1320
3400*1350*1500
3940*1780*1740
4200*1850*1870
weight
1000 kg
3500 kg
5600
7600

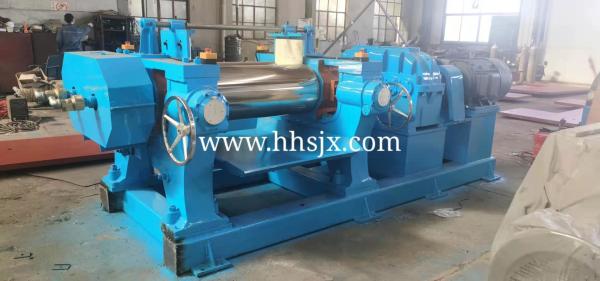

XK-400 open mixing mill

XK 400 Rubber Mixing Mill Machine 18kg 35KG Capacity For PlasticXK 400 Rubber Mixing Mill Machine 18kg 35KG Capacity For PlasticXK 400 Rubber Mixing Mill Machine 18kg 35KG Capacity For Plastic

XK 400 Rubber Mixing Mill Machine 18kg 35KG Capacity For Plastic

XK 400 Rubber Mixing Mill Machine 18kg 35KG Capacity For Plastic

XK 400 Rubber Mixing Mill Machine 18kg 35KG Capacity For Plastic

XK 400 Rubber Mixing Mill Machine 18kg 35KG Capacity For PlasticXK 400 Rubber Mixing Mill Machine 18kg 35KG Capacity For PlasticXK 400 Rubber Mixing Mill Machine 18kg 35KG Capacity For Plastic

XK 400 Rubber Mixing Mill Machine 18kg 35KG Capacity For Plastic
