250mm Stroke 350*350mm Solid Tire Making Machine Rubber Vulcanizing Machine 2 Layer
250mm Stroke 350*350mm Solid Tire Making Machine Rubber Vulcanizing Machine 2 Layer
250mm Stroke 350*350mm Solid Tire Making Machine Rubber Vulcanizing Machine 2 Layer
250mm Stroke 350*350mm Solid Tire Making Machine Rubber Vulcanizing Machine 2 Layer
250mm Stroke 350*350mm Solid Tire Making Machine Rubber Vulcanizing Machine 2 Layer
250mm Stroke 350*350mm Solid Tire Making Machine Rubber Vulcanizing Machine 2 Layer
250mm Stroke 350*350mm Solid Tire Making Machine Rubber Vulcanizing Machine 2 Layer
250mm Stroke 350*350mm Solid Tire Making Machine Rubber Vulcanizing Machine 2 Layer
Specifications
Brand Name :
HHS
Model Number :
XLB800-2200
Certification :
CE
Place of Origin :
Qingdao Shangdong
MOQ :
1 set
Price :
USD 50000
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60 sets/Year
Delivery Time :
15-30 work days
Packaging Details :
Wooden cases / Containers, etc
Type :
Vulcanizer
Colour :
all colour
Voltage :
customized
Power(W) :
35KW
Temperature :
max 300 degree
Working Layers :
1-4layers
Plates :
300-2100mm
Hot Plates Material :
Q-235 material.
Heating :
electricity , steam heating , conduction oil heating .
Weight :
100000 kg
Description

Product Description

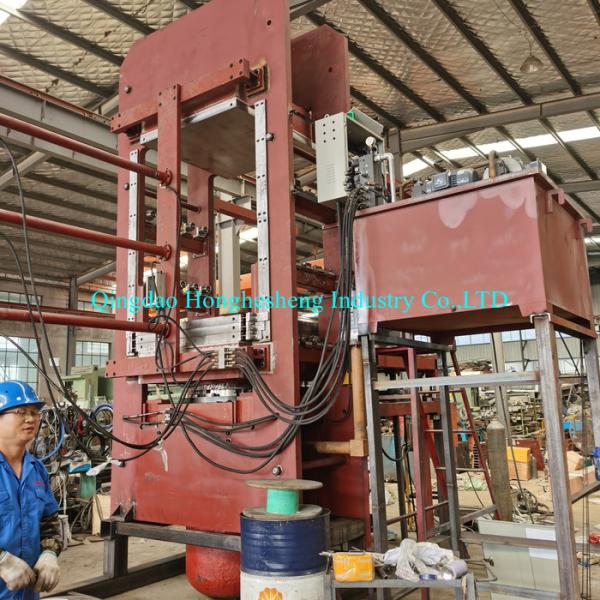

Solid Tire Making machine vulcanizer press building machine

Details of rubber vulcanizing machine:

This series plate vulcanizing machine special-purpose takes shape the equipment for the rubber profession.Heats up the way to uses the electric heating(steam or oil heats up),the power uses the height combination to pump for the oil way, reduces the equipment the power loss.
The electrical control uses the advanced PLC control technology,may realize automati-cally controls when, automatically operates the mold,is automatic warm controls and so on the craft.And may realize automatically deflates. Thus guarantee product quality and high efficiency.
May have custom-made each kind of four columns,the frame type, the work table emigra-tion type,the work table emigration type in addition according to the customer product technological requirement and so on the many kinds of plates vulcanizing machine.

1.Main uses:

The Curing Press mainly works for the clampdown of rubber, which can be used as normal hydraulic machine.

We have both column and frame structure.

2.Advantages:

1. Simple and convenient structure, flexible operation,commodious space. The cylinder and plunger are made up of high–quality materials.

2. Hydraulic station and electric cabinet are Located in both sides of the main engine.

3. Conveniently operated.

4. Without oil spilling or off pressure.

5. Excellent reputation.

3. Technical Parameter as follows:

Type XLB350*350*2 XLB400*400*2 XLB500*500*2 XLB600*600*2/4 XLB750*850*2 XLB1000*1000*2
Total pressure(MN) 0.25 0.5 0.8 1.0 1.6 2.5
Daylight(mm) 125 125 125 125 125 200
Working layer number 2 2 2 2/4 2 2
Plate size(mm) 350*350 400*400 500*500 600*600 750*850 1000*1000
Plunger stroke 250 250 250 250/500 250 400
Heating way Electricity/steam Electricity/steam Electricity/steam Electricity/steam Electricity/steam Electricity/steam
Main motor power 2.2 2.2 2.2 2.2 3 5.5
Stucture form Strain rod Strain rod Strain rod Strain rod Strain rod/strain plate Strain plate
Model 1200×1200 1500x1500 1800×1800 2000×2000 3000×3000 1300×6000
Nominal mould clamping force(MN) 3.5/5.0 10 20 20 45 2.88
Plate size 1200×1200 1500×1500 1800×1800 2000×2000 3000×3000 1300×6000
Number of working layer 1 1 1 1 1 1
Cylinder number 1 2 4 4 9 6
Piston diameter(mm) Φ450/600 Φ600 Φ600 Φ600 Φ600 Φ600
Stroke of piston(mm) 200/500 700 800 700 800 250
Distance between hot plate(mm) 200/500 700 800 700 1100 250
Unit area pressure of hot plate (Mpa) S 4.44 6.17 5.0 5.0
