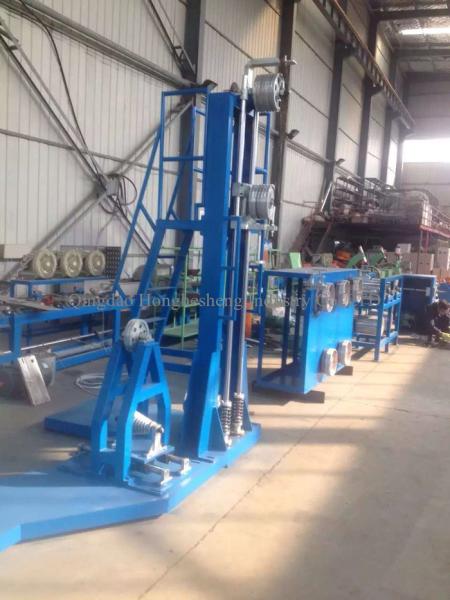

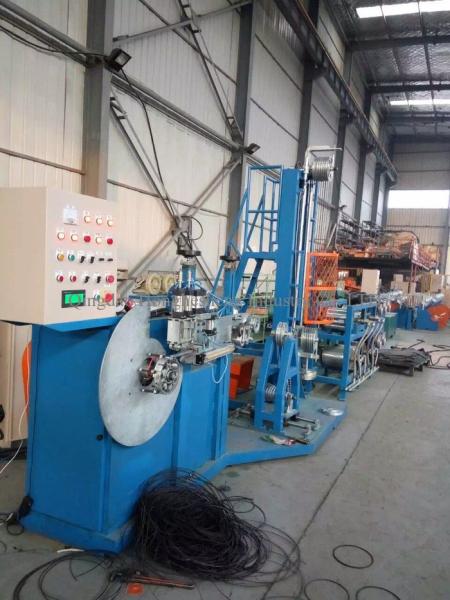

Motorcycle Tire Bead Wire Grommeting Winding Machine 8 To 28 Inch Bead Dia
Motorcycle Tire Bead Wire Grommeting Winding Machine 8 To 28 Inch Bead Dia
Motorcycle Tire Bead Wire Grommeting Winding Machine 8 To 28 Inch Bead Dia
Motorcycle Tire Bead Wire Grommeting Winding Machine 8 To 28 Inch Bead Dia
Specifications
Brand Name :
HHS
Model Number :
NJQ-160
Certification :
CE ISO
Place of Origin :
Shandong, China
MOQ :
1 set
Price :
USD:1000-25000 /SET
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 sets/month
Delivery Time :
20 working days
Packaging Details :
Wood package /20-40 container
Type :
Tire Machine
Marketing Type :
Ordinary Product
Warranty of core co :
3 years
Core Components :
PLC, Motor
Colour :
Green,blue, customize
Dimension(L*W*H): :
900x730x1700mm
Power (kW) :
5.5 kW
Weight (KG) :
1200 KG
Voltage :
According to customers' requirement
Description

Mototcycle Tire Bead Wire Grommeting Winding Machine

Application:

This machine is production line of bead ring for tire manufacture,suitable for bead with rectangular or square cross section structure.

Structure features:

The main structure of this machine is composed by bead wire let-off device,bead wire polishing heating device,grommeting extrusion,cooling traction storage devices,length fixing&cutting device and bead forming equipment,adopt PLC (program control)set circling numbers,bead ring free for cloth wrapping,automatic discharge .Wire extrusion die device is of wide adaptability and easy disassembly.

Main technical parameter for bead wir grommeting machine:

Bead diameter(inch) 8-28 3-12
Wire let-off shelf(pcs) 1-8 1-8
Let-off shelf applicable for finished wire coil inner diameter(mm) 350 350
Extruder (optional) 65 65
Wire die plate hole(pcs) 1-8 1-8
Shaping drum speed(r/min) 100 100
Installed capacity(kw) 36 36
Dimension(L*W*H)(mm) 10500*2200*2800 10500*2200*2800

Motorcycle Tire Bead Wire Grommeting Winding Machine 8 To 28 Inch Bead DiaMotorcycle Tire Bead Wire Grommeting Winding Machine 8 To 28 Inch Bead DiaMotorcycle Tire Bead Wire Grommeting Winding Machine 8 To 28 Inch Bead Dia

Motorcycle Tire Bead Wire Grommeting Winding Machine 8 To 28 Inch Bead Dia

Motorcycle Tire Bead Wire Grommeting Winding Machine 8 To 28 Inch Bead DiaMotorcycle Tire Bead Wire Grommeting Winding Machine 8 To 28 Inch Bead DiaMotorcycle Tire Bead Wire Grommeting Winding Machine 8 To 28 Inch Bead Dia
