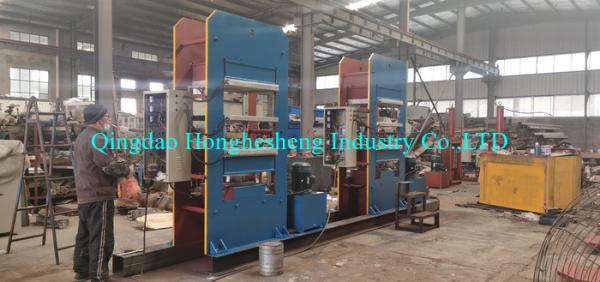

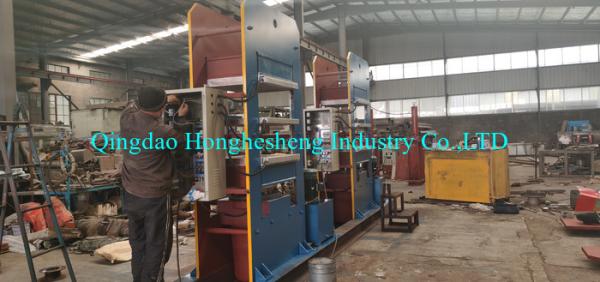

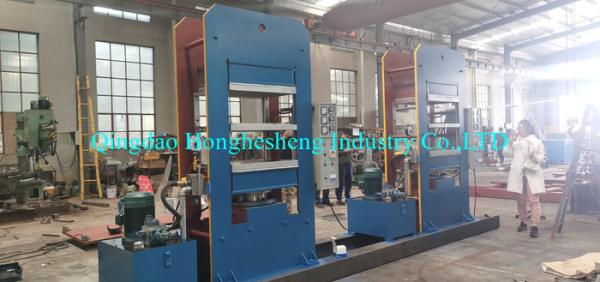

Factory Direct Sale Large Rubber Vulcanizing Press Moulds Of Silicon Rubber Making Machine For Pressure Cooker Sealing Ring

Specific Characteristic:

1. Twin work position design, are required with independent oil circuit, dual oil pump, double motor.
2. Vacuum pumping device draws out air in die cavity to avoid trapped gas, short injection, shorten forming period and improve product quality.
3. Suitable for rubber parts with complicated structure and difficult exhaust.
4. Open the mold design: a new type of patent guide rail. Special design can be 90 degrees open angle, easy to operate.
5. Mold handling design: in the mold handling agencies to join a special design. It is durable and quiet. Fast and outdated.
6. Hydraulic System Design: The system uses high-pressure pump and low-pressure pump, which can shut down two presses at the same time. The system is less noise, stable performance, and long service life.
7. Alignment: provide two different mold calibration speeds: fast and slow, the user can choose to use according to the actual situation. It makes calibration more secure and accurate.

2RT Machine motion flow:

1. Setup the mold (initial status)

2. Supply the material and start the process(close the mold)

3. Load the mold

4. The main ram goes up to the predetermined position ready for entering a state of vacuum

5. Lower the vacuum mask. At the same time, suck out the air until a state of vacuum is reached.

6. The main ram goes up. Increase the pressure to expel bubbles out.

7. After the state of vacuum exist mo more, lift the vacuum hood and curing.

8. After curing, lower the main ram.

9. Unload the mold, open the mold.

10. Take out the final product and put new material in.

Technical parameter

Technical parameter:

Model	Unit	100VF	200VF	250VF	300VF
Clamping Force	Ton	100	200	250	300
Upper Platen Size	mm	380*400	510*510	600*600	680*680
Lower Platen Size	mm	400*460	550*560	650*600	700*800
Plunger stroke	mm	200	250	250	300
Distance of Thermo-plate	mm	200	250	250	300
Distance of Tie bar	mm	490*230	640*310	745*310	785*380
Die sinking type	2RT-3RT-4RT-Track
Max Operating Pressure	Mpa	20	20	20	20
Motor Power	hp	7.5*2	10*2	10*2	10*2
Electric Heating Power	Kw	7.2*2	Product tags silicone rubber injection molding machine , rubber vulcanizing press machine , rubber moulding presses Send your message to this supplier Message* Email* Phone or WhatsApp* Name Company Please reply me within 24 hours. Yes! I would like your verified suppliers matching service! Send Now Submission successful! Large Plate Vulcanizing Press Sealing Ring Silicone Rubber Moulding Press Machine Ask Latest Price Product Detail Brand Name : HHS Model Number : XLB50-300 Certification : CE Place of Origin : Qingdao Shangdong MOQ : 1 set Price : USD 4000-10000 Contact Supplier Qingdao Honghesheng Industry Co., Ltd. Site Member 5 Years shandong, qingdao Since 2000 Business Type : Manufacturer Main Products : Open Mill Rubber Mixing, Rubber Kneader Machine, Plate Vulcanizing Press Total Annual : 3000000-6000000 Employee Number : 500~1000 Certification Level : Site Member Discover similar products 1000mm Rubber Plate Vulcanizing Press Machine For HOT Highway Slow Down Speed Contact Now 21MPA 7.5KW 650X650mm Rubber Vulcanizer Heating Press Machine Contact Now CE ISO 700X700mm 350T 11KW Plate Vulcanizing Press For Rubber Contact Now AEM Inlet Rubber Pipe Hydraulic Vulcanizing Hot Press Molding Machine Contact Now professional manufacturer Engine Inlet And Outlet Pipe Hot Press Molding Machine Contact Now big C tyre tire tread press machine/rubber vulcanizing press Contact Now Rubber Tread Making Plant /tire tread making machine / vulcanizing press Contact Now Rubber Car Stopper Vulcanizer Making Machine Contact Now rubber flat panel curing press/Rubber Shoe sole Vulcanizing machine Contact Now Forged Steel Rubber Compression Mold High Hardness Contact Now View More Watch related videos 00:45 Truck Mat Mould Grass Mat Mould Rubber Tile Mould for Vulcanizing Machine Watch video 00:45 Truck Mat Mould Grass Mat Mould Rubber Tile Mould for Vulcanizing Machine Watch video 03:00 Rubber Hydraulic Vulcanizing Press Machine Steam Heating Watch video 03:00 100T Silicone Bracelet Plate Vulcanizing Press For Rubber Product Watch video 03:00 100T Silicone Bracelet Plate Vulcanizing Press For Rubber Product Watch video Find Similar Products By Category: Supplier Homepage Products Plate Vulcanizing Press MachineU China Products Machinery Plastic & Rubber Processing Machinery Rubber Product Making Machinery Contact Supplier Message* Email* Phone or WhatsApp* Name Company Submit Requirement Please reply me within 24 hours. Yes! I would like your verified suppliers matching service! Submitted successfully! Your request message has been successfully sent to the supplier. Please keep in touch and they will contact you as soon as possible. OK
