15KW To 280KW Rubber Sheet Rubber Calender Machine 250mm To 800mm Dia
15KW To 280KW Rubber Sheet Rubber Calender Machine 250mm To 800mm Dia
15KW To 280KW Rubber Sheet Rubber Calender Machine 250mm To 800mm Dia
15KW To 280KW Rubber Sheet Rubber Calender Machine 250mm To 800mm Dia
15KW To 280KW Rubber Sheet Rubber Calender Machine 250mm To 800mm Dia
15KW To 280KW Rubber Sheet Rubber Calender Machine 250mm To 800mm Dia
15KW To 280KW Rubber Sheet Rubber Calender Machine 250mm To 800mm Dia
15KW To 280KW Rubber Sheet Rubber Calender Machine 250mm To 800mm Dia
15KW To 280KW Rubber Sheet Rubber Calender Machine 250mm To 800mm Dia
15KW To 280KW Rubber Sheet Rubber Calender Machine 250mm To 800mm Dia
Specifications
Brand Name :
HHS
Model Number :
XY-3L-630-2430
Certification :
CE/ISO
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD:5000-90000 /SET
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 sets/month
Delivery Time :
30 SETS/MONTH
Packaging Details :
wood package/20-40 gp
colour :
all
about weight :
4.8t-126t
motor power :
15kw-280kw
roller diameter :
230-810
advantage :
high efficiency
Description

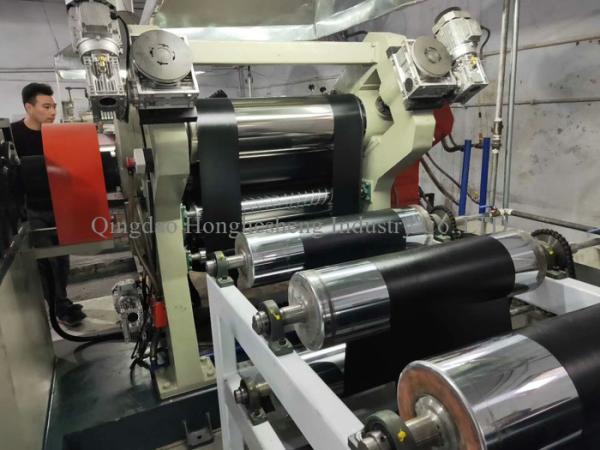

Rubber Sheet Calendering Machine / Rubber Calender Machine

Product Description

We can make 2 rolls, 3rolls and 4 rolls; Φ250-Φ800mm; I type, r type, L type and s type calenders.

1. Tailored structure, easy to operate and install.

2. There are many speeds and speed ratios available, which can satisfy most customers’ formula and technique requirements.

3. Frame and base., looking very nice, are welded and treated by annealing for stress relieving.

4. The speed reducer is the hard-tooth surface gear reducer of Class 6 precision, which has long service life and low noise.

5. Perfect emergency stop device can ensure the safety of person and equipment

6. The seal structure with special design can eliminate the leaking phenomenon of lubricating oil

7. The calendar is equipped with rolling bearings.

8. The roll is made of chilled cast iron alloy (LTG-H), equipped with rotating joint. Its surface finish is over Ra0.8.bored and drilled rolls are optional.

product parameter

Model XY-4 630 XY-3I 1120A
XY-3 1120A
XY-3l1120A		 XY-3I 1400 XY-3I 1200
XY-3I 1500		 XY-3I 1730 XY-3I 2130
Roll diameter (mm) 230 360 400 450 610 710
Roll working length (mm) 630 1120 1400 1200(1500) 1730 2130
Roll speed ratio 1:01:01
1:1.42:1		 1:01:01
0.733:1:1
0.733:1:0.733		 1:01:01
1:1.383:1.383
1:1.383:1		 1:01:01
1:1.5:1		 1:01:01
1:1.4:1		 1:01:01
1:1.48:1
Middle-roll linear speed (m/min) 7.97 7.0-21.06 8.8-26.39 8.36-25.08 5.4-54 8-50
Adjusting nip range (mm) 0-7 0-10 0-10 0-6 0-20 0-20
Min.Calendering product thickness (mm) 0.2 0.2 0.2 0.15 0.15 0.15
Calendering product width (mm) 100-500 500-920 1200 1100(1400) 1500 1900
Motor power (kw) 7.5 40/13.3 55/18.3 75/25 132 185
Overall dimensions (mm)

2570×740×

1500

5550×1640×

2120

6500×1500×

2440

7120(7420)×2200×

2900

7010×3950×

3730

7650×4560×

4080
Weight (kg) ~4200 ~12750 ~26000 ~27000 ~52000 ~67000


15KW To 280KW Rubber Sheet Rubber Calender Machine 250mm To 800mm Dia15KW To 280KW Rubber Sheet Rubber Calender Machine 250mm To 800mm Dia15KW To 280KW Rubber Sheet Rubber Calender Machine 250mm To 800mm Dia15KW To 280KW Rubber Sheet Rubber Calender Machine 250mm To 800mm Dia15KW To 280KW Rubber Sheet Rubber Calender Machine 250mm To 800mm Dia15KW To 280KW Rubber Sheet Rubber Calender Machine 250mm To 800mm Dia

Features&Pictures

Motor&Electric:

a. Equiped with "SIEMENS" "MITSUBSHI" "CHINT",etc.
b. Imported PLC auto control,Safe, Seliable,Stable.

c. Patented design, energy conservation.

Transmission System:
