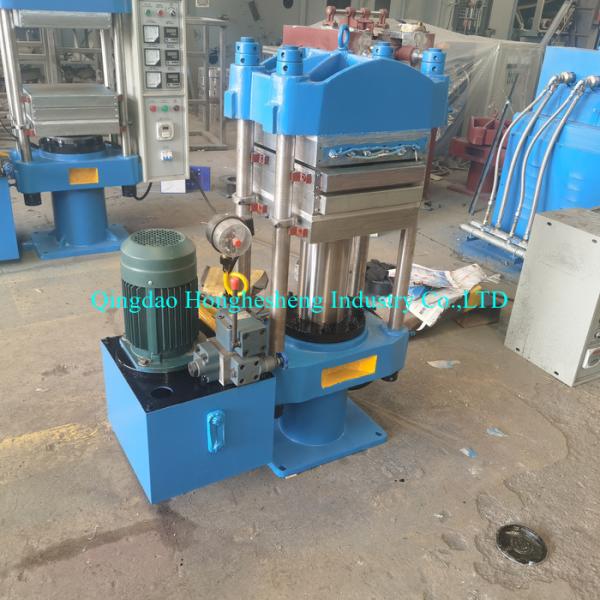

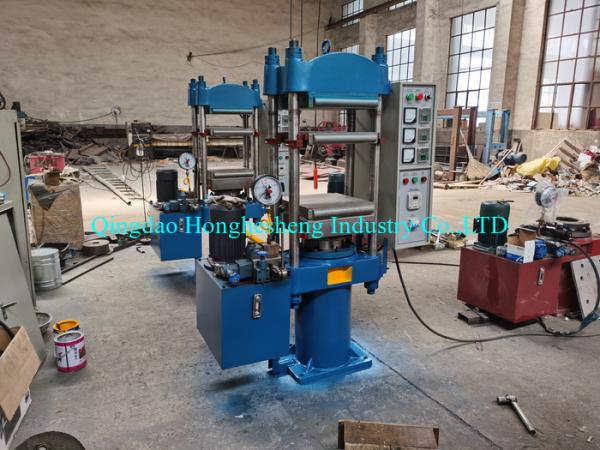

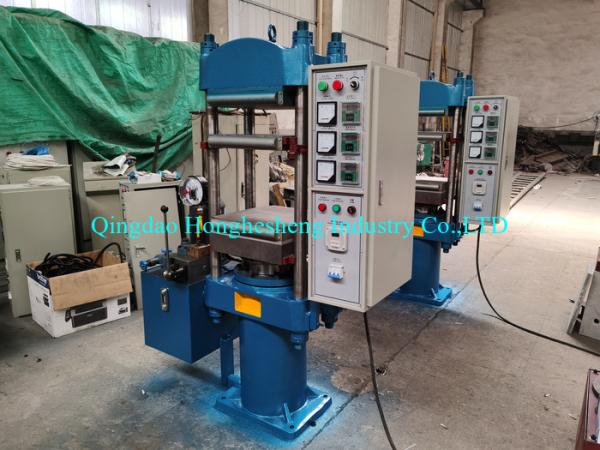

CE ISO 700X700mm 350T 11KW Plate Vulcanizing Press For Rubber

Specifications

Brand Name :

HHS

Model Number :

XLB100-300

Certification :

Place of Origin :

Qingdao Shangdong

MOQ :

1 set

Price :

USD 4000-10000

Payment Terms :

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability :

60 sets/Year

Delivery Time :

15-30 work days

Packaging Details :

standard wood package or based on clients request

Type :

Vulcanizer

Colour :

blue white,customized

Voltage :

customized

Power(W) :

5.5KW

Temperature :

300 degree

Working Layers :

1-4layers

Plates :

300-2100mm

Hot Plates Material :

Q-235 material.

Heating :

electricity , steam heating , conduction oil heating .

Weight :

2000 kg

advantage :

high production

Description

XLB-D/Q Series Plate Vulcanizing Press For Rubber Products With CE ISO New Price

1. Product Application

This rubber vulcanizing machine is belongs to medium-sized plate vulcanizing machine series, mainly for the rubber vulcanization, generally USES the pillar type and frame type structure, compact structure, beautiful modelling, and mold force is great. This machine is with its unique double temperature station structure and high pressure adapts to manufacturing all kinds of rubber products, such as Silicon Wristband,rubber tile,solid tire, rubber slippers, shoe sole, rubber stamp, etc.we can also manufacture large vulcanizing machine for conveyor belt ,band .etc.

Feature of rubber plate vulcanizing press:

1. Automatic ascending,bumping,pressurization and descending operations.

2. High speed ascending, pressure retaining for better product quality.

3. Fast release valve for fast descending but incorporates adjustable speed.

4. Depressurization can be adjusted to suit thickness of products.

5. Special designedplatens for even heating area.

6. The above features can be incorporated in automatic and semi-automatic machines.

Main products:

Rubber mat,seal,sheet making machine ( vulcanizing press)

Rubber shoe sole making machine ( vulcanizing press)

Rubber tile machine

EVA foaming vulcanizing press

Solid tire vulcanizing press machine

Bale cutter

Open mixing mil

Kneader

2. Product Paramenters

odel	XLB-650X650	XLB-600X600	XLB-700X700	XLB-800X800/1000
Clamping force	250T	300T	350T	500T
Max system pressure	21MPA	21MPA	21MPA	21MPA
Stroke	300mm	300mm	300mm	300mm
Rapid clamping speed	60mm/s	60mm/s	60mm/s	60mm/s
Plate size	650*650mm	600600mm 700700mm	700*700mm	800800mm 1000850mm
Daylight	300mm	300mm	300mm	300mm
Working layer	customized	customized	customized	customized
Max temperature	300C	300C	300C	300C
Motor	7.5kw	7.5kw	11kw	13kw
Control	PLC+HIM	PLC+HIM	PLC+HIM	PLC+HIM

Model	XLB-50T	XLB-100T	XLB-150T	XLB-200T
Clamping force	50t	100T	150T	200T
Max system pressure	21Mpa	21Mpa	21Mpa	21Mpa
Stroke	250mm	250mm	300mm	300mm
Rapid clamping speed	60mm/s	60mm/s	60mm/s	60mm/s
Plate size	380*380mm 400/400mm	400400mm 450450mm 500*500mm	500*500mm	510540mm 600550mm
Daylight	350mm	350mm	350mm	350mm
Working layer	customized	customized	customized	customized
Max temperature	300C	300C	300C	300C
