6.5 To 12 Inch 14KW Tire Retreading Equipment Tyre Recapping Machine Buffer Builder
6.5 To 12 Inch 14KW Tire Retreading Equipment Tyre Recapping Machine Buffer Builder
6.5 To 12 Inch 14KW Tire Retreading Equipment Tyre Recapping Machine Buffer Builder
6.5 To 12 Inch 14KW Tire Retreading Equipment Tyre Recapping Machine Buffer Builder
Specifications
Brand Name :
HHS
Model Number :
HD-2-20
Certification :
ASME CE, ASME CE
Place of Origin :
Shandong, China
MOQ :
1 set
Price :
USD:5000-220000 /SET
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 sets/month
Delivery Time :
20 working days
Packaging Details :
wood package /20-40 container
Max Working Press :
1.0 MPa
Warranty :
1 years
Core Components :
PLC, Pressure vessel
Color :
Customer's Requirements
Advantage :
full automatic
Key Selling Points :
Easy to Operate
Voltage :
380V/220V,for your optional
Dimension(L*W*H) :
6000MM*2500MM*2500MM
Weight :
11000KG
Work temperature :
150~200℃ curing temperature
Description

Product Description

Characteristic

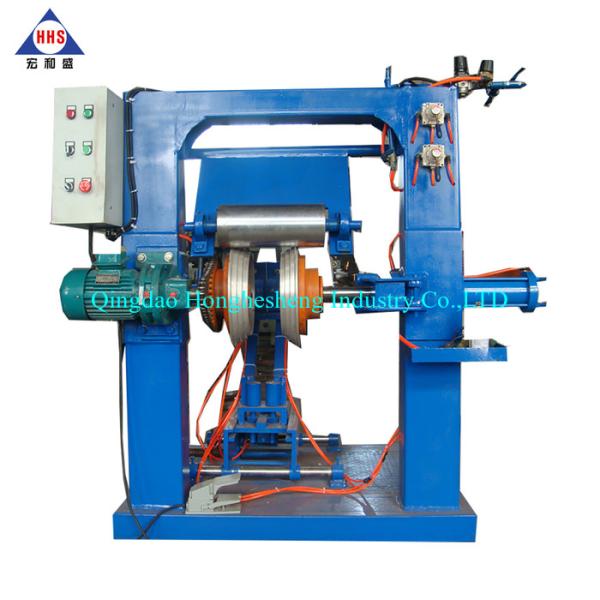

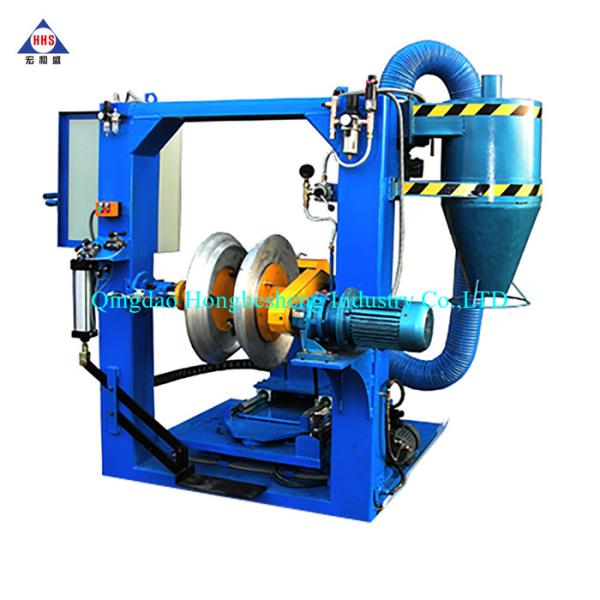

Old tyre buffing machine is our company according to the advantages of various grinding machine, special design of the latest can inflatable grinding tire machine.
1. The machine work is simple and practical, grinding tire of good quality.
2. The machine use the most popular grinding head: blade type grinding head. Long service life, the effect is good.
3. The machine at work, tire body inflatable, can increase grinding quantity and improve work efficiency.

4. The machine can buff all kinds size tires that from 6.50 to 12.00.

Specifications:

1. Tire retreading machine- tire buffing machine.
2. According to the needs of users tailor make.
3. Tire body radian accurate.

Hydraulic description:
This machine hydraulic combined superposition type electromagnetic valve, tire body mobile motor, adopts hydraulic lock device, stop motion, oil cylinder never move. Movement speed, can undertake stepless speed regulation, work up, smooth and accurate.
Aerodynamic description:
This machine pneumatic adopt manual type, all kinds of sports is equipped with corresponding manual valve, simple operation. Tire body inflatable into, begin to use total pressure of the air, filled, closed stop valve, open the other way, stable tire body decompression loop in the pressure within 0.2-0.3 Mpa. If overpressure, relief valve, pressure.

Name Tire buffing machine
Hydrulic pressure 8
Weight(kg) 1364
Dimension(mm) 2180*2100*2000
Power(kw) 14

Matching complete tire retreading equiment link:

Hot tire retreading machine Cold tire vulcanizing tank Tire building machine
