XPG800 Rubber Piece Batch Off Cooler Batch Off Cooling Machine 1400mm Hanging Height
XPG800 Rubber Piece Batch Off Cooler Batch Off Cooling Machine 1400mm Hanging Height
XPG800 Rubber Piece Batch Off Cooler Batch Off Cooling Machine 1400mm Hanging Height
XPG800 Rubber Piece Batch Off Cooler Batch Off Cooling Machine 1400mm Hanging Height
XPG800 Rubber Piece Batch Off Cooler Batch Off Cooling Machine 1400mm Hanging Height
XPG800 Rubber Piece Batch Off Cooler Batch Off Cooling Machine 1400mm Hanging Height
XPG800 Rubber Piece Batch Off Cooler Batch Off Cooling Machine 1400mm Hanging Height
XPG800 Rubber Piece Batch Off Cooler Batch Off Cooling Machine 1400mm Hanging Height
Specifications
Brand Name :
HHS
Model Number :
XPG-600
Certification :
ISO9001:2008
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD:8000-60000 /SET
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 sets/month
Delivery Time :
35 working days
Packaging Details :
wood package /20-40 container
Place Of Origin :
Shandong, China
Condition :
New
Voltage :
380V
Suitable sheet size :
600-900mm
Dimension(L*W*H) :
14850/18600*1880*3100mm
Weight :
20T
Warranty :
One Year
After-sales Service :
Engineers available to service machinery overseas
Power :
20-26kw
Color :
as customer require
Rubber strip hangin :
0.117-2.3m/min
Max. hanging height :
1400mm
Description

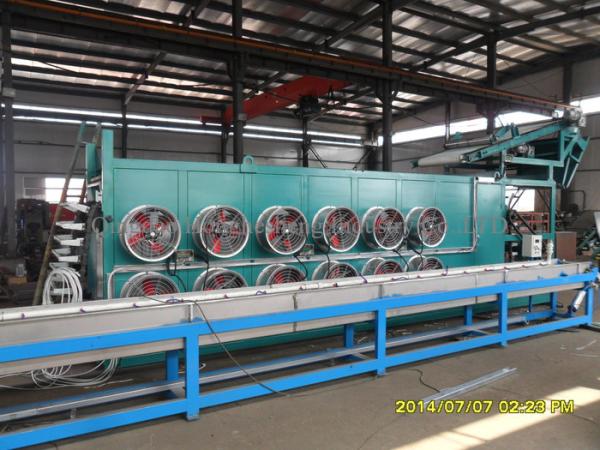

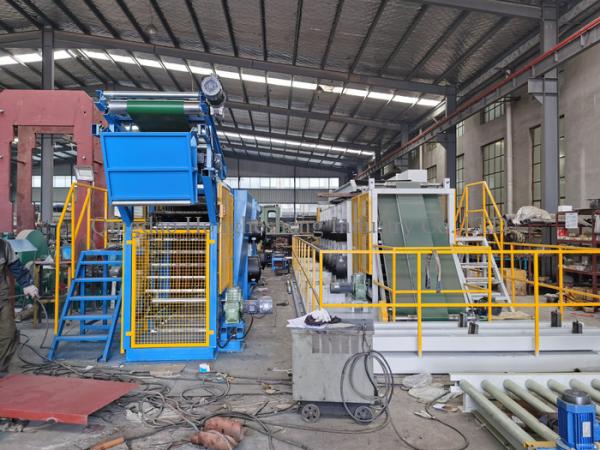

Rubber Piece Cooling Machine Batch Off Cooler Line / Batch Off Cooling

1. Main uses

This machine is suitanble for mixer,refining the mixer tablets or twin-screw extrusion pressure after the rubber piece cooling and laminated and slice.

2. Structure features

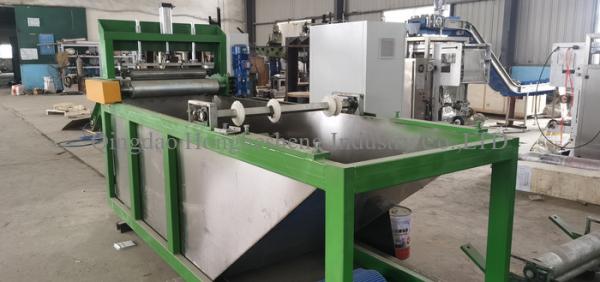

Having raised to two kinds of structure and form, rack,forced air vertical again. Hung stem from step cylinder or motor reducer drive. Basically has two main electriccontrol system, the most. Host is divided again connector, printing, longitudinal cutting device,isolating agent cooling, improve device, cooling,automatic pendulum hanged piece rubber device, weighing,baluster, platform and supporting frame, etc. Control system by controlling box, and set up an emergencycontrol device among key points.

Users can choose according to the actual demand of high and low configuration. Film cooling line with high configuration of hydraulic automatic pendulum slice laminated rubber, plastic, COINS COINS neat rate than 100mm, Automatic feeding plate sod the input and output.Automatic device; up adhesive Automatic cutting device,can achieve unattended operation, high degree of automation.

XPG800 Rubber Piece Batch Off Cooler Batch Off Cooling Machine 1400mm Hanging HeightXPG800 Rubber Piece Batch Off Cooler Batch Off Cooling Machine 1400mm Hanging HeightXPG800 Rubber Piece Batch Off Cooler Batch Off Cooling Machine 1400mm Hanging HeightXPG800 Rubber Piece Batch Off Cooler Batch Off Cooling Machine 1400mm Hanging HeightXPG800 Rubber Piece Batch Off Cooler Batch Off Cooling Machine 1400mm Hanging HeightXPG800 Rubber Piece Batch Off Cooler Batch Off Cooling Machine 1400mm Hanging Height

Technical Parameter
Applicable rubber sheet specification (4-12)x600(900)
Power supply(V/HZ) 380/50
Air source (Mpa) 0.4-0.8
Max. receiving linear velocity of conveyor belt (m/min) 40
Moving speed of plastic hanging rod (m/min) 0.117-0.75
Max. hanging height of rubber sheet (mm) 1400
Axial fan FTA-8 (KWxPCS) 0.37x48 0.37x60
Max. swing sheet length (adjustable) (m) 1.3
Swing sheet frequency (m/min) 13
Sheet temperature (for reference) Ambient temperature +5centigrade degree
Cooling reducer motor XWD1.1-4-1/29
Hanging rod reducer motor XWD2.2-6-1/35
Conveyor reducer motor XWD5.5-85-1/595
Lift reducer motor XWD3-5-1/23
Swing sheet reducermotor XWD1.1-5-1/87
XPG800 Rubber Piece Batch Off Cooler Batch Off Cooling Machine 1400mm Hanging HeightXPG800 Rubber Piece Batch Off Cooler Batch Off Cooling Machine 1400mm Hanging HeightXPG800 Rubber Piece Batch Off Cooler Batch Off Cooling Machine 1400mm Hanging Height
