4D 4.35D Roller Head Extruder Rubber Machine Hose Retread Rubber Extrusion Equipment
4D 4.35D Roller Head Extruder Rubber Machine Hose Retread Rubber Extrusion Equipment
4D 4.35D Roller Head Extruder Rubber Machine Hose Retread Rubber Extrusion Equipment
4D 4.35D Roller Head Extruder Rubber Machine Hose Retread Rubber Extrusion Equipment
4D 4.35D Roller Head Extruder Rubber Machine Hose Retread Rubber Extrusion Equipment
4D 4.35D Roller Head Extruder Rubber Machine Hose Retread Rubber Extrusion Equipment
4D 4.35D Roller Head Extruder Rubber Machine Hose Retread Rubber Extrusion Equipment
4D 4.35D Roller Head Extruder Rubber Machine Hose Retread Rubber Extrusion Equipment
4D 4.35D Roller Head Extruder Rubber Machine Hose Retread Rubber Extrusion Equipment
4D 4.35D Roller Head Extruder Rubber Machine Hose Retread Rubber Extrusion Equipment
Specifications
Brand Name :
HHS
Model Number :
XJ65-200
Certification :
CE; ISO
Place of Origin :
Shandong, China
MOQ :
1 set
Price :
USD:20000-80000 /SET
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
50 sets/month
Delivery Time :
20 working days
Packaging Details :
wood package /20-40 container
Plastic Processed :
PVC, WPC, PP PE PVC WPC
Screw diamete :
65-200mm
Screw L/D Ratio :
22
L/D :
4-4.35
Voltage :
380V/50HZ or as your requirements
Dimension(L*W*H) :
2300x2500x3200
Power (kW) :
80
Weight (KG) :
3000 KG
Description

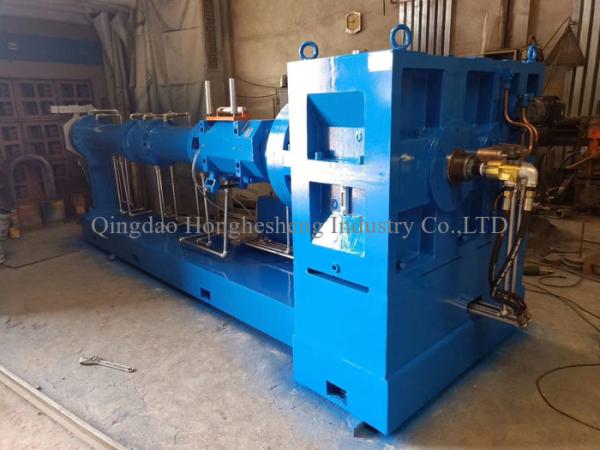

Rubber Roller Head Extruder Rubber Machine For Rubber Hose Retread

1. Product Application

extruder for rubber hose is applicable for rubber or plastic products extruding(often been used to extrude pipe, sheet, strip, pellets, tire tread, inner tube, etc), straining( used to filtering impurities from rubber). The machine also can be used for plasticating, mixing and refining of rubber and plastics, and mixing of rubber and synthetic rubber.

Main Features

1) The Components Parts Gun Feeder Rubber Extruder Head is simple structure ,easy in installation and maintenance.

2) The rubber extruder adopts advanced world famous brand components in hydraulic parts ,electric parts and operation parts.

3) The rubber profile extruder is energy saving, high productivity , good plasitcization and refined glue quality characteristic.

4) The rubber profile extruder machine can be equipped with various extrusion heads as required by users.

5) A machine body temperature measuring and indicating device is installed.The feeding zone is equipped

with side rolls for the enhancement of feeding capability.

6) The screws and bushes are subjected to nitrogenation treatment to get enough strength and wear-resistance.
7)The reducer has a forced lubrication unit,which is featured by high transmission efficiency,long service life and low noise.
8) The machine is driven by a variable-speed motor.
9) The side rolls are designed as side-open type for easy rubber removal.

10) ISO, CE, SGS, GOST certificate.

Technical parameter
Model
XJ-65
XJ-85
XJ-115
XJ-150
XJ-200
Screw outer diameter
65
85
115
150
200
Length-diameter ration
4
4.3
4.8
4.43
4.35
Product capacity(kg/h)
50-80
70-210
100-420
700-1200
1500-2200
Motor power(kw)
7.5
11/15
22
18.3-55
25-75
Size
1630*604*1050
2050*700*1200
1630*604*1050
3411*814*1470
4564*1800*150

4D 4.35D Roller Head Extruder Rubber Machine Hose Retread Rubber Extrusion Equipment4D 4.35D Roller Head Extruder Rubber Machine Hose Retread Rubber Extrusion Equipment
4D 4.35D Roller Head Extruder Rubber Machine Hose Retread Rubber Extrusion Equipment
4D 4.35D Roller Head Extruder Rubber Machine Hose Retread Rubber Extrusion Equipment

4D 4.35D Roller Head Extruder Rubber Machine Hose Retread Rubber Extrusion Equipment

4D 4.35D Roller Head Extruder Rubber Machine Hose Retread Rubber Extrusion Equipment4D 4.35D Roller Head Extruder Rubber Machine Hose Retread Rubber Extrusion Equipment4D 4.35D Roller Head Extruder Rubber Machine Hose Retread Rubber Extrusion Equipment

4D 4.35D Roller Head Extruder Rubber Machine Hose Retread Rubber Extrusion Equipment4D 4.35D Roller Head Extruder Rubber Machine Hose Retread Rubber Extrusion Equipment

4D 4.35D Roller Head Extruder Rubber Machine Hose Retread Rubber Extrusion Equipment4D 4.35D Roller Head Extruder Rubber Machine Hose Retread Rubber Extrusion Equipment4D 4.35D Roller Head Extruder Rubber Machine Hose Retread Rubber Extrusion Equipment
