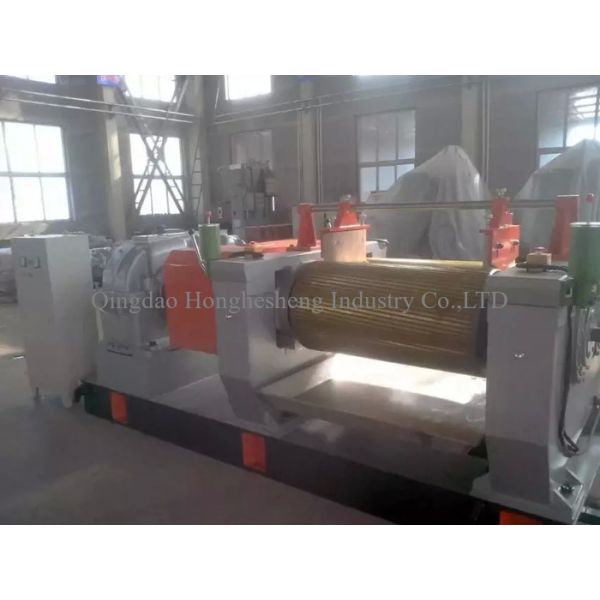

XKP-450 Tire Cracker Mill / Rubber Crusher For Reclaimed Rubber Production / Waste Tire Recycling Machine
XKP-450 Tire Cracker Mill / Rubber Crusher For Reclaimed Rubber Production / Waste Tire Recycling Machine
XKP-450 Tire Cracker Mill / Rubber Crusher For Reclaimed Rubber Production / Waste Tire Recycling Machine
XKP-450 Tire Cracker Mill / Rubber Crusher For Reclaimed Rubber Production / Waste Tire Recycling Machine
Specifications
Brand Name :
honghesheng
Model Number :
xkp400-450-560
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
USD:40000/SET
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 SETS/MONTH
Delivery Time :
30 working days
Packaging Details :
wood package /20-40GP/HC
Type :
Tire Machine,Rubber Cutting Machine,continuous type
Power(w) :
90kw~200kw
After-sales service provided :
Engineers available to service machinery overseas
Voltage :
380V/50HZ,Customer Request
Name :
Waste Tyre Recycling Machine Plant/ Used Tire Shreddere,Open mill tyre recycling reclaimed rubber plant
Capacity :
More than 500kg per hour,200-4000kg/h,1500 kg/h
Year :
new
Product name :
Scrap Tire Recycling Equipment,Rubber Tire Shredder Machine Waste Tyre Recycling Plant,Steel Wire Separation Waste Truck Tyres Recycling Machinery
Function :
Tire Powder Recycling Machine,Make Rubber Granule,crumb tires into 30mesh powder
Raw material :
waste tire sealing sheet,rubber scraps,truck tire,car tire
End product :
rubber granules and powders,rubber granules/rubber powder,tire steel,tire fiber
Usage :
Used Tire Recyling,Waste Tyre Dispose
Description

First Introduction

1. Detailed informations:

This machine is made up of one base, frame, front rollers, transmission gears, deceleration machine, adjustable from device, the temperature adjusting device, cutting knife components, the winder structure, safety switch and electric control system composition.

The rollers material for cold hard alloy iron, has high hardness &abrasion resistances. The temperature adjusting device, may to the general rollers within the steam and cooling water adjust the temperature to meet the technological requirements.

Turn the handwheel recoiler constitutive winding roller, can adjust the desired.

The machine is equipped with an braking brakes, emergencies, pull the security lever can immediately brake, which reduces the personal accident.

2. Chracteristics:

1.Transmission with quality.

2.The rolls are made of chilled cast iron with wear-resistance hard surface.

3.The rollers are grooved.

4.The bored rolls can be cooled through inputting the steam and colling water.

5.The two rollers rotate with different speed ,so that rubber material can be processed

6.The Excellent crushing structure is open gear transmissions

7.The product has ISO9001 CE standard and SGS certification .

3. Parameter of the Rubber Cracker mill:

Parameters/version XKP-400 XKP-450 XKP-560
Front roll diameter 400 450 560
Back roll diameter 400 450 510
Roll length 600 650 800
Front roll surface speed (m/min) 17.32 23.2 25.56
Friction ratio 1:1.38 1:1.38 1:1.30
Max. nip 8 8 8
Feeding capacity per (kg)

200-300

600-800

1500
Power(kw) 45 60 75
Size(l*w*h) 3950*1800*1780 4770*1846*1835 5064*2284*1978
Weight(kg) 7000 12000 19000

XKP-450 Tire Cracker Mill / Rubber Crusher For Reclaimed Rubber Production / Waste Tire Recycling MachineXKP-450 Tire Cracker Mill / Rubber Crusher For Reclaimed Rubber Production / Waste Tire Recycling MachineXKP-450 Tire Cracker Mill / Rubber Crusher For Reclaimed Rubber Production / Waste Tire Recycling Machine

XKP-450 Tire Cracker Mill / Rubber Crusher For Reclaimed Rubber Production / Waste Tire Recycling Machine

XKP-450 Tire Cracker Mill / Rubber Crusher For Reclaimed Rubber Production / Waste Tire Recycling MachineXKP-450 Tire Cracker Mill / Rubber Crusher For Reclaimed Rubber Production / Waste Tire Recycling Machine

XKP-450 Tire Cracker Mill / Rubber Crusher For Reclaimed Rubber Production / Waste Tire Recycling MachineXKP-450 Tire Cracker Mill / Rubber Crusher For Reclaimed Rubber Production / Waste Tire Recycling MachineXKP-450 Tire Cracker Mill / Rubber Crusher For Reclaimed Rubber Production / Waste Tire Recycling Machine

XKP-450 Tire Cracker Mill / Rubber Crusher For Reclaimed Rubber Production / Waste Tire Recycling Machine

XKP-450 Tire Cracker Mill / Rubber Crusher For Reclaimed Rubber Production / Waste Tire Recycling MachineXKP-450 Tire Cracker Mill / Rubber Crusher For Reclaimed Rubber Production / Waste Tire Recycling MachineXKP-450 Tire Cracker Mill / Rubber Crusher For Reclaimed Rubber Production / Waste Tire Recycling Machine
