6500kg 80L Rubber Dispersion Kneaders Rubber Kneading Machine 3200*1900*2950mm
6500kg 80L Rubber Dispersion Kneaders Rubber Kneading Machine 3200*1900*2950mm
6500kg 80L Rubber Dispersion Kneaders Rubber Kneading Machine 3200*1900*2950mm
6500kg 80L Rubber Dispersion Kneaders Rubber Kneading Machine 3200*1900*2950mm
Specifications
Brand Name :
honghesheng
Model Number :
XSN-35
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD17187/SET
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300 sets/month
Delivery Time :
30 working days
Packaging Details :
wood package and 20/40 GP/HC
Word Volume :
35L
Power(w) :
55KW,2.2KW for lab two roll mill
Type :
Rubber Kneader,Electric heating water cooling
Color :
orange,Blue or Green,customized
Application :
Rubber / Plastic Mixing,Mixing Rubber or Press rubber sheet
Warranty :
1 Year
After-sales service provided :
Engineers available to service machinery overseas
Condition :
New
Weight :
6500KG
Dimension(l*w*h) :
3200*1900*2945mm
Description

Rubber Dispersion Kneader/Rubber Kneading Machine

1. Basic information:

For masticating and kneading natural rubber, synthetic rubber, EVA or PVC pellets with various kinds chemical material and warming the cold material which shall be supplied to the calender, embossing calender or hot presses.

2. Machine Parameters:

Packing detail Plastic cover
Type rubber kneader
Specific Use rubber compound mixing .
Material rotor with hard allow welding
Place of Origin Qingdao ,shandong ,China
Brand Name HHS
Model Number XSN-35
Color Customized
Product name banbury mixer

Parameter/model X(S)N-35×32
Total volume 80
Working volume 35
Motor power 55
Tilting motor power 2.2
Tilting angle (°) 140
Rotor speed (r/min) 32/24.5
Pressure of compressed air 0.6-0.8
Capacity of compressed air (m/min) ≥0.9
Pressure of cooling water for rubber (MPa) 0.3-0.4
Pressure of steam for plastic (MPa) 0.5-0.8
Size (mm) Length 3200
Width 1900
Height 2950
Weight (kg) 6500

3. Advantages:

A. Maximum Dispersion & High Production
Double blades with special spiral angle, proper clearance & high cooling effect gives excellent dispersion which can not be obtained from an open mill. Its production is 4 to 5 times more than an ordinary mixing mill thus saving on labor and electricity.

B. Super sealing,no powder leakages.

Both sides of the rotor blades are injected welding a iron alloy ring, which assures sealing and protects the blades from abrasion.Imported bakelite sealing ring,which make super sealing.The chamber around are designed with groove,then embeded with rubber stip,this make sure the whole mixing chamber is well sealed.


C. No Foundation Requirement
The Kneader has a common bed plate for all parts and not require foundation.

D. Easy Cleaning & Colour Change
Mixing chamber can be tilted down for 140degree, which enables easy cleaning, because of this, different coloured compounds can be made without trouble.

E. Easy Operation
Easy operation with Push-buttons and hand lever valves from the operation board.

F. Short Mixing Time
Mixing time ranges from 6 to 12 minutes depending on compound's specific gravity.

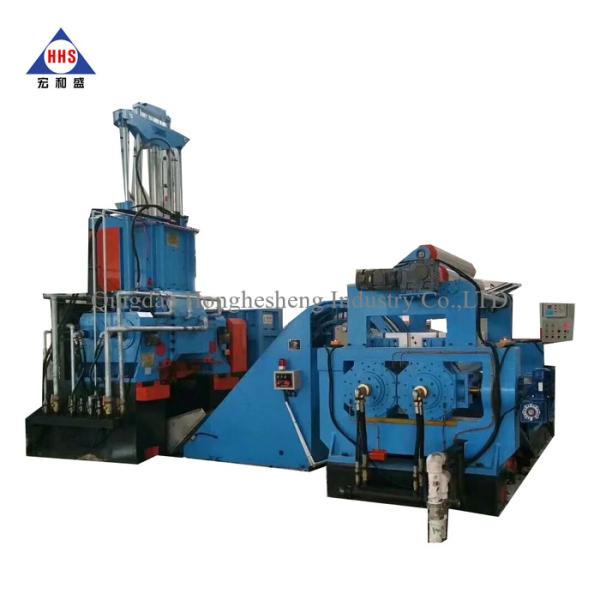

4. kneader Machine photos:

6500kg 80L Rubber Dispersion Kneaders Rubber Kneading Machine 3200*1900*2950mm6500kg 80L Rubber Dispersion Kneaders Rubber Kneading Machine 3200*1900*2950mm6500kg 80L Rubber Dispersion Kneaders Rubber Kneading Machine 3200*1900*2950mm6500kg 80L Rubber Dispersion Kneaders Rubber Kneading Machine 3200*1900*2950mm

6500kg 80L Rubber Dispersion Kneaders Rubber Kneading Machine 3200*1900*2950mm

6500kg 80L Rubber Dispersion Kneaders Rubber Kneading Machine 3200*1900*2950mm

6500kg 80L Rubber Dispersion Kneaders Rubber Kneading Machine 3200*1900*2950mm6500kg 80L Rubber Dispersion Kneaders Rubber Kneading Machine 3200*1900*2950mm6500kg 80L Rubber Dispersion Kneaders Rubber Kneading Machine 3200*1900*2950mm6500kg 80L Rubber Dispersion Kneaders Rubber Kneading Machine 3200*1900*2950mm6500kg 80L Rubber Dispersion Kneaders Rubber Kneading Machine 3200*1900*2950mm
