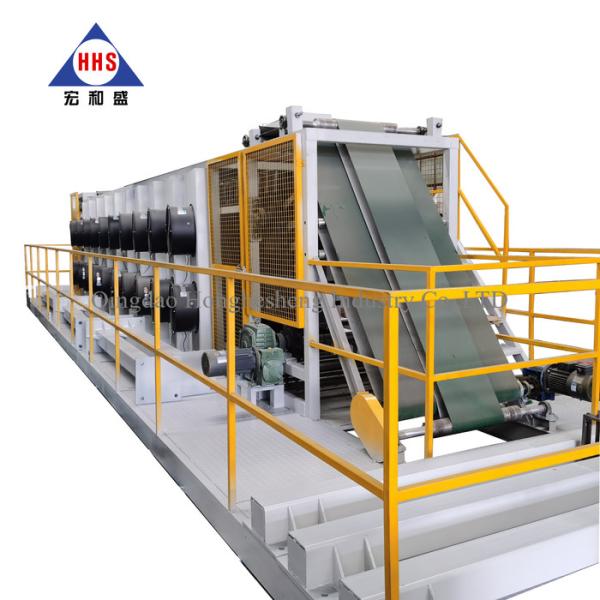

XPG600 10mm Thick Rubber Sheet Cooling Machine Hanging Type Rubber Sheet Cooler
XPG600 10mm Thick Rubber Sheet Cooling Machine Hanging Type Rubber Sheet Cooler
XPG600 10mm Thick Rubber Sheet Cooling Machine Hanging Type Rubber Sheet Cooler
XPG600 10mm Thick Rubber Sheet Cooling Machine Hanging Type Rubber Sheet Cooler
XPG600 10mm Thick Rubber Sheet Cooling Machine Hanging Type Rubber Sheet Cooler
XPG600 10mm Thick Rubber Sheet Cooling Machine Hanging Type Rubber Sheet Cooler
Specifications
Brand Name :
HHS
Model Number :
XPG-600
Certification :
ISO9001:2008
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD:8000-60000 /SET
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 sets/month
Delivery Time :
35 working days
Packaging Details :
wood package /20-40 container
Place Of Origin :
Shandong, China
Condition :
New
Voltage :
380V
Suitable sheet size :
600-900mm
Dimension(L*W*H) :
14850/18600*1880*3100mm
Weight :
20T
Warranty :
One Year
After-sales Service :
Engineers available to service machinery overseas
Power :
20-26kw
Color :
as customer require
Line speed :
5~25m/min
Maximum cutting :
450mm
Length tolerance of :
<3mm
Description

Rubber Sheet Cooling Equipment / Hanging Type Rubber Sheet Coolier Machine / Rubber Cooler Plant

1. Usage:

This batch-off machine is mainly used for down stream line equipment of internal mixer and cooling sheet ,it can cool the rubber sheets from high temperature to room temperature ,and applicable to any kinds of rubber materials.

2. Features:

This machine consists of take-off, print, slitting, transportation, immersing insulation, lifting, sheet cooling fan with low power, low noise, high wind pressure and large capacity. This machine adopts PLC auto control system and measures with electric balance. It has two kinds of installation, floor type and high-frame type, for the user to choose.

3. Advantages:

1. The operations of coating separant,air cooling,drying,cutting and wig-wag stacking are set in one single cooling machine,achieving continuous operation with higher efficiency.

2. Rubber sheet are soaked before coating separant ,so the coating effect is very good and no enviromental pollution.

3. Time of air cooling process for rubber sheet cooling is set very long, so cooling effect is excellent.

4. Rubber sheet can be cut into certain length during operation and the cutting length is adjustable.

5. With PLC control and frequency-control speed regulation,it is very convenient to control the whole working process.

4. Technical Parameters:

Item XPG-600 XPG-800 XPG-900
Max.rubber sheet width(mm) 600 800 900
The thickness of the rubber sheet(mm) 4-10 4-10 6-12

Rubber sheeting temperature over room

temperature after cooling

 5 5 5
Linear speed of taking-in conveyer(m/min) 3-35 3-35 3-35
Linear speed of sheet hanging bar(m) 1-1.26 1-1.26 1-1.26
Hanging height of the sheet hanging bar(mm) 1000 1200 1400
Number of cooling fans(Set) 12-16 20-32 24-32
Total power(kw) 16 20-26 25-35
Overall dimension(mm) 12400*2140*2820 (14850-18600)*2220*2860 (18000-21750)*2300*2980
About weight(t) 10 20 30

5. Machine Pictures:

XPG600 10mm Thick Rubber Sheet Cooling Machine Hanging Type Rubber Sheet CoolerXPG600 10mm Thick Rubber Sheet Cooling Machine Hanging Type Rubber Sheet CoolerXPG600 10mm Thick Rubber Sheet Cooling Machine Hanging Type Rubber Sheet CoolerXPG600 10mm Thick Rubber Sheet Cooling Machine Hanging Type Rubber Sheet CoolerXPG600 10mm Thick Rubber Sheet Cooling Machine Hanging Type Rubber Sheet CoolerXPG600 10mm Thick Rubber Sheet Cooling Machine Hanging Type Rubber Sheet CoolerXPG600 10mm Thick Rubber Sheet Cooling Machine Hanging Type Rubber Sheet CoolerXPG600 10mm Thick Rubber Sheet Cooling Machine Hanging Type Rubber Sheet Cooler

XPG600 10mm Thick Rubber Sheet Cooling Machine Hanging Type Rubber Sheet CoolerXPG600 10mm Thick Rubber Sheet Cooling Machine Hanging Type Rubber Sheet Cooler

XPG600 10mm Thick Rubber Sheet Cooling Machine Hanging Type Rubber Sheet CoolerXPG600 10mm Thick Rubber Sheet Cooling Machine Hanging Type Rubber Sheet CoolerXPG600 10mm Thick Rubber Sheet Cooling Machine Hanging Type Rubber Sheet Cooler
