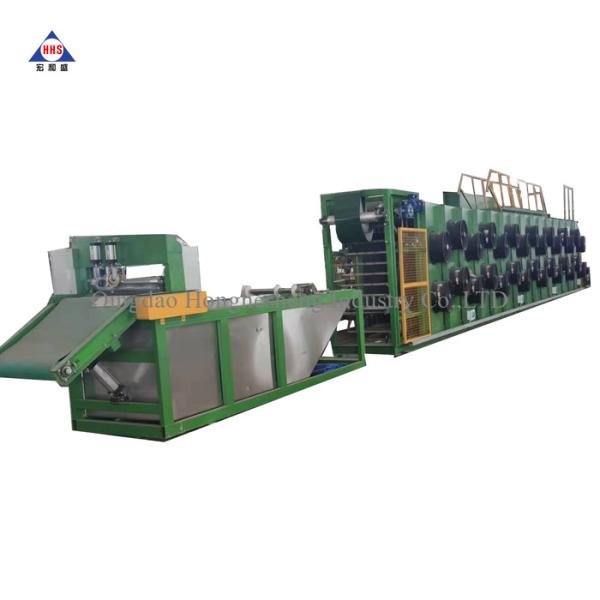

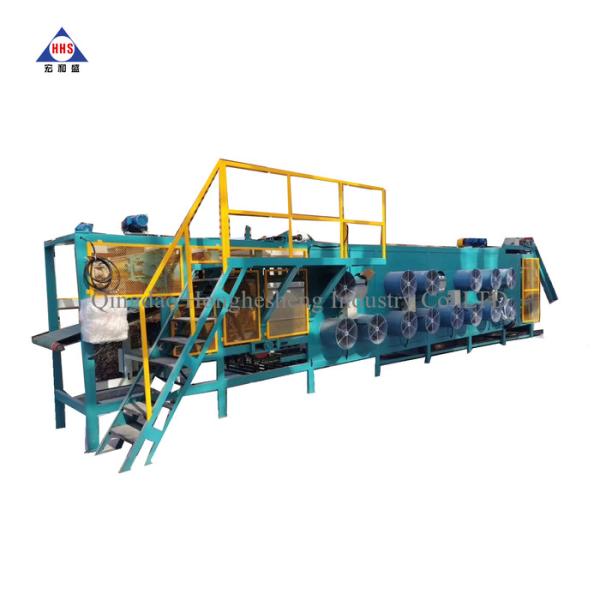

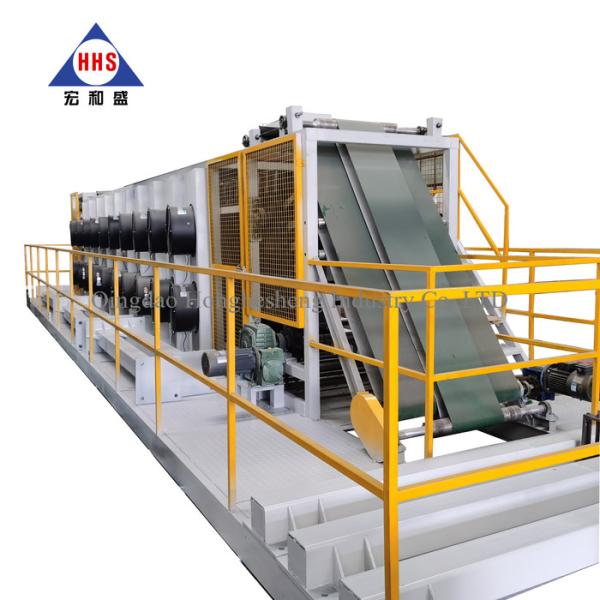

HHS 5m/Min To 25m/Min Batch Off Cooler Conveyor Belt Rubber Sheet Cooling Machine
HHS 5m/Min To 25m/Min Batch Off Cooler Conveyor Belt Rubber Sheet Cooling Machine
HHS 5m/Min To 25m/Min Batch Off Cooler Conveyor Belt Rubber Sheet Cooling Machine
HHS 5m/Min To 25m/Min Batch Off Cooler Conveyor Belt Rubber Sheet Cooling Machine
HHS 5m/Min To 25m/Min Batch Off Cooler Conveyor Belt Rubber Sheet Cooling Machine
HHS 5m/Min To 25m/Min Batch Off Cooler Conveyor Belt Rubber Sheet Cooling Machine
HHS 5m/Min To 25m/Min Batch Off Cooler Conveyor Belt Rubber Sheet Cooling Machine
HHS 5m/Min To 25m/Min Batch Off Cooler Conveyor Belt Rubber Sheet Cooling Machine
Specifications
Brand Name :
HHS
Model Number :
XPG-600
Certification :
ISO9001:2008
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD:8000-60000 /SET
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 sets/month
Delivery Time :
35 working days
Packaging Details :
wood package /20-40 container
Place Of Origin :
Shandong, China
Condition :
New
Voltage :
380V
Suitable sheet size :
600-900mm
Dimension(L*W*H) :
14850/18600*1880*3100mm
Weight :
20T
Warranty :
One Year
After-sales Service :
Engineers available to service machinery overseas
Power :
20-26kw
Color :
as customer require
Line speed :
5~25m/min
Maximum cutting :
450mm
Length tolerance of :
<3mm
Description

Batch Off Cooler / Rubber Sheets Cooling Machine / Conveyor Belts Cooling Line

1. Usage:

This batch-off machine is mainly used for down stream line equipment of internal mixer and cooling sheet ,it can cool the rubber sheets from high temperature to room temperature ,and applicable to any kinds of rubber materials.

2. Features:

This machine consists of take-off, print, slitting, transportation, immersing insulation, lifting, sheet cooling fan with low power, low noise, high wind pressure and large capacity. This machine adopts PLC auto control system and measures with electric balance. It has two kinds of installation, floor type and high-frame type, for the user to choose.

3. Advantages:

1. The operations of coating separant,air cooling,drying,cutting and wig-wag stacking are set in one single cooling machine,achieving continuous operation with higher efficiency.

2. Rubber sheet are soaked before coating separant ,so the coating effect is very good and no enviromental pollution.

3. Time of air cooling process for rubber sheet cooling is set very long, so cooling effect is excellent.

4. Rubber sheet can be cut into certain length during operation and the cutting length is adjustable.

5. With PLC control and frequency-control speed regulation,it is very convenient to control the whole working process.

4. Technical Parameters:

Version / parameter XPG-600-700 XPG-800-900
Lab specification (4-12)× 600-700mm (4-12)× 800-900mm
Front take-away coneyor belt max linear velocity 400m/min 400m/min
Rubber strip hanging barwoving speed 0.117-202m/min 400m/min
Axial Fan 0.37kw 5760m 3 /h 0.37kw 5760m 3 /h
Swing range and frequancy 1.3m 10-16 twice/min 1.3m 10-16 twice/min
Rubber strip temperature after cooling ≤ Room temperature add 5 degree more ≤ Room temperature add 5 degree more
Speed -adjusting frequency motor of lifting swing edvice XWD1.5-3-1/11 XWD7.5-7-1/43
Speed -adjusting frequency motor of rubber swing edvice XWD1.5-3-1/87 XWD1.5-3-1/87
Rubber bar pitch 160 or 101.6 160 or 101.6
Max. hanging height of rubber strip 1400mm 1400mm

HHS 5m/Min To 25m/Min Batch Off Cooler Conveyor Belt Rubber Sheet Cooling Machine

HHS 5m/Min To 25m/Min Batch Off Cooler Conveyor Belt Rubber Sheet Cooling MachineHHS 5m/Min To 25m/Min Batch Off Cooler Conveyor Belt Rubber Sheet Cooling MachineHHS 5m/Min To 25m/Min Batch Off Cooler Conveyor Belt Rubber Sheet Cooling MachineHHS 5m/Min To 25m/Min Batch Off Cooler Conveyor Belt Rubber Sheet Cooling MachineHHS 5m/Min To 25m/Min Batch Off Cooler Conveyor Belt Rubber Sheet Cooling Machine

HHS 5m/Min To 25m/Min Batch Off Cooler Conveyor Belt Rubber Sheet Cooling MachineHHS 5m/Min To 25m/Min Batch Off Cooler Conveyor Belt Rubber Sheet Cooling MachineHHS 5m/Min To 25m/Min Batch Off Cooler Conveyor Belt Rubber Sheet Cooling Machine
