160x350mm Silicone Plastic Used Rubber Mixing Mill Open Rubber Mixing Machine
160x350mm Silicone Plastic Used Rubber Mixing Mill Open Rubber Mixing Machine
160x350mm Silicone Plastic Used Rubber Mixing Mill Open Rubber Mixing Machine
160x350mm Silicone Plastic Used Rubber Mixing Mill Open Rubber Mixing Machine
160x350mm Silicone Plastic Used Rubber Mixing Mill Open Rubber Mixing Machine
160x350mm Silicone Plastic Used Rubber Mixing Mill Open Rubber Mixing Machine
160x350mm Silicone Plastic Used Rubber Mixing Mill Open Rubber Mixing Machine
160x350mm Silicone Plastic Used Rubber Mixing Mill Open Rubber Mixing Machine
Specifications
Brand Name :
HHS
Model Number :
XK160
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
USD4000/SET
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50SETS/MONTH
Delivery Time :
30 working days
Packaging Details :
wood package /20/40GP/HC
After-sales service provided :
Engineers available to service machinery overseas,Field installation,commissioning and training,Video technical support
Type :
Open Mixing Mill
Roller hardness :
50~60HRC
Bush :
nylon bush,bearing bush,ball bearing b
Voltage :
220V/380V/450V
Power(w) :
2.2KW
Weight :
660KG
Dimension(l*w*h) :
1200X650X1380mm
Warranty :
3 Year
Condition :
New
Description

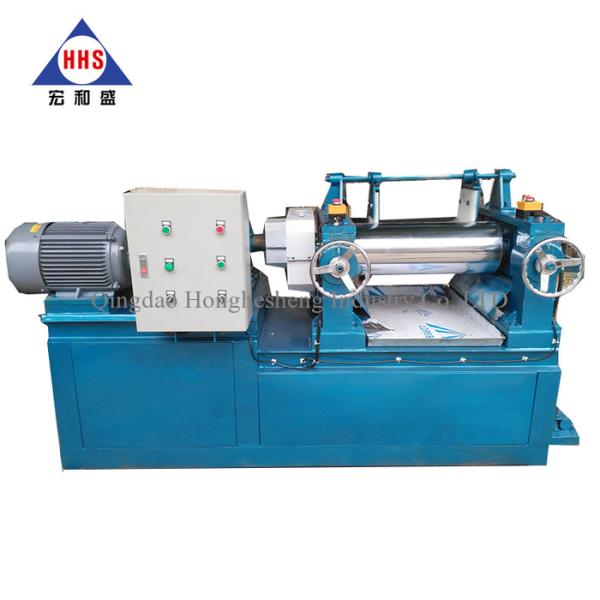

XK-160 Silicone Plastic Used Rubber Mixing Mill / Open Mill Rubber Mixing Machine

A. Mixing Mill Is Mainly Applicable For Both Nature And Synthetic Rubber.

1. the roll is made of chilled cast iron of vanadium and titanium alloy,the cavity machining,the roll surface temperature umformity.

2. The machine is equipped with over load protection device ,prevent the major componets from being damaged due to overloading.

3. The machine is equipped with an emergency brake,wehen the event of an emergeacy,pull the safety rod,the machine will stop immediately,safe and reliable.

4. the transmission system adopts the Harden Reducer,compact structure,low noice ,high efficiency,long service life.

5. Roller bearing of rolling bearings ,lubration of grease.

6. Electrical control part adopts domestic advanced electrical components ,Convenient operation,stable performance.

7. Adjusttable pitchiis manual of electric adjustable pitch.

B. Technical Parameters:

Model

 XK-120 XK-160 XK-200 XK-300
Diameter of roll mm 120 160 200 300
Length of roller face mm 350 350 500 650
Mixing Capacity kg 0.002-2 0.002-2.8 0.002-5 1-15
Front roll surface speed rpm 19 19 19 19
Friction ratio 1:1.35 1:1.35 1:1.35 1:1.27
Roll gap range mm 0-6 0-6 0-8 0-12
Driving Power KW 1.5 2.2 7.5 30
Heating Mode Electricity heating , Oil Heating ( option)
Cooling Mode Water Cooling ( option)
Roll Temperature Room temperature -- 300℃
Roll Hardness HRC 50 ~ 60
Temperature Accuracy ± 2 ℃ (we adopt the high accuracy PID micro computer controller)
Safety device It have 6 safety buttons and safety guard is option
Machine weight kg 460 660 860 2960
Overall dimension mm 1100x550x1380 1200x650x1380 2200x750x1380 2600x950x1580
Power 380V 3 phase 50-60hz

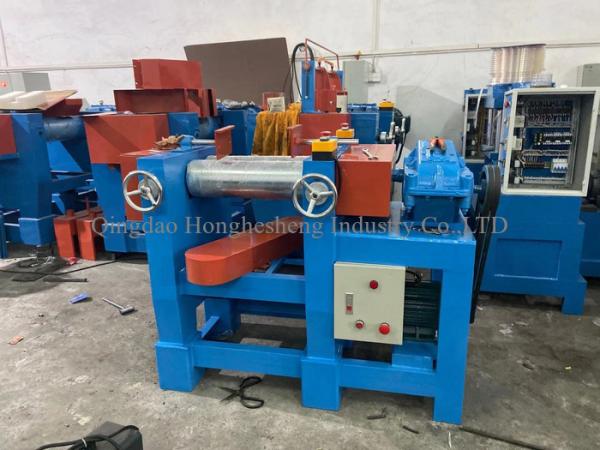

C. Open Mixing Mill

160x350mm Silicone Plastic Used Rubber Mixing Mill Open Rubber Mixing Machine160x350mm Silicone Plastic Used Rubber Mixing Mill Open Rubber Mixing Machine160x350mm Silicone Plastic Used Rubber Mixing Mill Open Rubber Mixing Machine160x350mm Silicone Plastic Used Rubber Mixing Mill Open Rubber Mixing Machine160x350mm Silicone Plastic Used Rubber Mixing Mill Open Rubber Mixing Machine160x350mm Silicone Plastic Used Rubber Mixing Mill Open Rubber Mixing Machine

160x350mm Silicone Plastic Used Rubber Mixing Mill Open Rubber Mixing Machine

160x350mm Silicone Plastic Used Rubber Mixing Mill Open Rubber Mixing Machine

160x350mm Silicone Plastic Used Rubber Mixing Mill Open Rubber Mixing Machine160x350mm Silicone Plastic Used Rubber Mixing Mill Open Rubber Mixing Machine160x350mm Silicone Plastic Used Rubber Mixing Mill Open Rubber Mixing Machine

160x350mm Silicone Plastic Used Rubber Mixing Mill Open Rubber Mixing Machine
