Specifications
Brand Name :
honghesheng
Model Number :
XK450
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
USD25000-6000/SET
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200SETS/MONTH
Packaging Details :
wood package /20/40GP/HC
After-sales service provided :
Engineers available to service machinery overseas,Field installation,commissioning and training,Video technical support
Type :
Open Mixing Mill
Roller hardness :
50~60HRC
Bush :
nylon bush,bearing bush,ball bearing Bush
Voltage :
380V,Customer's Request,380V/50HZ,220/380V,AC380V
Power(w) :
37kw,4.5KW,20KW,5KW for lab two roll mill
Weight :
5200kgs,1000kg,2T
Dimension(l*w*h) :
1100*700*1200mm,1226x830x1295mm,1*1.1*1.4(M),1100*650*1500,1160*920 *1370mm
Warranty :
1 Year
Condition :
New
Description

XK-450 Two Roll Open Mixing Mill / Rubber Mixing Mill / Open Rolling Mill

Mixing mill is mainly applicable for both nature and synthetic rubber.

1. the roll is made of chilled cast iron of vanadium and titanium alloy,the cavity machining,the roll surface temperature umformity.

2. The machine is equipped with over load protection device ,prevent the major componets from being damaged due to overloading.

3. The machine is equipped with an emergency brake,wehen the event of an emergeacy,pull the safety rod,the machine will stop immediately,safe and reliable.

4. the transmission system adopts the Harden Reducer,compact structure,low noice ,high efficiency,long service life.

5. Roller bearing of rolling bearings ,lubration of grease.

6. Electrical control part adopts domestic advanced electrical components ,Convenient operation,stable performance.

7. Adjusttable pitchiis manual of electric adjustable pitch.

Technical parameters:

Version XK-160 XK-250 XK-300 XK-400 XK-450 XK-560 XK-660
Roll diameter(mm) 160 250 300 400 450 560 660
Working length of rolls(mm) 320 620 750 1000 1200 1530 2130
Front roll surface speed(m/min) 8.99 15.3 15.1 18.65 24.32 27.72 28.6
Friction ratio 1:1.35 1:1.1 1:1.27 1:1.27 1:1.27 1:1.2 1:1.24
Max.nip (mm) 4 8 8 10 15 15 15
Capacity per.batch (kg) 1-2 10-15 15-20 18-35 25-50 35-50 165
Motor power (kw) 5.5 18.5 22 37 55 90 245
Overall dimensions(mm)

1160*920

*1370

3120*1322

*1500

3580*1550

*1695

4350*1850

*1780

5670*2390

*1670

5845*2284

*1978

7465*3662

*2080
Weight(kg) 1000 4000 5200 7600 12000 23000 49000

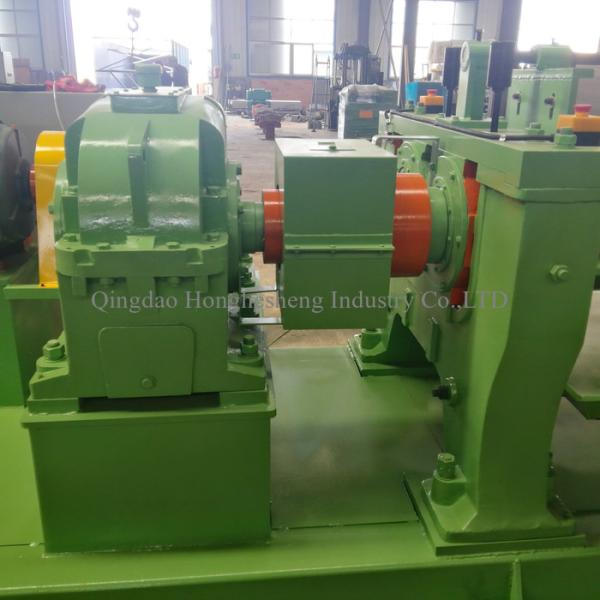

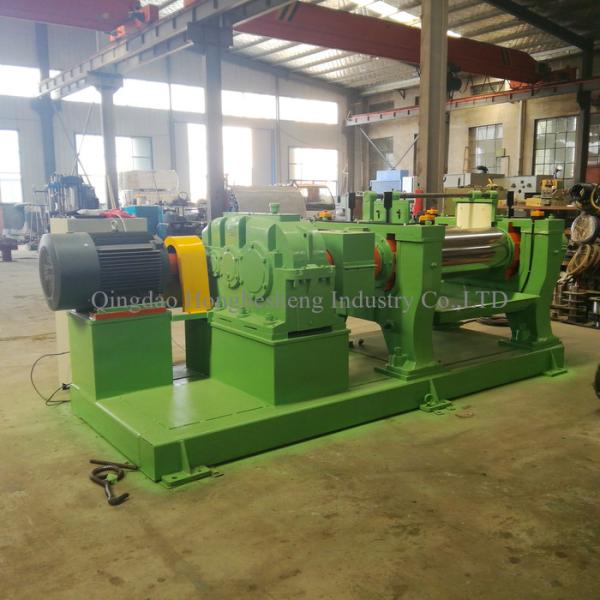

XK-450 open mixing mill
