360x900mm Cast Iron Rubber Sheet Open Mill Rubber Mixing Rubber Refiner Mill
360x900mm Cast Iron Rubber Sheet Open Mill Rubber Mixing Rubber Refiner Mill
360x900mm Cast Iron Rubber Sheet Open Mill Rubber Mixing Rubber Refiner Mill
360x900mm Cast Iron Rubber Sheet Open Mill Rubber Mixing Rubber Refiner Mill
360x900mm Cast Iron Rubber Sheet Open Mill Rubber Mixing Rubber Refiner Mill
360x900mm Cast Iron Rubber Sheet Open Mill Rubber Mixing Rubber Refiner Mill
360x900mm Cast Iron Rubber Sheet Open Mill Rubber Mixing Rubber Refiner Mill
360x900mm Cast Iron Rubber Sheet Open Mill Rubber Mixing Rubber Refiner Mill
Specifications
Brand Name :
honghesheng
Model Number :
XK450
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
USD25000-6000/SET
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200SETS/MONTH
Packaging Details :
wood package /20/40GP/HC
After-sales service provided :
Engineers available to service machinery overseas,Field installation,commissioning and training,Video technical support
Type :
Open Mixing Mill
Roller hardness :
50~60HRC
Bush :
nylon bush,bearing bush,ball bearing b
Voltage :
380V,Customer's Request,380V/50HZ,220/380V,AC380V
Power(w) :
37kw,4.5KW,20KW,5KW for lab two roll mill
Weight :
5200kgs,1000kg,2T
Dimension(l*w*h) :
1100*700*1200mm,1226x830x1295mm,1*1.1*1.4(M),1100*650*1500,1160*920 *1370mm
Warranty :
1 Year
Condition :
New
Description

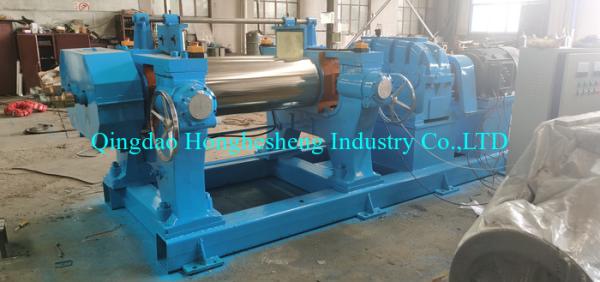

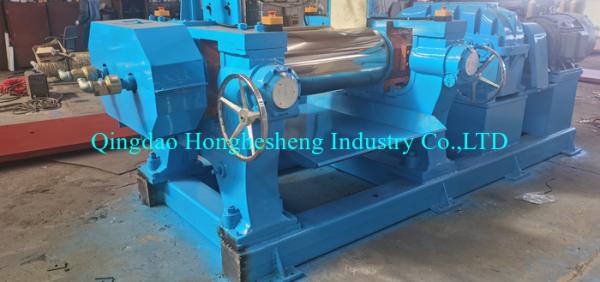

Cast Iron Rubber Sheet Open Roll Mill/Rubber Refiner/Rubber Mixing Mill

Application

Rubber mixing mill is used for mixing and kneading raw rubber, synthetic rubber, thermoplastics or E.V.A.with chemicals into final materials. The final materials can be fed to calender, hot presses or other processing machine for making rubber or plastic products
Model
XK-160
XK-250
XK-360
XK-400
Roll diameter
160
250
360
400
roll length
320
620
900
1000
batch capacity
4
15
30
40
front roll speed
10
16.96
16.22
18.78
roll speed ratio
1:1.21
1:1.08
1:1.22
1:1.17
motor
7.5
22
37
45
weight
1100kg
3200kg
6900kg
9500kg
model
xk-450
xk-560
xk-610
xk-660
roller diameter
450
560
610
660
roller length
1200
1530
2000
2130
batch capacity
55
90
150
210
front roll speed
21.1
25.8
28.4
29.8
roll speed ratio
1:1.17
1:1.17
1:1.18
1:1.09
motor
55
110
160
250
weight
12000kg
20000kg
26000kg
42000 kg
