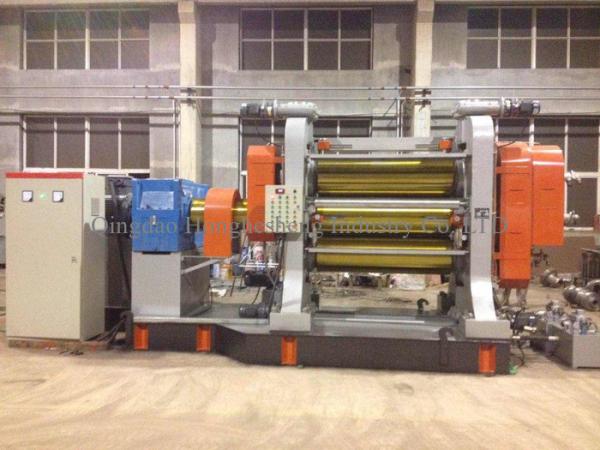

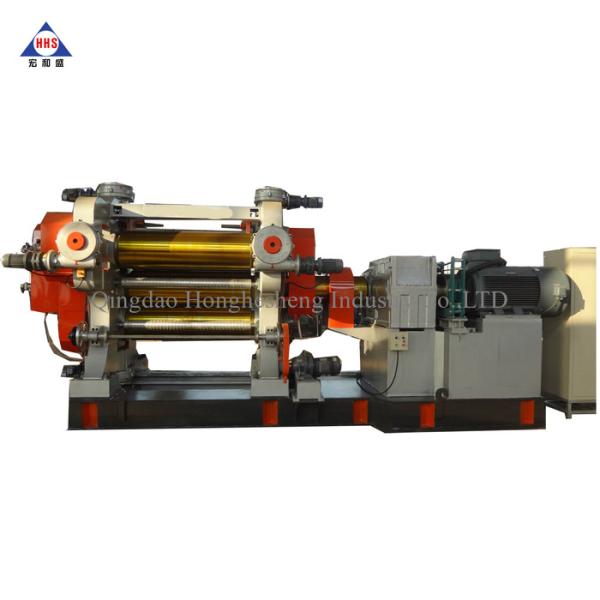

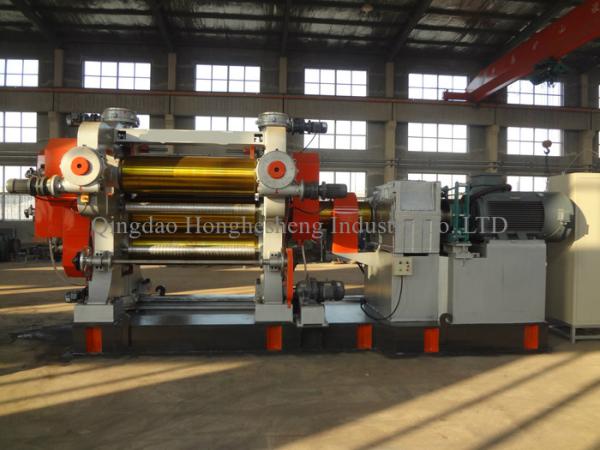

Four Roll PVC Calender Machine CE SGS ISO9001 Certified For Rubber
Four Roll PVC Calender Machine CE SGS ISO9001 Certified For Rubber
Four Roll PVC Calender Machine CE SGS ISO9001 Certified For Rubber
Four Roll PVC Calender Machine CE SGS ISO9001 Certified For Rubber
Four Roll PVC Calender Machine CE SGS ISO9001 Certified For Rubber
Four Roll PVC Calender Machine CE SGS ISO9001 Certified For Rubber
Four Roll PVC Calender Machine CE SGS ISO9001 Certified For Rubber
Four Roll PVC Calender Machine CE SGS ISO9001 Certified For Rubber
Four Roll PVC Calender Machine CE SGS ISO9001 Certified For Rubber
Four Roll PVC Calender Machine CE SGS ISO9001 Certified For Rubber
Specifications
Brand Name :
HHS
Model Number :
XY-3-630-2130
Certification :
ISO9001:2008/CE
Place of Origin :
Shandong, China
MOQ :
1 set
Price :
USD:3000-50000 /SET
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 sets/month
Delivery Time :
30 SETS/MONTH
Packaging Details :
wood package/20-40 gp
Condition :
New
Video outgoing-ins :
Provided
Warranty :
3 years
Core Components :
PLC, Engine, Gearbox, Motor, Gear, Pump
Dimension(L*W*H) :
3500*3200*2800mm
Weight (KG): :
8000 kg
Applicable Industries :
rubber machine
roll material :
chilled cast iron
Description

4 Roll Calender /PVC Calender Machine/Four Roll Rubber Calender


1- Name: Rubber calender, three-roll rubber calender,two roll rubber calender,four roll rubber calender.

2- Function: Make rubber sheet which need higest thickness quality.

3- Features:

A - The rolls are made of chilled cast iron with vanadium and titanium alloys. The roll face is hard and anti-wear. To heat up or cool down, the rolls are either circumferentially drilled or centrally bored so as to make temperature well proportioned on the roll surface.

B- The rolls are arranged in I, and L forms. The upper rolls have roll cambers that can eliminate bending impact on rolls during working process. Thus, it is possible to make products with same thickness along axial direction.

C- The transmission system adopts a hard facing gear reducer, which has a compacted structure with higher transmission efficiency, lower noise and longer service life.

D- The machine is equipped with emergency device. When an emergent accident occurs, the calendar will be immediately stopped to open the roll space so as to protect the operator and equipment.

4-Certification: CE,SGS,ISO9001

5-Main parameters:

Can be customized for you.

Model

Item

XY-4I 630

XY-4L 630

XY-4- 630

 XY-4-1120A XY-4-1400 XY -4-1500 XY-4-1730 XY-4-2130 XY-4-2430

Roller dia

 mm 230 360 400 450 610 710 810

Roller working length

 mm 630 1120 1400 1500 1730 2130 2430

Roller ratio

 1:1:1:1 0.73:1:1:0.73 1:1.38:1.38:1 1:1.5:1.5:1

1:1.4:1.4:1

1:1.4:1.4:1.4

 1:1.5:1.5:1 1:1.5:1.5:1

Middle –roll linear speed

 m/min 2.1-21 2-20.1 3-26.3 2.5-25 8-50 3-30 2-20

Adjusting range

 mm 0-10 0-10 0-10 0-6 20 0-20 0.5-25

Min.calendering product thickness

 mm 0.2 0.2 0.2 0.2 0.15 0.15 ±0.1

Calendering product width

 mm 100-500 500-920 1200 1250 1500 1900 2150

Motor power

 kW 15 55 75 110 160 185 280

Overall dimensions
