Specifications
Brand Name :
HHS
Model Number :
XJ380
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
USD6600/SET
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50SETS/MONTH
Delivery Time :
30 working days
Packaging Details :
wood package /20/40GP/HC
After-sales service provided :
Engineers available to service machinery overseas,Field installation,commissioning and training,Video technical support
Type :
Mooney Viscometer
Voltage :
220V/380V/450V
Power(w) :
3KW
Weight :
1000KG
Dimension(l*w*h) :
660*570*1300mm
Warranty :
2 Year
Condition :
New
Description

Mooney Viscometer/Rubber Mooney Viscosity Tester/Rubber Mooney Viscosity Meter

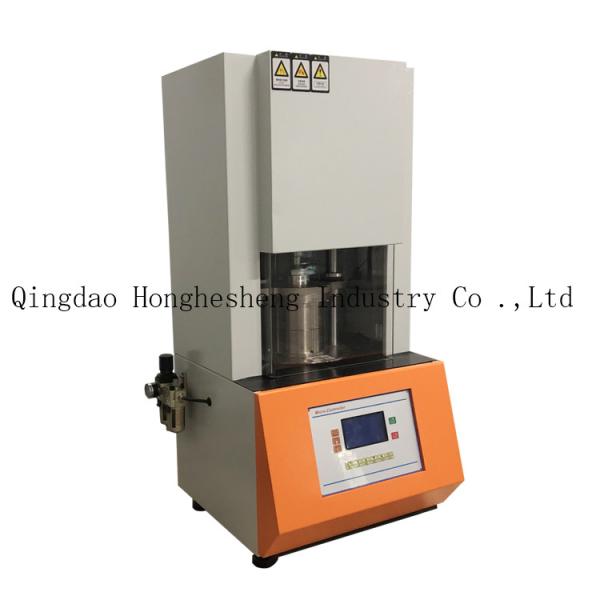

Mooney Viscometer

ST-MN2000 computer Mooney viscometer, the temperature measurement and control circuit consists of a measurement and control module, platinum resistance, and a heater, which can automatically track changes in the temperature of the power grid and the environment, and automatically modify PID parameters to achieve the purpose of fast and accurate temperature control. The data acquisition system and the electromechanical chain complete the automatic detection of the torque signal during the rubber test process, and automatically display the temperature value and the set value in real time. After vulcanization is completed, automatic processing, automatic calculation, printing Mooney, scorch curve and process parameters. The computer displays the test process in real time. From above, you can see the change of "temperature" and the change of "time-Mooney" at a glance. It is an indispensable instrument for the recycled rubber, rubber, wire and cable industries.

Features:
This instrument has the following characteristics:
1. High temperature control accuracy and wide range. (± 0.1 ℃)
2. Clock programming function. (Set and modify time)
3. Advanced switching power supply with wide voltage stabilization range.
4. Imported integrated circuits and control components.
5.The overall processing of the integrated cavity, the accuracy of several manufacturers assembled mold cavity several times.
6. The square hole of the main shaft is processed by high-precision slow wire-feeding.

specifications:

Product name Mooney Viscometer
Executive standards ISO289, HG / T3242-2005, GB / T1232.1-2000
Temperature control range normal temperature ~ 200 ℃
Temperature measurement accuracy ≤ ± 0.1 ℃
Control accuracy ≤ ± 0.3 ℃
Temperature resolution 0.01 ℃
Torque range 0-200 Mooney
Calibration accuracy 100 ± 0.1 Mooney value
Rotor speed 2 ± 0.02 rpm
Measurement time 0-200 minutes, resolution 1 second
Ambient temperature 0-35 ° C
Relative humidity <80%
Test pressure 11.5KN ± 0.5KN
Air pressure 0.45-0.6MPa
