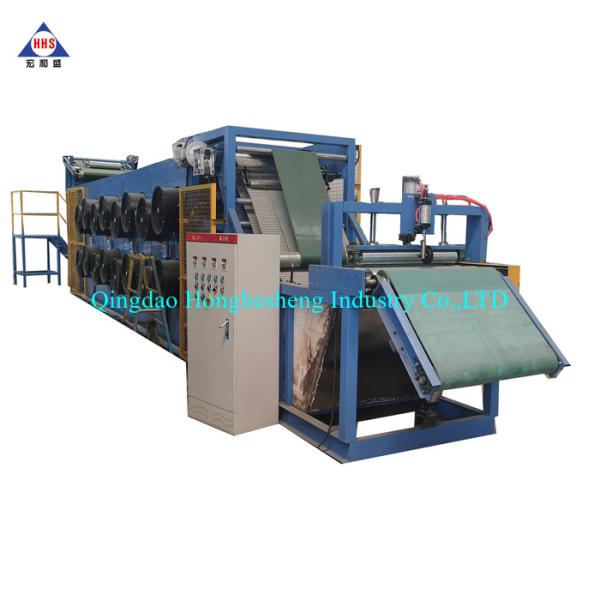

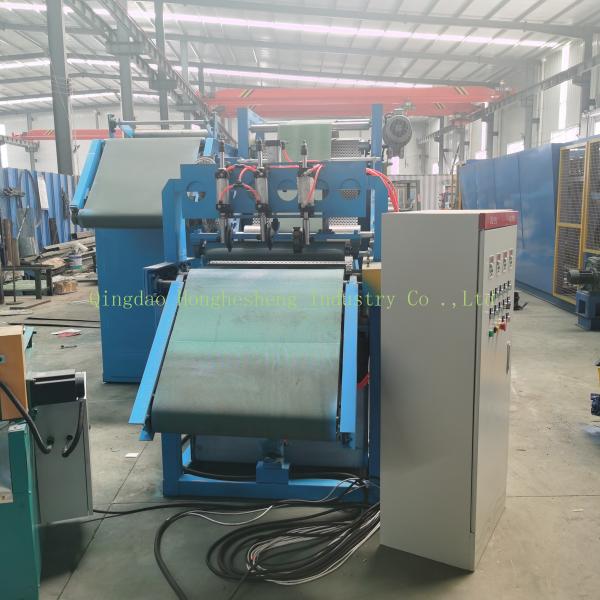

Rubber Sheet Batch Off Cooling Machine 3-35 M/Min Line Speed
Rubber Sheet Batch Off Cooling Machine 3-35 M/Min Line Speed
Rubber Sheet Batch Off Cooling Machine 3-35 M/Min Line Speed
Rubber Sheet Batch Off Cooling Machine 3-35 M/Min Line Speed
Rubber Sheet Batch Off Cooling Machine 3-35 M/Min Line Speed
Rubber Sheet Batch Off Cooling Machine 3-35 M/Min Line Speed
Rubber Sheet Batch Off Cooling Machine 3-35 M/Min Line Speed
Rubber Sheet Batch Off Cooling Machine 3-35 M/Min Line Speed
Rubber Sheet Batch Off Cooling Machine 3-35 M/Min Line Speed
Rubber Sheet Batch Off Cooling Machine 3-35 M/Min Line Speed
Specifications
Brand Name :
HHS
Model Number :
XPG-600
Certification :
ISO9001:2008
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD:8000-60000 /SET
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 sets/month
Delivery Time :
35 working days
Packaging Details :
wood package /20-40 container
Place Of Origin :
Shandong, China
Condition :
New
Voltage :
380V
Suitable sheet size :
600-900mm
Dimension(L*W*H) :
14850/18600*1880*3100mm
Weight :
20T
Warranty :
One Year
After-sales Service :
Engineers available to service machinery overseas
Power :
20-26kw
Color :
as customer require
Line speed :
5~25m/min
Maximum cutting :
450mm
Length tolerance of :
<3mm
Description

Rubber Sheet Batch Off Cooling Machine 3-35 M/Min Line Speed

Air-cooling Rubber Sheet Batch-off Machine/Hanging Type Batch-off Cooling System

1.Specification :

Item XPG-600 XPG-800 XPG-900
Max.rubber sheet width(mm) 600 800 900
The thickness of the rubber sheet(mm) 4-10 4-10 6-12

Rubber sheeting temperature over room

temperature after cooling

 5 5 5
Linear speed of taking-in conveyer(m/min) 3-35 3-35 3-35
Linear speed of sheet hanging bar(m) 1-1.26 1-1.26 1-1.26
Hanging height of the sheet hanging bar(mm) 1000 1200 1400
Number of cooling fans(Set) 12-16 20-32 24-32
Total power(kw) 16 20-26 25-35
Overall dimension(mm) 12400*2140*2820 (14850-18600)*2220*2860 (18000-21750)*2300*2980
About weight(t) 10 20 30

Rubber Sheet Batch Off Cooling Machine 3-35 M/Min Line SpeedRubber Sheet Batch Off Cooling Machine 3-35 M/Min Line SpeedRubber Sheet Batch Off Cooling Machine 3-35 M/Min Line SpeedRubber Sheet Batch Off Cooling Machine 3-35 M/Min Line SpeedRubber Sheet Batch Off Cooling Machine 3-35 M/Min Line SpeedRubber Sheet Batch Off Cooling Machine 3-35 M/Min Line Speed

Rubber Sheet Batch Off Cooling Machine 3-35 M/Min Line SpeedRubber Sheet Batch Off Cooling Machine 3-35 M/Min Line SpeedRubber Sheet Batch Off Cooling Machine 3-35 M/Min Line Speed

Rubber Sheet Batch Off Cooling Machine 3-35 M/Min Line Speed

Rubber Sheet Batch Off Cooling Machine 3-35 M/Min Line Speed

Rubber Sheet Batch Off Cooling Machine 3-35 M/Min Line SpeedRubber Sheet Batch Off Cooling Machine 3-35 M/Min Line Speed

Rubber Sheet Batch Off Cooling Machine 3-35 M/Min Line SpeedRubber Sheet Batch Off Cooling Machine 3-35 M/Min Line Speed
