90kw 200kw Waste Tyre Recycling Plant For Passenger Car / Truck Tires Shredding
90kw 200kw Waste Tyre Recycling Plant For Passenger Car / Truck Tires Shredding
90kw 200kw Waste Tyre Recycling Plant For Passenger Car / Truck Tires Shredding
90kw 200kw Waste Tyre Recycling Plant For Passenger Car / Truck Tires Shredding
90kw 200kw Waste Tyre Recycling Plant For Passenger Car / Truck Tires Shredding
90kw 200kw Waste Tyre Recycling Plant For Passenger Car / Truck Tires Shredding
Specifications
Brand Name :
honghesheng
Model Number :
ZPS-900/1200
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
USD:850-60000/SET
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 SETS/MONTH
Delivery Time :
30 working days
Packaging Details :
wood package /20-40GP/HC
Type :
tire shredder machine
Power(w) :
90kw~200kw
After-sales service provided :
Engineers available to service machinery overseas
Voltage :
380V/50HZ,Customer Request
Capacity :
More than 500kg per hour,200-4000kg/h,1500 kg/h
Year :
new
Raw material :
waste tire sealing sheet,rubber scraps,truck tire,car tire
Color :
customized
Discharge size :
50*50mm blocks
Tire size :
Max 1200mm
Description

TIRE RECYCLING PLANT ,passenger car and truck tires shredding

product Introduction

Direction for use of tyre shredding machines

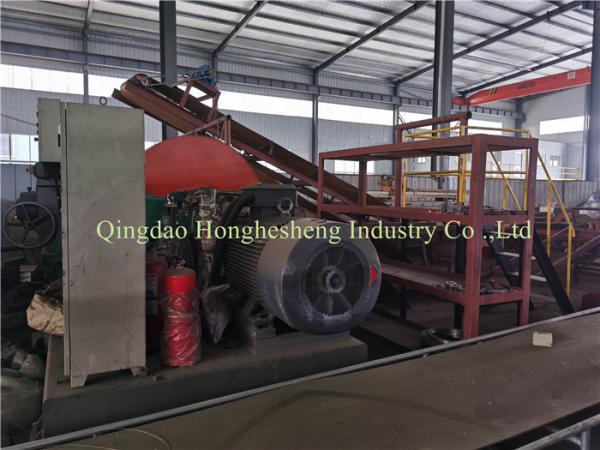

1. Double shaft shredder
Optimaʼs two shaft shredders are designed with an aggressive low RPM, high torque shredding technology. Each shaft is driven by its own Siemens motor, giving it plenty of power to drive through tyres and thick steel beads. The shredder blade thickness ranges from 25 mm to 152 mm (1’’-6”) depending on the type of tires, throughput, and desired end product. The shredder machine can process OTR tires, truck tires, and car tires at a rate of up to 10 tons per hour.
2. Grater
The Grater machine is the ultimate machine for mid-stream grinding and steel separation. It is specially designed to process pre-shredded tires chips and produce between 25-12 mm (1" - 0.5") wire free rubber mulch. And the Grater can process up to 6 tons of input per hour. The main rotor housing is equipped with replaceable wear plates to increase the durability and longevity of the cutting chamber. Another unique feature of this machine is the ability to turn the knives once before having to send them to be sharpened or replaced, minimizing operating costs.
3.Granulator
The Granulators are designed to grind the rubber mulch from the Grater into small granules as fine as 1 mm. The granules are screened and re-circulated until the desired size is reached. Due to the design of the Granulator and precise alignment of the blades, the Granulator produces a very uniform cut and high quality granule. During the granulation process, 99% of the fiber is removed, leaving a contaminant free crumb rubber granulate ready to be further processed or sold.
Product Parameter

Model
YX-600
YX-1400
Spindle power
4-15*2KW
4-55*2KW
Spindle speed
18-20r/min
14-35r/min
Capacity
2-3t/h
8-12t/h
Number of cutter pan
26
46
Diameter cutter pan
360
550
Broken size
3-10cm
3-10cm
Hopper size
820*900mm
2000*2000mm
Dimensions(mm)
2600*2000*1900
4300*1700*2400
Weight
2.5t
18t

90kw 200kw Waste Tyre Recycling Plant For Passenger Car / Truck Tires Shredding90kw 200kw Waste Tyre Recycling Plant For Passenger Car / Truck Tires Shredding

90kw 200kw Waste Tyre Recycling Plant For Passenger Car / Truck Tires Shredding

90kw 200kw Waste Tyre Recycling Plant For Passenger Car / Truck Tires Shredding

90kw 200kw Waste Tyre Recycling Plant For Passenger Car / Truck Tires Shredding

90kw 200kw Waste Tyre Recycling Plant For Passenger Car / Truck Tires Shredding

90kw 200kw Waste Tyre Recycling Plant For Passenger Car / Truck Tires Shredding

90kw 200kw Waste Tyre Recycling Plant For Passenger Car / Truck Tires Shredding

90kw 200kw Waste Tyre Recycling Plant For Passenger Car / Truck Tires Shredding90kw 200kw Waste Tyre Recycling Plant For Passenger Car / Truck Tires Shredding

90kw 200kw Waste Tyre Recycling Plant For Passenger Car / Truck Tires Shredding90kw 200kw Waste Tyre Recycling Plant For Passenger Car / Truck Tires Shredding
