15KW Waste Tiye Wire Removal Machine For Tyre Bead Ring Cutting
15KW Waste Tiye Wire Removal Machine For Tyre Bead Ring Cutting
15KW Waste Tiye Wire Removal Machine For Tyre Bead Ring Cutting
15KW Waste Tiye Wire Removal Machine For Tyre Bead Ring Cutting
15KW Waste Tiye Wire Removal Machine For Tyre Bead Ring Cutting
15KW Waste Tiye Wire Removal Machine For Tyre Bead Ring Cutting
15KW Waste Tiye Wire Removal Machine For Tyre Bead Ring Cutting
15KW Waste Tiye Wire Removal Machine For Tyre Bead Ring Cutting
Specifications
Brand Name :
honghesheng
Model Number :
xkp400-450-560
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
USD:4000-5000/SET
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 SETS/MONTH
Delivery Time :
30 working days
Packaging Details :
wood package /20-40GP/HC
Type :
Tire Machine,Rubber Cutting Machine,continuous type
Power(w) :
15kw
After-sales service provided :
Engineers available to service machinery overseas
Voltage :
380V/220V/450V
Year :
new
Dimension(L*W*H) :
1500X900X1300mm
Weight (KG) :
1000KG
End product :
traveler
Description

waste tire wire removing machine Tyre Bead Ring Cutter/Tire Wire Remover

Function:

Used to separate the steel wire from tire circle.

Operation principle:

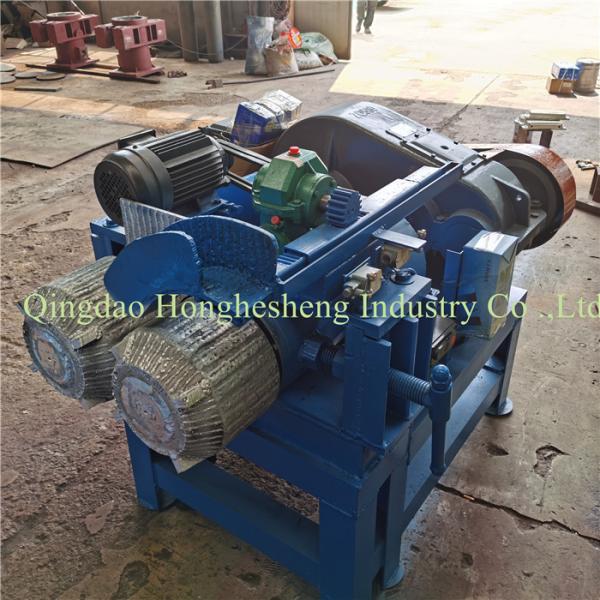

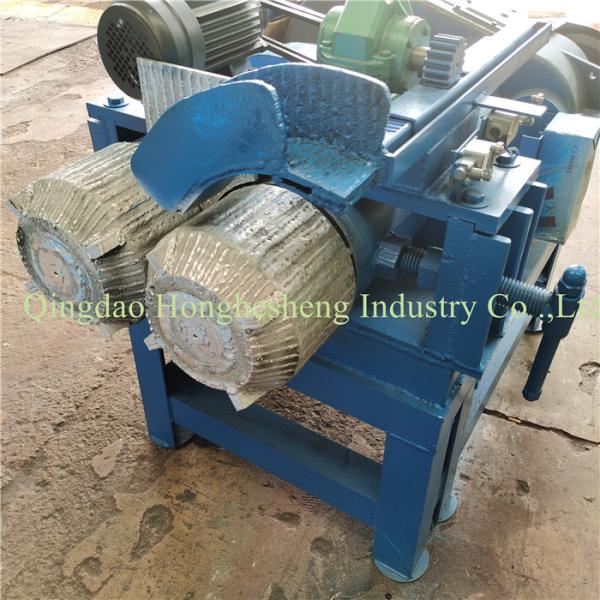

The main working part of this machine is two relative rotary roll shafts with the same speed. When tire circle cut into the middle of two rollers, it will be extruded by roll shaft, at the same time, be squeezed, Sheared and tear by the two relative rotary rollers. And finally complete the separation of the steel wheel by many times.

Paremeter

Item Name Waste tyre recycling machine old tyre bead separator steel wire separator
Productivity 120pcs/hour
Spindle Speed 95r/min
Powder 15KW
Dimension 1500×900 × 1400mm
Weight 1300KG

Waste tire/tyre recycling plant

This machine is used to produce the waste tyre into rubber powder or rubber crumb. It consists of rubber crusher, ring cutter, strip cutter, block cutter, steel wire separator, fiber separator, vibrating screen, conveyor belt, Magnetic separator. Through ring cutter, trip cutter, lock cutter, processing tyre into 3.5cm block. Second, using XKP-350/400/450/560 rubber crusher, it can be a colloidal. Then using rubber screen, magnetic plant and conveyer. Separate steel and powder. It can be made 5-40mesh powder.
