XKP-610 Tire Cracker Mill Rubber Crusher For Reclaimed Rubber Production
XKP-610 Tire Cracker Mill Rubber Crusher For Reclaimed Rubber Production
XKP-610 Tire Cracker Mill Rubber Crusher For Reclaimed Rubber Production
XKP-610 Tire Cracker Mill Rubber Crusher For Reclaimed Rubber Production
XKP-610 Tire Cracker Mill Rubber Crusher For Reclaimed Rubber Production
XKP-610 Tire Cracker Mill Rubber Crusher For Reclaimed Rubber Production
XKP-610 Tire Cracker Mill Rubber Crusher For Reclaimed Rubber Production
XKP-610 Tire Cracker Mill Rubber Crusher For Reclaimed Rubber Production
XKP-610 Tire Cracker Mill Rubber Crusher For Reclaimed Rubber Production
XKP-610 Tire Cracker Mill Rubber Crusher For Reclaimed Rubber Production
Specifications
Brand Name :
honghesheng
Model Number :
xkp450/560/610/830
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
USD:850-60000/SET
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 SETS/MONTH
Delivery Time :
30 working days
Packaging Details :
wood package /20-40GP/HC
Type :
Tire Machine,Rubber Cutting Machine,continuous type
Power(w) :
90kw~200kw
After-sales service provided :
Engineers available to service machinery overseas
Voltage :
380V/50HZ,Customer Request
Name :
Waste Tyre Recycling Machine Plant/ Used Tire Shreddere,Open mill tyre recycling reclaimed rubber plant
Capacity :
More than 500kg per hour,200-4000kg/h,1500 kg/h
Year :
new
Product name :
Rubber Tire Recycling Machinery
Function :
Tire Powder making Machine
Raw material :
waste tire scraps
End product :
rubber granules and powders,rubber granules/rubber powder,tire steel,tire fiber
Usage :
Used Tire Recyling,Waste Tyre Dispose
Description

XKP-610 Tire Cracker Mill / Rubber Crusher For Reclaimed Rubber Production

The tire crusher is one of the waste tire recycling line, our factory make two type recycling lines, semi-auto and full-auto, all of them are make the waste tire to rubber powder, to get reuse.

Semi-auto line: Full-auto line:

XKP-610 Tire Cracker Mill Rubber Crusher For Reclaimed Rubber Production XKP-610 Tire Cracker Mill Rubber Crusher For Reclaimed Rubber Production

Application:
For crude and fine breaking rubber black and waste collection.

Working Principle:

This machine is used for breaking, plasticating and mixing of rubber materials. The rollers are made of chilled cast iron with wear-resistant hard surface. The two rollers are grooved. The bored rolls can be cooled homogeneously through inputting steam and cooling water. The two rollers rotate reversely with different speed, so that rubber material can be processed.


Features:
Being made of cold hard alloy catiron, the roll wears well. He roll have 3 type: Double-channeled roll, single-channeled roll and double smooth roll.
The safety shut down in manual operation is set, with the function of automatic crawl back swing the roll.
Convenient range adjustment is set in manually operation. The whole machine adopts channel-bottom head for convenient carrying and maintance.

XKP-610 Tire Cracker Mill Rubber Crusher For Reclaimed Rubber Production

Structures:

It consists of motor, gear-down reducer, driving gears, speed-ratio gears, front and back rolls, bearings, frame, cover, bed plate, adjusting pin device, emergency stop device, roll temperature adjusting device, lubricating device and material plate, etc.

Technical Parameters

(Data will be as actural shipping)

Item XKP400 XKP450 XKP560 XKP610
Diameter of front roll(mm) 400 (smooth) 450(smooth) 560(smooth) 610
Diameter of back roll(mm) 400 (groove) 450(groove) 510(groove) 560
Working length(mm) 600 650 800 1000
Linear speed of front rollm/min) 17.32 23.2 25.56 28.1
Ratio 01:01.4 01:01.4 01:01.3 01:01.3
MAX gap(mm) 8 8 15 15
capacity(kg/h) 200-300 400-600 700-1000 1200
Motor power(kw) 45 55 75 125
Weight (kg) 7000 11000 19000 25000

Our factory has XP400/450/560/610/680/710/830...

We can design and manufacture different size based on your request and production capacity.

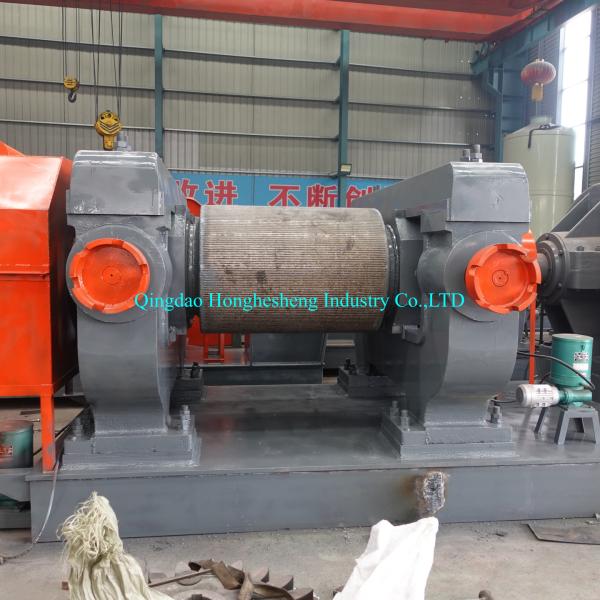

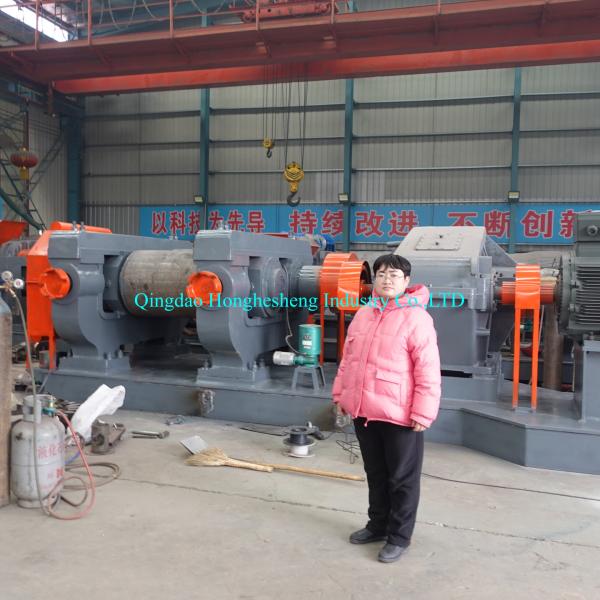

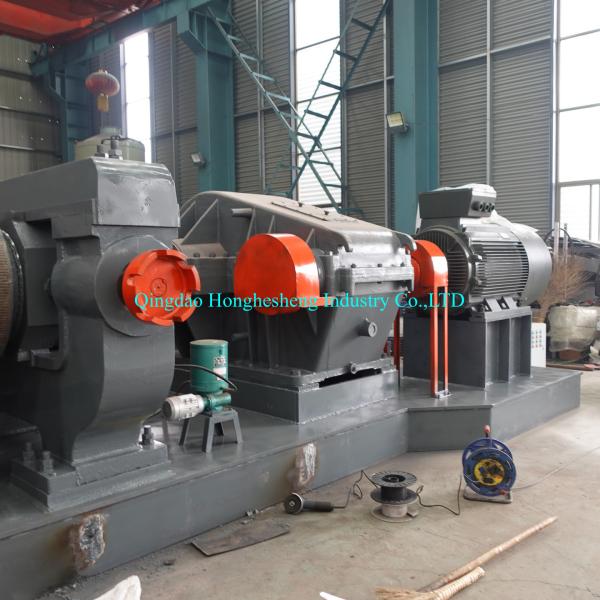

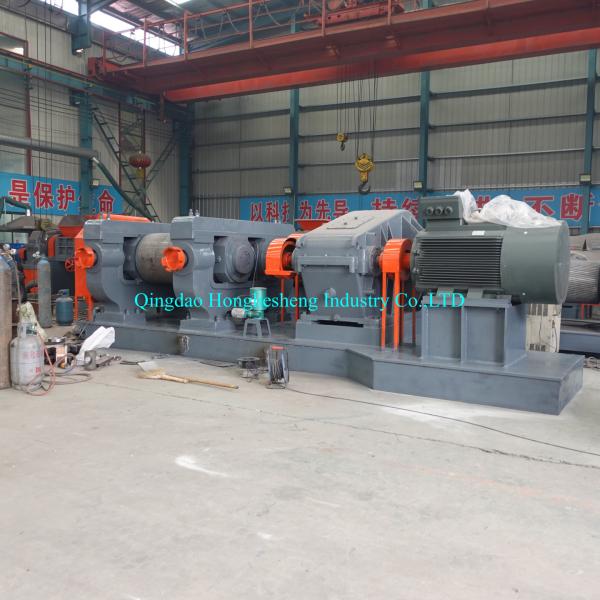

Detailed Pictures

XKP-610 Tire Cracker Mill Rubber Crusher For Reclaimed Rubber ProductionXKP-610 Tire Cracker Mill Rubber Crusher For Reclaimed Rubber ProductionXKP-610 Tire Cracker Mill Rubber Crusher For Reclaimed Rubber ProductionXKP-610 Tire Cracker Mill Rubber Crusher For Reclaimed Rubber ProductionXKP-610 Tire Cracker Mill Rubber Crusher For Reclaimed Rubber ProductionXKP-610 Tire Cracker Mill Rubber Crusher For Reclaimed Rubber ProductionXKP-610 Tire Cracker Mill Rubber Crusher For Reclaimed Rubber ProductionXKP-610 Tire Cracker Mill Rubber Crusher For Reclaimed Rubber Production

XKP-610 Tire Cracker Mill Rubber Crusher For Reclaimed Rubber Production

XKP-610 Tire Cracker Mill Rubber Crusher For Reclaimed Rubber ProductionXKP-610 Tire Cracker Mill Rubber Crusher For Reclaimed Rubber ProductionXKP-610 Tire Cracker Mill Rubber Crusher For Reclaimed Rubber Production
