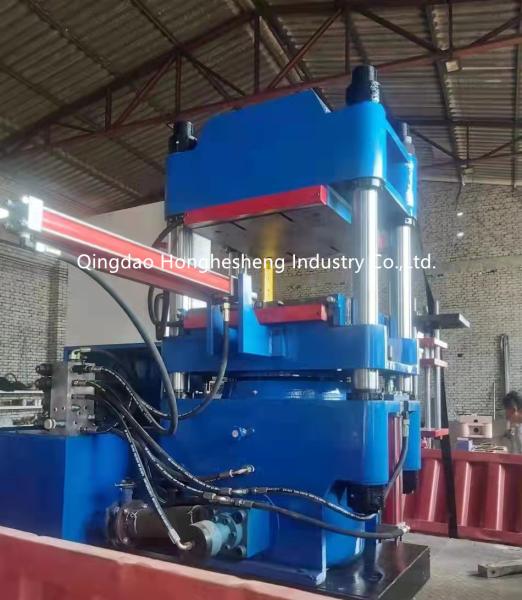

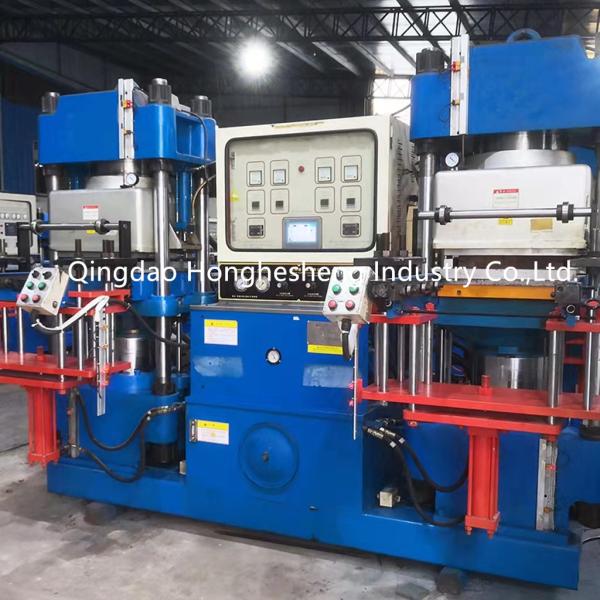

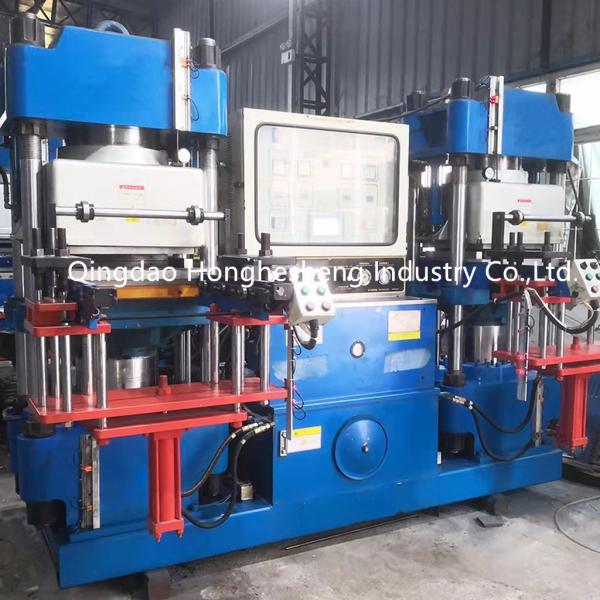

200-1000Ton Vacuum Compression Molding Machine for Rubber Gasket And Shock Absorber
200-1000Ton Vacuum Compression Molding Machine for Rubber Gasket And Shock Absorber
200-1000Ton Vacuum Compression Molding Machine for Rubber Gasket And Shock Absorber
200-1000Ton Vacuum Compression Molding Machine for Rubber Gasket And Shock Absorber
200-1000Ton Vacuum Compression Molding Machine for Rubber Gasket And Shock Absorber
200-1000Ton Vacuum Compression Molding Machine for Rubber Gasket And Shock Absorber
200-1000Ton Vacuum Compression Molding Machine for Rubber Gasket And Shock Absorber
200-1000Ton Vacuum Compression Molding Machine for Rubber Gasket And Shock Absorber
Specifications
Brand Name :
HHS
Certification :
CE
Place of Origin :
Qingdao Shangdong
MOQ :
1 set
Price :
USD 2000-20000
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60 sets/Year
Delivery Time :
30 working days
Packaging Details :
standard wood package or based on clients request
Type :
Vulcanizer
Colour :
blue / green / customized
Voltage :
customized
Power(W) :
7.5KW
Temperature :
300 degree
Working Layers :
1-4layers
Heating :
electricity , steam heating , conduction oil heating .
Weight :
7000 kg
advantage :
high production
Description

200-1000Ton Vacuum Compression Molding Machine To Make Rubber Gasket And Shock Absorber

Specific Characteristic:

  1. Vacuum capacity: able to achieve high degree of vacuum. A standard vacuum method is used to make consistently high quality products.
  2. Open the mold design: a new type of patent guide rail. Special design can be 90 degrees open angle, easy to operate.
  3. Mold handling design: in the mold handling agencies to join a special design. It is durable and quiet. Fast and outdated.
  4. Hydraulic System Design: The system uses high-pressure pump and low-pressure pump, which can shut down two presses at the same time. The system is less noise, stable performance, and long service life.
  5. Alignment: provide two different mold calibration speeds: fast and slow, the user can choose to use according to the actual situation. It makes calibration more secure and accurate.

2RT Machine motion flow:

1. Setup the mold (initial status)

2. Supply the material and start the process(close the mold)

3. Load the mold

4. The main ram goes up to the predetermined position ready for entering a state of vacuum

5. Lower the vacuum mask. At the same time, suck out the air until a state of vacuum is reached.

6. The main ram goes up. Increase the pressure to expel bubbles out.

7. After the state of vacuum exist mo more, lift the vacuum hood and curing.

8. After curing, lower the main ram.

9. Unload the mold, open the mold.

10. Take out the final product and put new material in.

Prameter For Reference

Specifications
HHS-200V
Platen Size(mm)
500*500
Plunger Stroke(mm)
300
Heating Plate Daylight(mm)
260
Main Machine Power(KW)
7.5
Dimensions(m)(L*W*H)
2.7*1.8*2.1
Reference Weight(Ton)
7
