SGS Rubber Strip Production Line , Conveyor Belt Vulcanizing Equipment
SGS Rubber Strip Production Line , Conveyor Belt Vulcanizing Equipment
SGS Rubber Strip Production Line , Conveyor Belt Vulcanizing Equipment
SGS Rubber Strip Production Line , Conveyor Belt Vulcanizing Equipment
SGS Rubber Strip Production Line , Conveyor Belt Vulcanizing Equipment
SGS Rubber Strip Production Line , Conveyor Belt Vulcanizing Equipment
Specifications
Brand Name :
SFC
Model Number :
XLB-1800X10000X2
Certification :
CE/ ISO/ SGS
Place of Origin :
Qingdao
MOQ :
1 set
Price :
Negotiable
Supply Ability :
3 sets per Month
Delivery Time :
30 Working Days
Packaging Details :
Standard Wooden Case
Type: :
Vulcanizing Press
Tons: :
20-8000T
Unit Pressure :
4 Mpa
Piston Diameter :
800mm
Piston Number :
18
After-sales Service :
Overseas service center available
Description

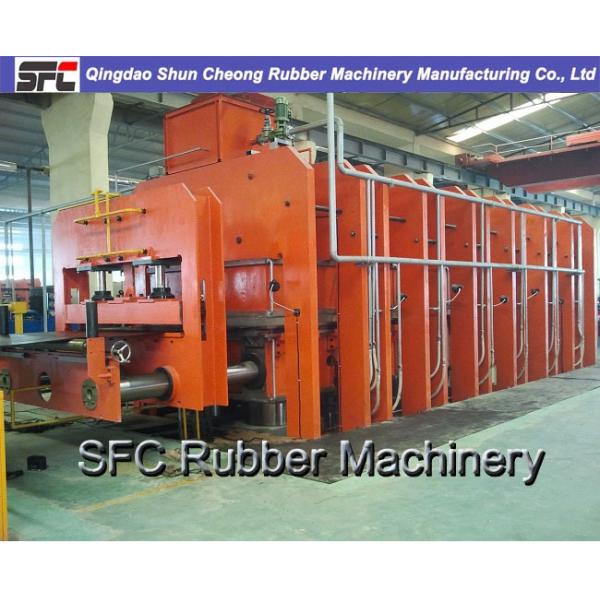

Conveyor Belt Making Machine / Rubber Conveyor Belt Vulcanizing Press

Application:

This conveyor belt vulcanizing machine is designed and manufactured by the user's requirements. For curing PVG conveyor belt, nylon conveyor belt , flat type fabric rubber conveyor belt.

Structure Overview
The machine is single working layer, steam heating, frame type vulcanizing press, mainly consisted by three major parts: the host, hydraulic system, and electric control system, a separate fuel tank installed on the host side, without the influence of hot plate temperature, electric cabinet mounted on a separate host other side.

Equipments Flow:

Cloth Liner Take-up Device→Loosening with Core→Roll Group(3 groups)→Front Hauling Device→Front Clamping and Stretching Device→Main Vulcanizing Press→Middle Clamping Device→Roll Group(3 groups)→Behind Clamping and Stretching→Behind Hauling Device→Repairing Press→Double Roll Wind Up Device.

SGS Rubber Strip Production Line , Conveyor Belt Vulcanizing Equipment

type

XLB-1400X5700X2

XLB-1400X10000X1

XLB-1600X10000X2

XLB-1800X8000X2

XLB-1800X12000X2

XLB-2000X10000X1

Plate size(mm)

1400X5700

1400X10000

1600X10000

1800X8000

1800X120000

2000X10000

Total pressure(MN)

25.00

49.00

56.00

51.00

74.00

70.00

Pressure unit of platen

3.13

3.5

3.5

3.54

3.4

3.5

Ram. Dia.

360

450

450

600

500

600

Ram number

10

20

18

12

18

16

Max. ram stroke(mm)

400

300

400

600

400

300

Clamping force(MN)

0.72

0.90

1.20

1.20

1.20

1.20

Tensioning force(MPA)

0.60

0.80

1.10

1.00

1.10

1.00

Steam pressure(MPA)

0.63

0.63

0.63

0.63

0.63

0.63

Pressure of cooling water(MPA)

0.3

0.3

0.3

0.3

0.3

0.3

Control system

PLC

PLC

PLC

PLC

PLC

PLC

About us--

QINGDAO SHUN CHEONG RUBBER MACHINERY MANUFACTURING CO., LTD

100% real manufacturer and factory

Our main products are plate vulcanizing press machine, two-roll mixing mill machine, rubber extruder machine, banbury intensive kneader machine, bale cutter machine, conveyer belt vulcanizing press machine, tyre retreading machines, rubber refiner machine, rubber cracker machine, batch-off etc. we make standard and non-standard machines by customer's requirements.

Machine types:

Column structure, frame structure, slabside structure, jaw structure

Pressure from 5 ton to 8000 tons

Heating plate Size from 100mm to 20000mm

Electric heating, oil heating, steam heating
