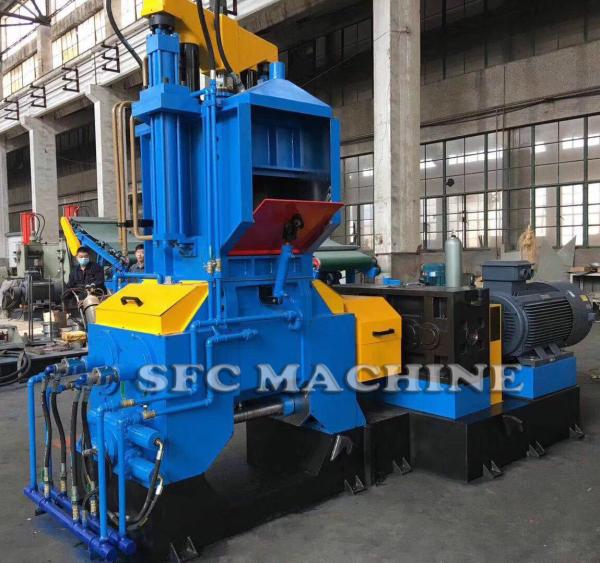

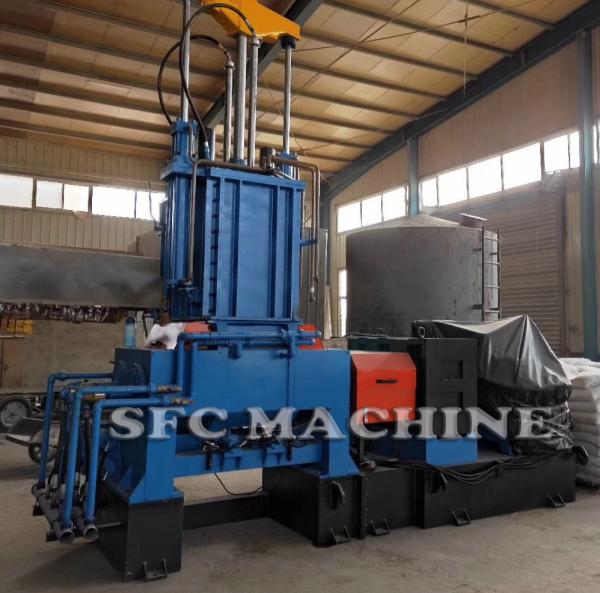

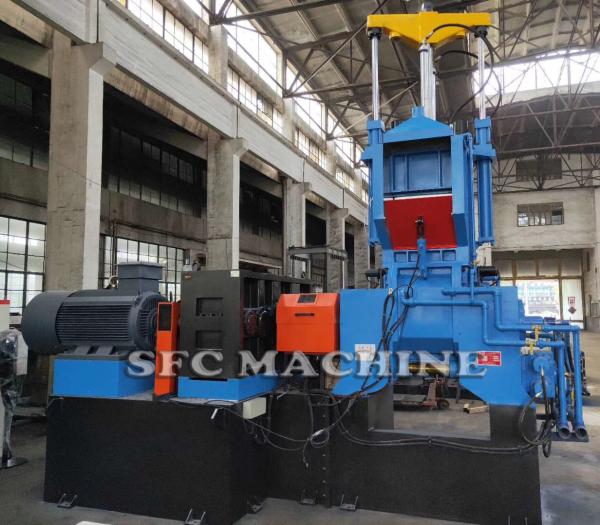

Drop Type Banbury Machine Rubber Mixer
Drop Type Banbury Machine Rubber Mixer
Drop Type Banbury Machine Rubber Mixer
Drop Type Banbury Machine Rubber Mixer
Drop Type Banbury Machine Rubber Mixer
Drop Type Banbury Machine Rubber Mixer
Drop Type Banbury Machine Rubber Mixer
Drop Type Banbury Machine Rubber Mixer
Drop Type Banbury Machine Rubber Mixer
Drop Type Banbury Machine Rubber Mixer
Specifications
Brand Name :
SFC
Model Number :
X(S)MX-50
Certification :
CE,ISO,SGS
Place of Origin :
CHINA
MOQ :
1 SET
Price :
US$20,000-70,000
Payment Terms :
T/T, L/C
Supply Ability :
50 SETS/MONTH
Delivery Time :
25 DAYS
Packaging Details :
Plywood Case Packaging
Condition :
New
Warranty :
12 months
After-sales service provided :
Engineers available to service machinery overseas,Field maintenance and repair service,Video technical support,Field installation
Color :
customization
Voltage :
Customer's Request
Power(w) :
110kw
Type :
Rubber Kneader,Rubber Mixer
Application :
plasticating and mixing rubber and plastic
Description

Environmental Cheaper Drop Type Rubber Compound Banbury Mixer

The new environmentally friendly banbury mixer is the most ideal new mixing equipment in the rubber and plastic industries. Its performance indicators have reached the domestic and foreign advanced levels, with advantage of advanced and reasonable design, compact structure, small space, easy installation, high mixing efficiency, uniform mixing and dispersion, fully closed structure, new sealing design, no rubber or powder leakage and environmental friendly etc.

Main Technical Parameters

Item

X(S)MX-50

X(S)MX-80

X(S)MX-110

X(S)MX-160

Total Volume

125L

170L

250L

350L

Working Volume

55L

80L

110L

160L

Rotor Type

Four Arrises Rotor

Transmission Direction

Left/Right Rotating

Rotor Rotating Speed

4~40 r/min

Rotor Speed Ratio

1:1.27

Main Motor Power

110KW

160KW

250KW

315KW

Main Motor

Rotating Speed

980r/min

Motor Type

Frequency Motor

Reducer Motor

ZSYF355

ZSYF400

ZSYF500

ZSYF500

Top Bolt Type

Double Cylinder Hydraulic Drive

Pressure of Top Bolt to Material

4~6 MPa

5~8 MPa

6~8 MPa

8~10 MPa

Hydraulic Pressure

2~10 MPa

2~10 MPa

2~10 MPa

2~12 MPa

Discharging Gate Type

Hydraulic Drive, Hydraulic Locking

Cooling Water Pressure

0.4~0.6MPa

Cooling Water

Consumption Volume

15m³/h

18m³/h

25m³ /h

25m³ /h

Weight

About 9.5Tons

About 11Tons

About 21Tons

About 23Tons

Application:

This banbury mixer is mainly used for plasticizing and mixing of natural rubber, synthetic rubber, reclaimed rubber and plastics, foaming plastics, and used in mixing of various the degree materials.

Drop Type Banbury Machine Rubber MixerDrop Type Banbury Machine Rubber MixerDrop Type Banbury Machine Rubber MixerDrop Type Banbury Machine Rubber MixerDrop Type Banbury Machine Rubber Mixer

Our Services

1. Our engineers can design target machines for customers and send them the drawing to confirm. We are always on the side of saving your cost.


2. In the process of production, we will take photos and send to customers for their track the progress.


3. Documents such as packing list, commercial invoice, and bill of lading etc. will be sent after the delivery.


4. We could supply free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing.


5. We supply overseas engineer service and help to train your workers to operate the machine.


Packaging & Shipping

Equipment painting completed before delivery, and then wrapped with stretch film, avoid rubbing the paint off the surface, wooden packaging can be customized, key parts, such as electronic control box, will be wrapped by shockproof packaging materials, and then packed in wooden cases.

Drop Type Banbury Machine Rubber Mixer


Drop Type Banbury Machine Rubber Mixer
