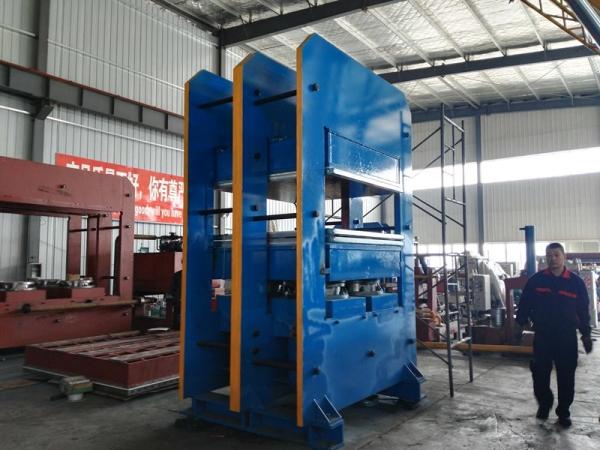

Animal Rubber Cushion Vulcanizing Machine
Animal Rubber Cushion Vulcanizing Machine
Specifications
Brand Name :
SFC
Model Number :
XQB
Certification :
CE,ISO9001:2008,SGS
Place of Origin :
China
MOQ :
1set
Price :
$5,800.00 - $40,000.00/ Set
Payment Terms :
L/C, T/T
Supply Ability :
100sets/month
Delivery Time :
30days
Packaging Details :
wooden cases or container
Description

animal rubber cushion vulcanizing machine

Parameter:

We can design and manufacture various Rubber vulcanization press according to your specific requirements.

Type XLB-DQ1200× 1200× 2 XLB-DQ1300× 2000× 1 XLB-Q1200× 2500× 1 XLB-Q1500× 2000× 1 XLB-Q2000× 3000× 1 XLB-Q1400× 5700× 1
Total pressure(MN) 315t 560t 750t 1000t 1800t 2800t
Platen size(mm) 1200× 1200 1300× 2000 1200× 2500 1500× 2500 2000× 3000 1400× 5700
Daylight (mm) 200 400 400 400 400 400
No of Daylights 2 1 1 1 1 1
Piston stroke(mm) 400 400 400 400 400 400
Plate Unit Area pressure(kg/cm2) 22 21.5 25 33.5 30 35
Main motor power(kw) 3 8 9.5 11 26 43.5
Overall dimension(L× W× H) (mm) 1685× 1320× 2450 2000× 1860× 2500 2560× 1700× 2780 2810× 1550× 3325 2900× 3200× 2860 2400× 5800× 3600
Weight(kg) 9500 17000 20000 24000 66000 110000



Animal Rubber Cushion Vulcanizing Machine

Animal Rubber Cushion Vulcanizing Machine
Features:

1. All the plates, frame plate, upper and lower beams adopt Q235 steel plates, firstly welded together, then after annealing treatment and eliminating welding stress guaranteeing the whole press won't have any deformation during working.

2. Pistons are made of dense-texture chilled casted iron and then after careful grinding.

3. In order to ensure the plates balanced rising, this press will be fixed with synchronization gear mechanism in the host.

4. For the press structure, our engineer suggests the structure in side-plate one. This kind of structure is of large bearing capacity, not easily deformed, easy installation and transportation to your country.

5. This press is configured with automatic hydraulic push-pull mold device driven by hydraulic cylinder. In this case, the press will be of very high working efficiency. And the hydraulic cylinder's material is casted steel.

6. Control Panel: PLC automatic control, touch screen having automatic control and manual control two control methods; Automatic mode can realize automatically mold close, exhaust, vulcanizing timing, fill pressure, vulcanized alarms and automatic mold open and other functions.

7. Plates heating mode is steam or oil heating mode.

8. Hydraulic components and electrical appliances adopt imported or domestic brands to ensure stable performance.
